Panduit BT3I-M | Cable Ties
Regular price
$199.63
Unit price
Brand: Panduit
|
SKU:
PAN-BT3I-M
Regular price
$199.63
Unit price
Description
Description

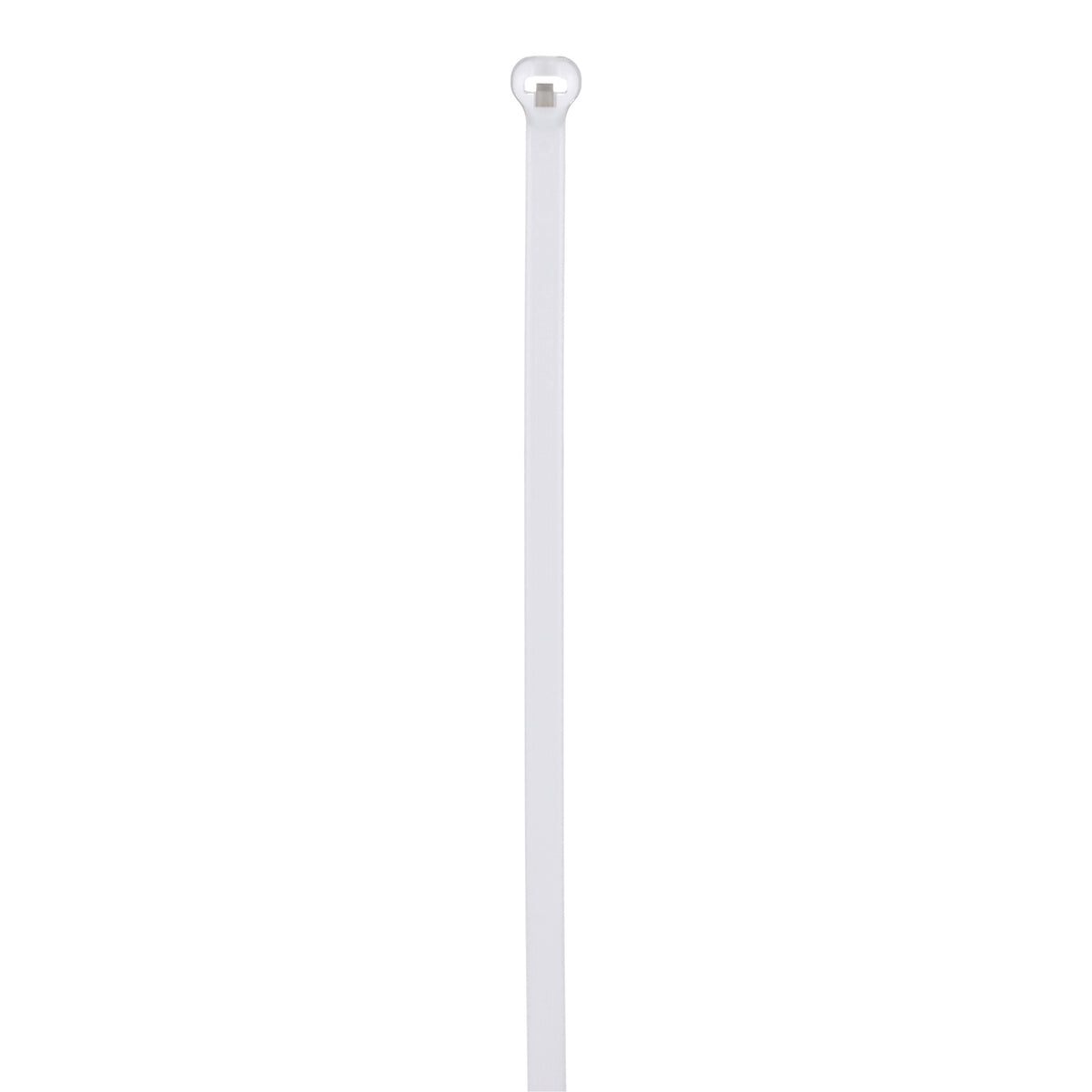

Panduit BT3I-M | Cable Ties
Panduit Barb-Ty Dome-Top Cable Tie, Intermediate Plenum Rated, Series: BT Series, 11.3 in Length, 0.14 in Width, 0.05 in Thickness, 3 in Bundle Dia, Locking, 40 lb Tensile, -76 to 185 deg F, Nylon 6.6, Natural
Panduit - BT3I-M - Features
- The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Dome-Top head having smooth, round edges is easy for installers to handle
- Low threading force reduces operator fatigue and improves productivity
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - BT3I-M - Specifications
| Product Type | Cable Ties |
|---|---|
| Color | Natural |
| Environment | Indoor |
| Sub Brand | Dome-Top |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 3 |
| Maximum Bundle Diameter (mm) | 76 |
| Maximum Installation Temperature (°C) | 0 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498341370 |
