Panduit BT3LH-TL | Dome-Top BT3LH-TL Cable Tie

Name: Panduit BT3LH-TL | Dome-Top BT3LH-TL Cable Tie
Brand: Panduit
SKU: 242724
Price: 137.41 USD
Availability: InStock

$137.41

Shipping calculated at checkout.

Description

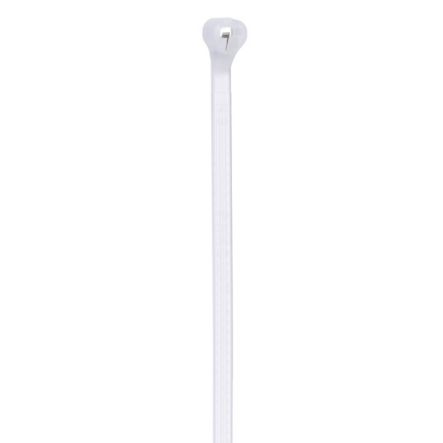

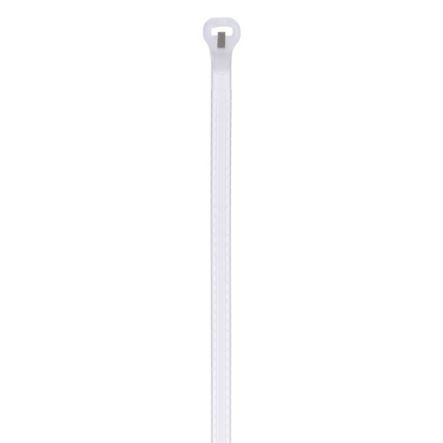

Dome-Top barb ty cable tie, light-heavy cross section, 11.8 (300mm) length, nylon 6.6, natural, bulk package.

For indoor use

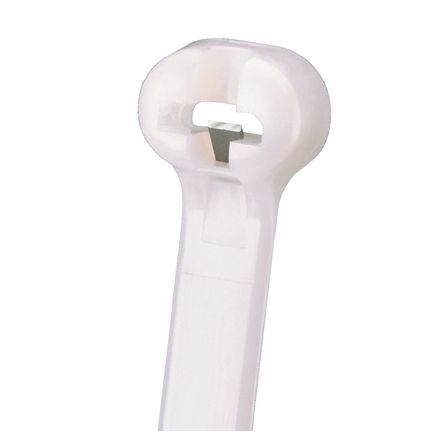

Dome-top head features unique patented design with round, smooth edges
Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
High strength and low thread forceÃ"urved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)

Brand Name	Panduit
Manufacturer Part Number	BT3LH-TL
Item Description	Dome-Top BT3LH-TL Cable Tie
Product Type	Cable Tie
Sub Brand	Dome-Top
Color	Natural
Environment	Plenum
Material	Nylon 6.6
Overall Length (In.)	11.8
Overall Length (mm)	300
Body Width (In.)	0.275
Body Width (mm)	7
Body Thickness (In.)	0.065
Body Thickness (mm)	1.7
Maximum Bundle Diameter (In.)	3
Maximum Bundle Diameter (mm)	76.2
Minimum Bundle Diameter (In.)	0.19
Minimum Bundle Diameter (mm)	4.8
Minimum Loop Tensile Strength (N)	534
Minimum Loop Tensile Strength (lb)	120
Maximum Operating Temperature (°C)	85
Maximum Operating Temperature (°F)	185
Minimum Operating Temperature (°C)	-60
Minimum Operating Temperature (°F)	-76
Minimum Installation Temperature (°C)	-20
Minimum Installation Temperature (°F)	-4
Standards Met	UL 62275 (File E56854), CSA-C22.2 No. 62275, 11130200, NRC 10CFR50, QPL-AS23190, CSA Certified, RoHS Compliant
For Use With	GTH-E, GS4H-E, GS4EH-E, STH2, ST3EH, STHV, PTH
Application	General
