Brand: Panduit
|
SKU:
236309

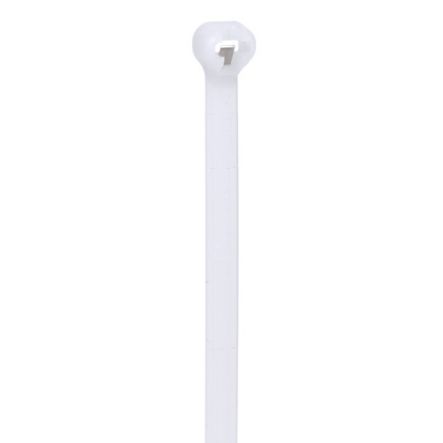

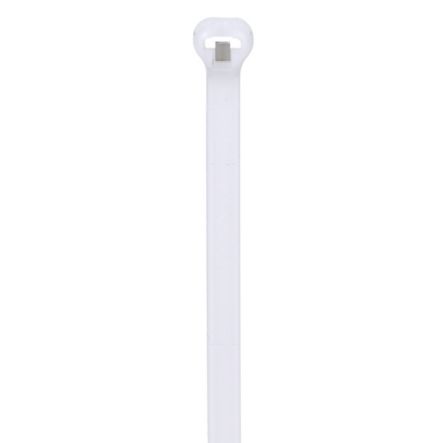

Panduit BT4I-M | Dome-Top BT4I-M Barb Tie, PA6.6, 14.3"L, 40lb, PK1000
Regular price
$311.51
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BT4I-M | Dome-Top BT4I-M Barb Tie, PA6.6, 14.3"L, 40lb...
Regular price
$311.51
Unit price
Description
Description
Panduit BT4I-M | Dome-Top BT4I-M Barb Tie, PA6.6, 14.3"L, 40lb, PK1000
The BT4I-M Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Intermediate cross section, 14.3" (363mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit - BT4I-M - Features
- For indoor use

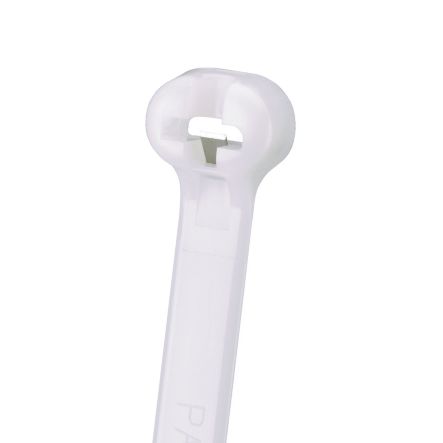

- Dome-top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread forceÃ"urved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BT4I-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BT4I-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT4I-M |
| Item Description | Dome-Top BT4I-M Barb Tie, PA6.6, 14.3"L, 40lb, PK1000 |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 14.3 |
| Overall Length (mm) | 363 |
| Body Width (In.) | 0.141 |
| Body Width (mm) | 3.6 |
| Body Thickness (In.) | 0.049 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.03 |
| Minimum Bundle Diameter (mm) | 0.8 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H; 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
Panduit - BT4I-M - Package Information
| UPC | 07498341377 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2670 |
| Standard. Ctn. Quantity | 10000 |
| Standard. Ctn. Volume (cf) | 2.6700 |
