Panduit BT4M-C0 | Cable Tie | UPC - 07498360274
Description
Description
The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range. high loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity. this comprehensive product line offers several styles, materials and colors for a broad range of applications that require high strength and superior performance.
Panduit Dome-Top Barb-Ty Cable Tie, Miniature Cross Section, Series: BT Series, 14.2 in Length, 0.1 in Width, 0.05 in Thickness, 4 in Diameter Bundle, Lock Mechanism: Locking, 18 lb Tensile Strength, -70 to 185 deg F, Nylon 6.6, Black
Features + Benefits

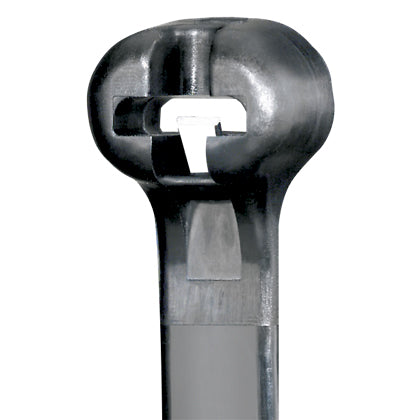

- Dome-Top head features unique patented design with round, smooth edges
- Greater resistance to damage caused by ultraviolet light indoor or outdoor use
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread force
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
- Weather resistant nylon 6.6
Panduit BT4M-C0 | Cable Tie | UPC - 07498360274 Key Specs
| Product Type | Cable Tie |
| Color | Black |
| Environment | Indoor/Outdoor |
| Sub Brand | Dome-Top |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Material | Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Maximum Installation Temperature (°C) | 0 |
| Maximum Installation Temperature (°F) | 32 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Minimum Operating Temperature (°C) | -60 |
Panduit BT4M-C0 | Cable Tie | UPC - 07498360274 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - BT1M-CO Product Page | Download and View |
| Part Drawings | BT-0037-Sheet1 | Download and View |
| Product Bulletins | Dome-Top Barb Ty Cable Ties CTCB55--WW | Download and View |
Panduit BT4M-C0 | Cable Tie | UPC - 07498360274 Environmental Information
| Panduit's RoHS Statement | Download and View |
