Brand: Panduit
|
SKU:
341967
Panduit BT4M-M | Dome-Top Bt4M-M Barb Tie, Pa6.6, 14.2"L, 18Lb, Pk1000
Regular price
$130.96
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BT4M-M | Dome-Top Bt4M-M Barb Tie, Pa6.6, 14.2"L, 18Lb...
Regular price
$130.96
Unit price
Description
Description
Panduit BT4M-M | Dome-Top Bt4M-M Barb Tie, Pa6.6, 14.2"L, 18Lb, Pk1000

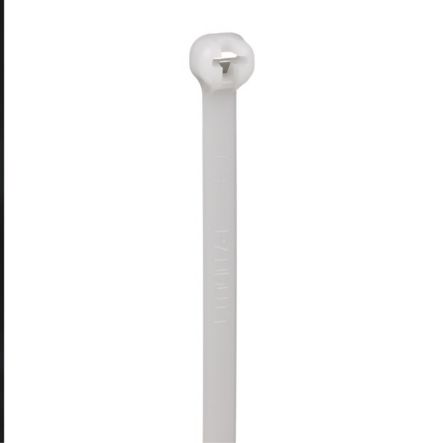

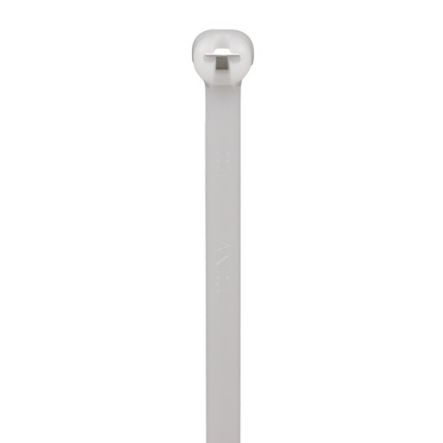

Dome-Top barb ty cable tie, miniature cross section, 14.2 (361mm) length, nylon 6.6, natural, bulk package.
Panduit - BT4M-M - Features
- For indoor use

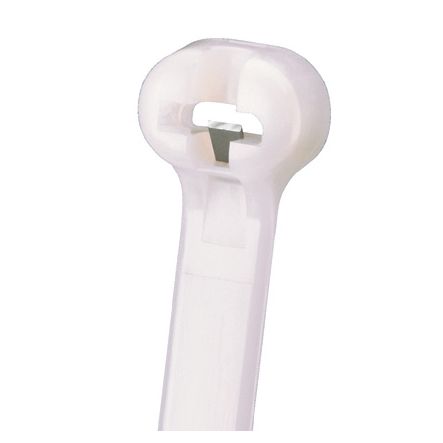

- Dome-top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread forceÃ"urved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BT4M-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BT4M-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT4M-M |
| Item Description | Dome-Top Bt4M-M Barb Tie, Pa6.6, 14.2"L, 18Lb, Pk1000 |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Plenum |
| Material | Nylon 6.6 |
| Overall Length (In.) | 14.2 |
| Overall Length (mm) | 361 |
| Body Width (In.) | 0.095 |
| Body Width (mm) | 2.4 |
| Body Thickness (In.) | 0.046 |
| Body Thickness (mm) | 1.2 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant |
| For Use With | GTS-E, GS2B-E, STS2 |
| Application | General |
Panduit - BT4M-M - Package Information
| UPC | 07498360276 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.1957 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 1.9571 |
Panduit - BT4M-M - Videos
| Video 1 | Click to View |
|---|
