Panduit BT4S-M0 | Dome-Top Barb Tie, Black, UV PA6.6, 15.1"L, ...
Description
Description
Secure your cables smoothly and reliably with our cable tie. Its patented design and stainless-steel barb offer consistent performance, adjustability, and weather resistance.
The BT4S-M0 Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 15.1’ (384mm) length. Appropriate for Indoor/Outdoor use, made of Weather-resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 1000.
Panduit Barb-Ty Dome-Top Cable Tie, Standard, Series: BT Series, 15.1 in Length, 0.19 in Width, 0.05 in Thickness, 4 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Panduit - BT4S-M0 - Features
- The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity

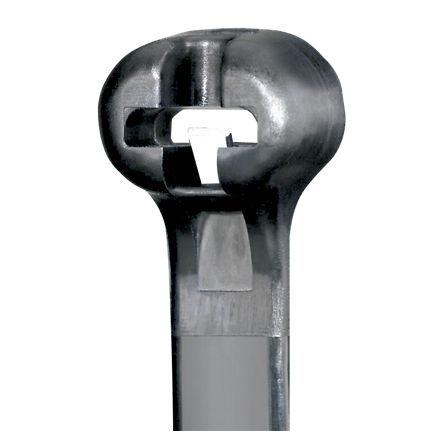

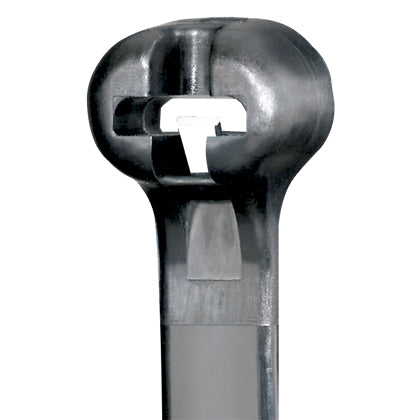

- Dome-Top head having smooth, round edges is easy for installers to handle
- Low threading force reduces operator fatigue and improves productivity
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
- Greater resistance to damage caused by ultraviolet light - indoor or outdoor use
- Dome-top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread force
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BT4S-M0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT4S-M0 |
| Cable Tie Diameter | 14" |
| Type | Cables Ties And Accessories |
| UNSPSC Code | 39121703 |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 15.1 |
| Overall Length (mm) | 384 |
| Body Width (In.) | 0.185 |
| Body Width (mm) | 4.7 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| UPC | 07498341243 |
Panduit - BT4S-M0 - Videos
| Panduit BT4S-M0 Video 1 | Click to View |
|---|
