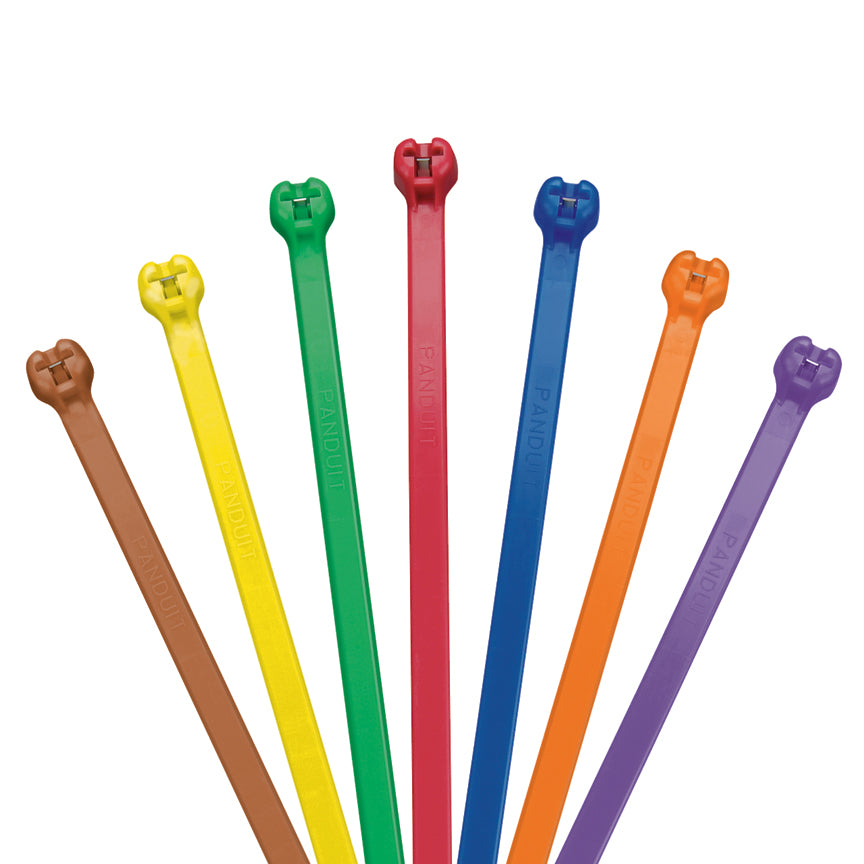

Panduit BT4S-M2 | Dome-Top® Barb Ty Cable Tie
Description
Description
Panduit Barb-Ty Dome-Top Cable Tie, Plenum Rated Standard, Series: BT Series, 15.1 in Length, 0.19 in Width, 0.05 in Thickness, 4 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Red
Secure your cables smoothly and reliably with our cable tie. Its patented design and stainless-steel barb offer consistent performance, adjustability, and weather resistance.
The BT4S-M2 Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Standard cross section, 15.1’ (384mm) length. Appropriate for Indoor use, made of Nylon 6.6, are red in color and come in packages of 1000.
Panduit - BT4S-M2 - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- The 2-piece design incorporates a stainless steel locking barb which provides infinite adjustability through entire bundle range
- High loop tensile strength exceeds industry standards and the patented low thread force design reduces operator fatigue and improves productivity
- Dome-Top head having smooth, round edges is easy for installers to handle
- Low threading force reduces operator fatigue and improves productivity
- Ribbed and stippled strap body prevents axial and lateral movement
- Exclusively designed finger grip assures positive grip during threading of tie
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - BT4S-M2 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Complaint |
| Material Description | Nylon 6.6 () |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top® |
| Color | Red |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 15.1 |
| Overall Length (mm) | 384 |
| Body Width (In.) | 0.185 |
| Body Width (mm) | 4.7 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 102 |
| Minimum Bundle Diameter (In.) | 0.06 |
| Minimum Bundle Diameter (mm) | 1.5 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| UPC | 07498341246 |
Panduit - BT4S-M2 - Package Information
| UPC | 07498341246 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.3914 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.9571 |
