Brand: Panduit
|
SKU:
PAN-BT9LH-C
Panduit BT9LH-C | Dome-Top Bt9Lh-C Barb Tie, Pa6.6, 30.7"L, 120Lb, Pk100
Regular price
$128.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit BT9LH-C | Dome-Top Bt9Lh-C Barb Tie, Pa6.6, 30.7"L, 12...
Regular price
$128.41
Unit price
Description
Description

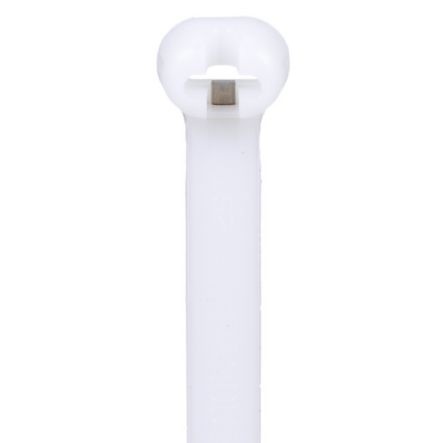

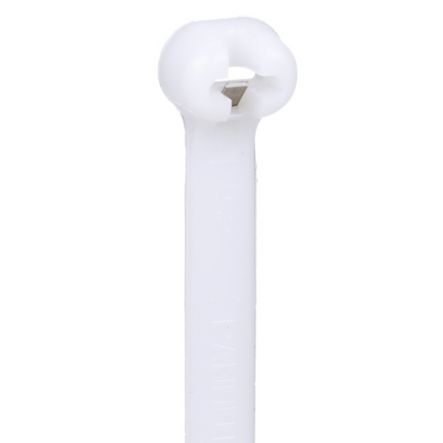

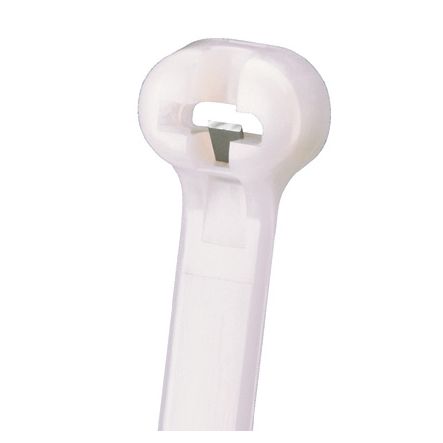

Panduit BT9LH-C | Dome-Top Bt9Lh-C Barb Tie, Pa6.6, 30.7"L, 120Lb, Pk100
The BT9LH-C Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless-steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Light-Heavy cross section, 30.7" (780mm) length. Appropriate for Indoor use, made of Nylon 6.6, are natural in color and come in packages of 100.
Panduit - BT9LH-C - Features
- For indoor use
- Dome-top head features unique patented design with round, smooth edges
- Stainless steel locking barb provides consistent performance, reliability and infinite adjustability through entire bundle range
- High strength and low thread forceÃ"urved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation (Light-Heavy cross section ties have a straight tip)
Specifications
Specifications
Panduit - BT9LH-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BT9LH-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT9LH-C |
| Item Description | Dome-Top Bt9Lh-C Barb Tie, Pa6.6, 30.7"L, 120Lb, Pk100 |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 30.7 |
| Overall Length (mm) | 780 |
| Body Width (In.) | 0.275 |
| Body Width (mm) | 7 |
| Body Thickness (In.) | 0.065 |
| Body Thickness (mm) | 1.7 |
| Maximum Bundle Diameter (In.) | 9 |
| Maximum Bundle Diameter (mm) | 229 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant |
| Military Cross Reference Number | MS3367-6-9 |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
Panduit - BT9LH-C - Package Information
| UPC | 07498341299 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1453 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 1.4527 |
Panduit - BT9LH-C - Videos
| Video 1 | Click to View |
|---|
