Panduit BT9LH-C0 | Dome-Top BT9LH-C0 Barb Tie, Black, UV PA6.6, 30....
Description
Description

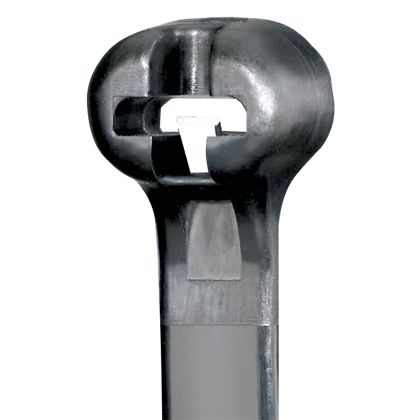

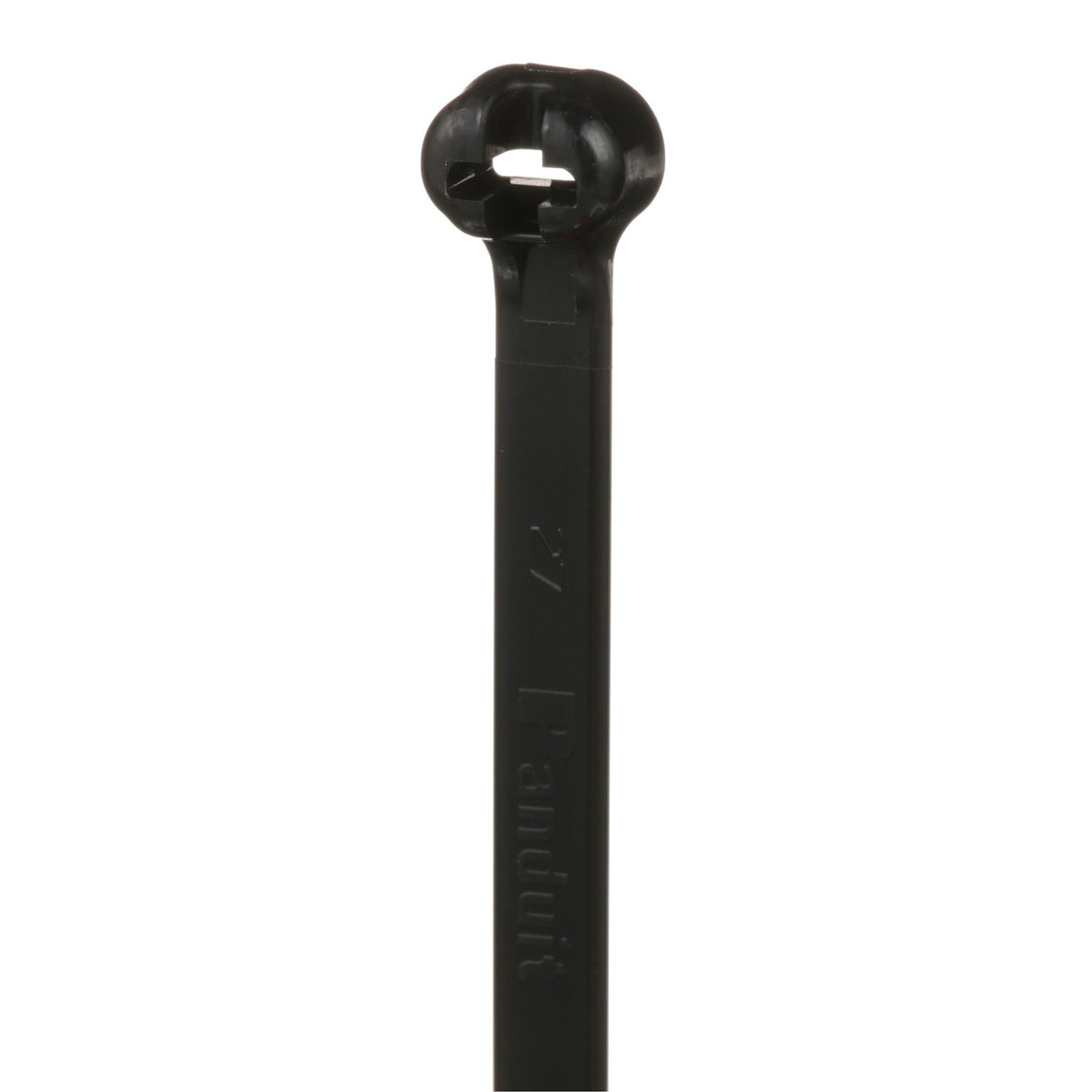

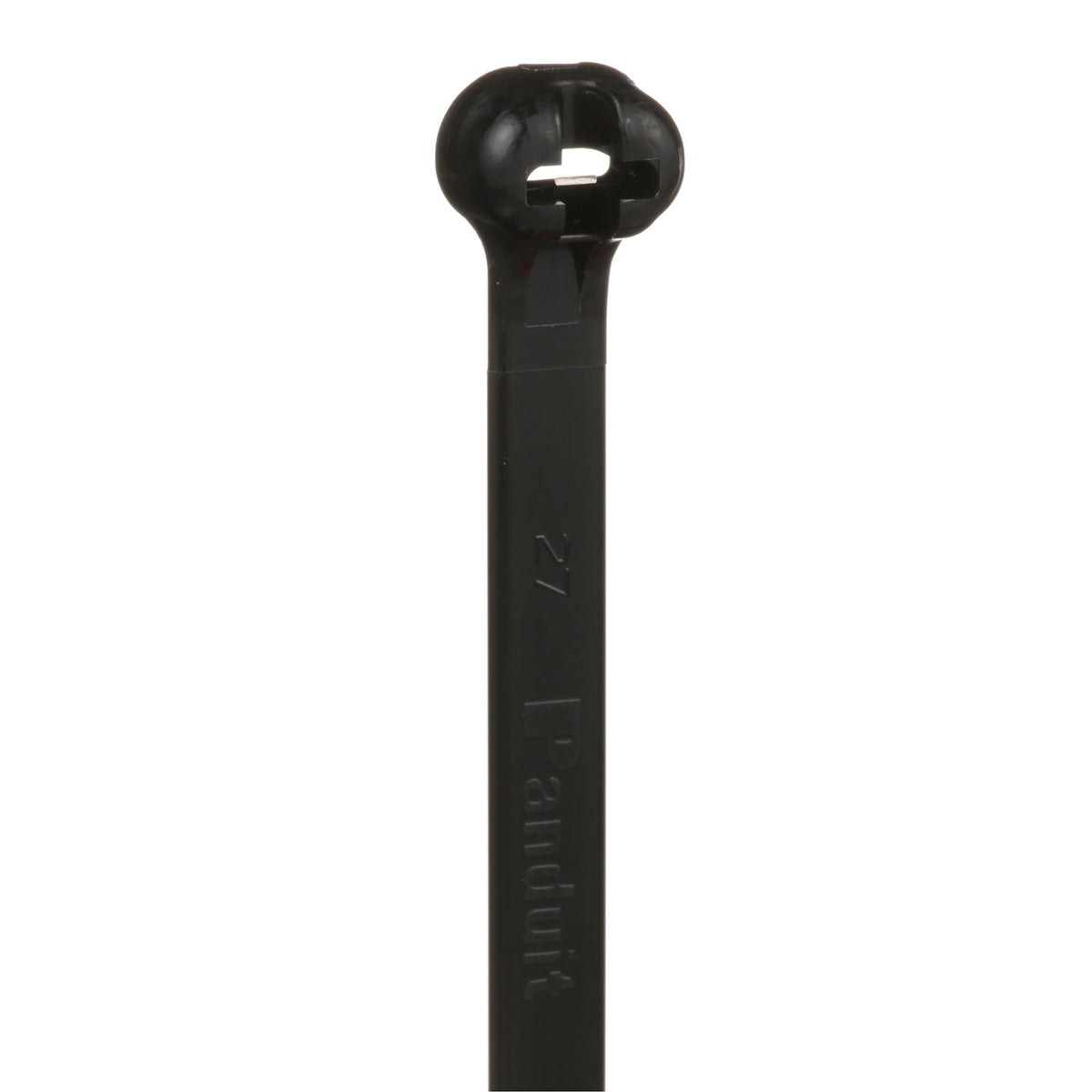

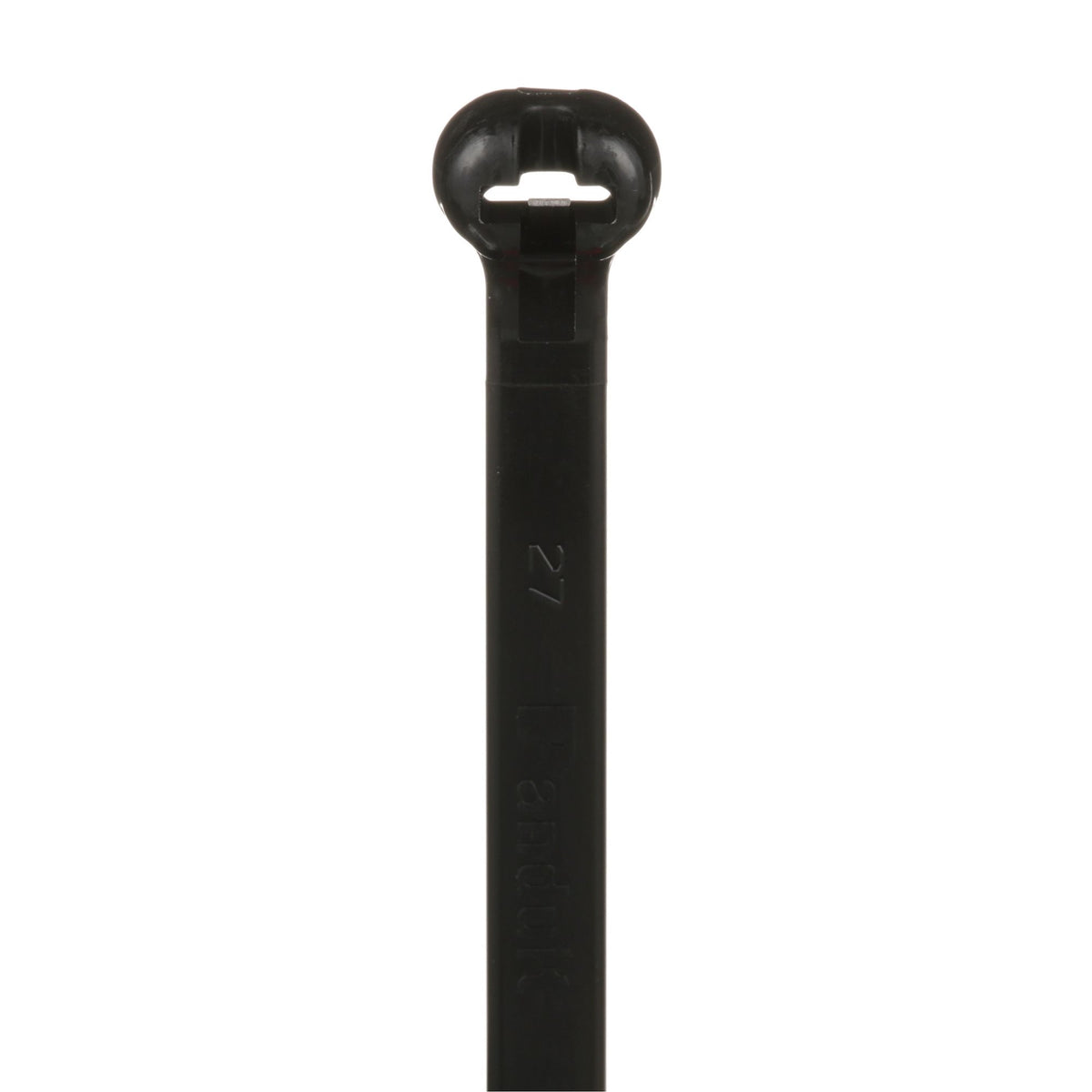

The BT9LH-C0 Dome-Top barb ty, features a unique patented design with its round smooth edges. Paired with the stainless steel locking barb, these cable ties provide consistent performance, reliability and infinite adjustability through the entire bundle range. Light heavy cross section 30.7" (780mm). Appropriate for Indoor/Outdoor use, made of Weather Resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 100.
Panduit BT9LH-C0 Cable Tie, Dome-top Barb Ty, Ligtht-heavy Cross Section, 30.7 (780mm) Length, Weather-resistant Nylon 6.6, Black, Pack Of 100
Specifications
Specifications
Panduit - BT9LH-C0 - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - BT9LH-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | BT9LH-C0 |
| Item Description | Dome-Top BT9LH-C0 Barb Tie, Black, UV PA6.6, 30.7"L, 120lb, PK100 |
| Product Type | Cable Tie |
| Sub Brand | Dome-Top |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Weather Resistant Nylon 6.6 |
| Resistance Properties | UV Resistant |
| Overall Length (In.) | 30.7 |
| Overall Length (mm) | 780 |
| Body Width (In.) | 0.275 |
| Body Width (mm) | 7 |
| Body Thickness (In.) | 0.065 |
| Body Thickness (mm) | 1.7 |
| Maximum Bundle Diameter (In.) | 9 |
| Maximum Bundle Diameter (mm) | 229 |
| Minimum Bundle Diameter (In.) | 0.188 |
| Minimum Bundle Diameter (mm) | 4.8 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | UL 62275 (File E56854), CSA-C22.2 No. 62275 (File 31212), Cert 05968/C0, BV File ACE 14/601/01 Product Code: 2535H, 89/60111 (E3), 11130200, QPL-AS23190, RoHS Compliant |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
Panduit - BT9LH-C0 - Package Information
| UPC | 07498341300 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1453 |
| Standard Ctn. Quantity | 1000 |
| Standard Ctn. Volume (cf) | 1.4527 |
Panduit - BT9LH-C0 - Videos
| Video 1 | Click to View |
|---|
