Brand: Panduit
|
SKU:
C1BL6
Panduit C1BL6 | Covers duct to protect wires, improve aesthetics and provides greater wire capacity.
Regular price
$10.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit C1BL6 | Covers duct to protect wires, improve aesthetics an...
Regular price
$10.81
Unit price
Brand: Panduit
|
SKU:
C1BL6
Panduit C1BL6 | Covers duct to protect wires, improve aesthetics and provides greater wire capacity.
Regular price
$10.81
Unit price
Shipping calculated at checkout.
Description
Description

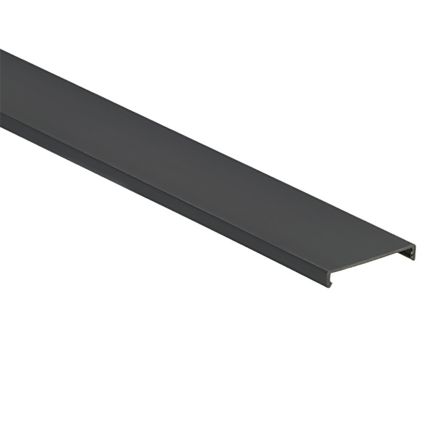

Panduit C1BL6 | Panduct C1BL6 Flush Duct Cover
The C1BL6 PVC Flush Wiring Duct Cover features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.35" x 1.25" (8.9 mm x 31.8 mm) and 6' (1.83 m) long. Color Black.
Panduit - C1BL6 - Features
- Non-slip cover design incorporates integral high friction lining to inhibit cover movement
- Cover flush with base provides greater wire capacity and improves aesthetics
- Easy cover removal makes changes to wiring quick and easy
- Available in various colors
Specifications
Specifications
Panduit - C1BL6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - C1BL6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | C1BL6 |
| Item Description | Panduct C1BL6 Flush Duct Cover |
| Application | Cover for Wiring Duct |
| Product Type | Flushed Duct Cover |
| Sub Brand | Panduct |
| Color | Black |
| For Use With | Type G, Type F, Type D and Type FS Duct Base |
| Material | PVC |
| Standards Met | UL Recognized; Flammability Ratings: UL94 V-0; CE Compliant; CSA Certified; RoHS Compliant |
| Compatible Duct Width (In.) | 1 |
| Compatible Duct Width (mm) | 25.4 |
| Overall Height (In.) | 0.35 |
| Overall Height (mm) | 8.9 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 1.25 |
| Overall Width (mm) | 31.8 |
| Mount Method | Snap-on |
| Wiring Duct Style | Flush Cover |
| Part Features | Cover with non-slip liner to prevent cover slide, flush cover design. Designed for easy install and removal. PVC Lead-free material |
Panduit - C1BL6 - Package Information
| UPC | 07498323039 |
|---|---|
| Standard Pkg. Qty. | 6 |
| Standard Package Volume (cf) | 0.0213 |
| Standard Ctn. Qty. | 120 |
| Standard Ctn. Volume (cf) | 0.4264 |
