Panduit C2LG6 | Panduct C2LG6 Flush Duct Cover
Regular price
$14.69
Unit price
Brand: Panduit
|
SKU:
FB-C2LG6-C
Regular price
$14.69
Unit price
Description
Description

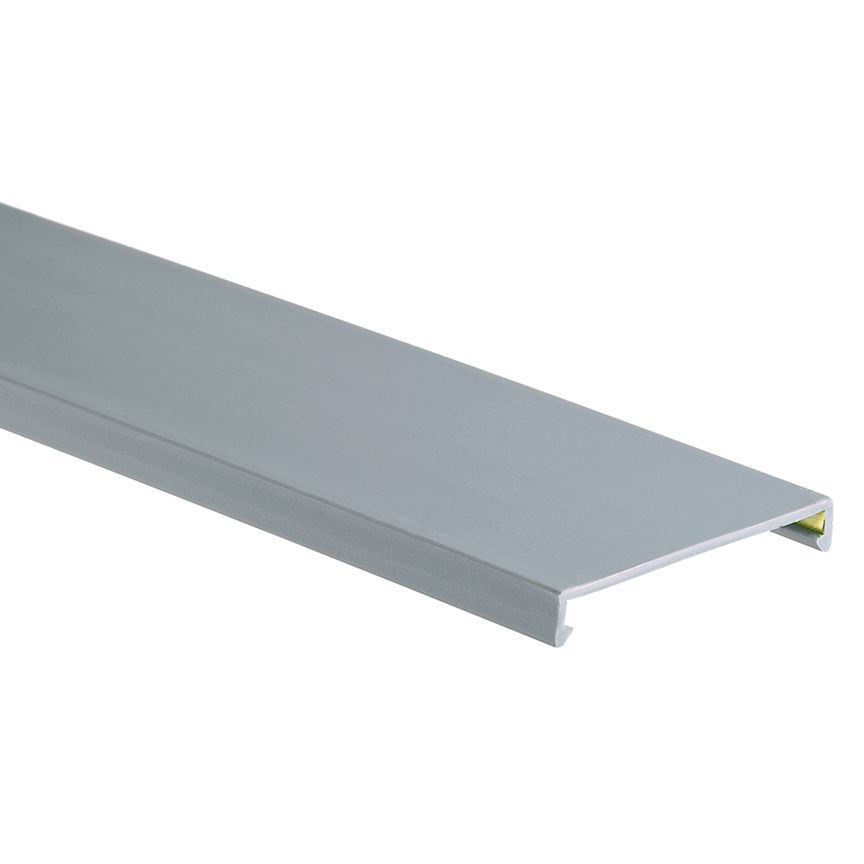

Panduit C2LG6 | Panduct C2LG6 Flush Duct Cover
The C2LG6 PVC Flush Wiring Duct Cover features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.35" x 2.25" (8.9 mm x 57.2 mm) and 6' (1.83 m) long. Color Light Gray.
Specifications
Specifications
Panduit - C2LG6 - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - C2LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | C2LG6 |
| Item Description | Panduct C2LG6 Flush Duct Cover |
| Application | Cover for Wiring Duct |
| Note | Base and Cover Sold Separately. |
| Product Type | Flushed Duct Cover |
| Sub Brand | Panduct |
| Color | Light Gray |
| For Use With | Type G, Type F, Type D and Type FS Duct Base; PanelMax Corner Wiring Duct |
| Material | PVC |
| Material Properties | Lead-Free |
| Standards Met | UL Recognized; Flammability Ratings: UL94 V-0; CSA Certified; CE Compliant; RoHS Compliant |
| Compatible Duct Width (In.) | 2 |
| Compatible Duct Width (mm) | 50.8 |
| Overall Height (In.) | 0.35 |
| Overall Height (mm) | 8.9 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Mount Method | Snap-On |
| Wiring Duct Style | Flush Cover |
| Part Features | Cover with non-slip liner to prevent cover slide, flush cover design. Designed for easy install and removal. PVC Lead-free material |
Brand Name - C2LG6 - Package Information
| UPC | 07498323080 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0271 |
| Standard Ctn. Quantity | 120 |
| Standard Ctn. Volume (cf) | 0.5422 |
