Panduit C2LG6 | Panduct Flush Duct Cover
Description
Description

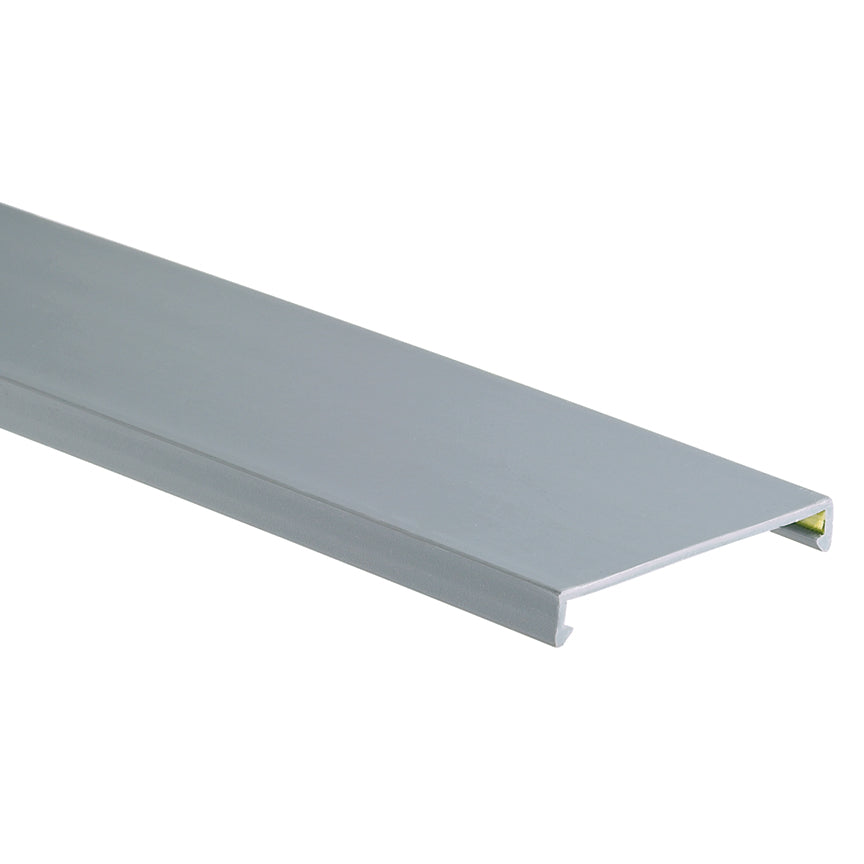

Our flush wiring duct cover creates a sleek, professional finish while securely fastening to wiring ducts, preventing accidental movement.
The C2LG6 PVC Flush Wiring Duct Cover features a non-slip, liner to prevent cover slide. Designed with the user in mind, the cover is easy to install and remove. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122F (50C). Lead-free PVC. 0.35" x 2.25" (8.9 mm x 57.2 mm) and 6’ (1.83 m) long. Color Light Gray. 6 per package.
Panduit Panduct Wiring Duct Cover, Lead Free, Series: C Series, 6 ft Length, 2.29 in Width, 0.35 in Height, 0.06 in Thickness, Snap-On Mount, For Use With: Type F, G, D, FS and MC Wiring Duct, PVC, Light Gray
Panduit - C2LG6 - Features
- Cover with non-slip liner to prevent cover slide, flush cover design
- Designed for easy install and removal
- Non-slip cover design incorporates integral high friction lining to inhibit cover movement
- Cover flush with base provides greater wire capacity and improves aesthetics
- Easy cover removal makes changes to wiring quick and easy
- Available in various colors
Specifications
Specifications
Panduit - C2LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | C2LG6 |
| Components | Covers |
| Material | Plastic |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Note | Base and Cover Sold Separately. |
| Product Type | Flushed Duct Cover |
| Sub Brand | Panduct |
| Application | Cover for Wiring Duct |
| Color | Light Gray |
| For Use With | Type G, Type F, Type D and Type FS Duct Base; PanelMax Corner Wiring Duct |
| Material | PVC |
| Material Properties | Lead-Free |
| Standards Met | UL Recognized; Flammability Ratings: UL94 V-0; CSA Certified; CE Compliant; RoHS Compliant |
| Compatible Duct Width (In.) | 2 |
| Compatible Duct Width (mm) | 50.8 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 2.25 |
| Overall Width (mm) | 57.2 |
| Overall Height (In.) | 0.35 |
| Overall Height (mm) | 8.9 |
| Mount Method | Snap-On |
| Wiring Duct Style | Flush Cover |
| Part Features | Cover with non-slip liner to prevent cover slide, flush cover design. Designed for easy install and removal. PVC Lead-free material |
| UPC | 07498323080 |
Panduit - C2LG6 - Videos
| Panduit C2LG6 Video 1 | Click to View |
|---|---|
| Panduit C2LG6 Video 2 | Click to View |
