Panduit C3LG6-F | Panduct C3LG6-F Flush Duct Cover
Description
Description

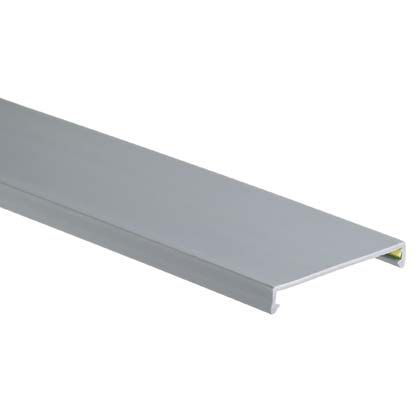

The C3LG6-F PVC Flush Wiring Duct Cover with Protective Film features a temporary protection film that protects duct covers from damage during the installation process. The cover features a non-slip, liner to prevent cover slide. The general-purpose lead-free PVC material is suitable for use in indoor applications. UL 94 flame class of V-0 with a UL recognized continuous-use temperature up to 122°F (50°C). 0.37" x 3.25" (9.4 mm x 82.6 mm) and 6' (1.83 m) long. Color Light Gray.
Specifications
Specifications
Panduit - C3LG6-F - Product Categories
- Wire Routing, Management & Protection
- Wiring Duct & Duct Covers
Panduit - C3LG6-F - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | C3LG6-F |
| Item Description | Panduct C3LG6-F Flush Duct Cover |
| Application | Cover for Wiring Duct with protective film to protect the surface during storage, handling, andinstallation. |
| Note | Base and Cover Sold Separately. |
| Product Type | Flushed Duct Cover |
| Sub Brand | Panduct |
| Color | Light Gray |
| For Use With | Type G, Type F, Type D and Type FS Duct Base |
| Material | PVC |
| Material Properties | Lead-Free |
| Standards Met | UL Recognized; CE Compliant; CSA Certified; RoHS Compliant; Flammability Rating of UL94V-0 after protective film is removed |
| Compatible Duct Width (In.) | 3 |
| Compatible Duct Width (mm) | 76.2 |
| Overall Height (In.) | 0.37 |
| Overall Height (mm) | 9.4 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.25 |
| Overall Width (mm) | 82.6 |
| Mount Method | Snap-On |
| Wiring Duct Style | Flush Cover with Film |
| Part Features | Cover with non-slip liner to prevent cover slide, flush cover design. Designed for easy install and removal. PVC Lead-free material |
Brand Name - C3LG6-F - Package Information
| UPC | 07498300471 |
|---|---|
| Standard Package Quantity | 6 |
| Standard Package Volume (cf) | 0.0481 |
| Standard Ctn. Quantity | 120 |
| Standard Ctn. Volume (cf) | 0.9619 |
Brand Name - C3LG6-F - Videos
| Video URL 1 | Click to View |
|---|---|
| Video URL 2 | Click to View |
