Panduit C3LG6 | Panduct Flush Duct Cover
Regular price
$22.42
Unit price
Brand: Panduit
|
SKU:
74094
Regular price
$22.42
Unit price
Description
Description

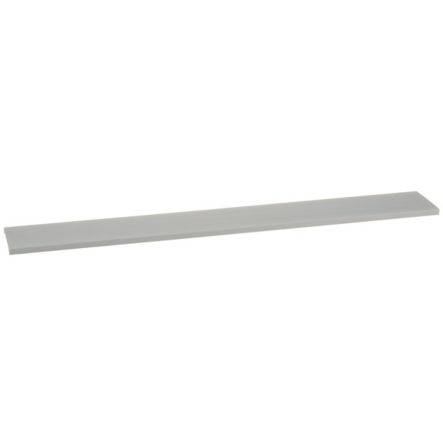

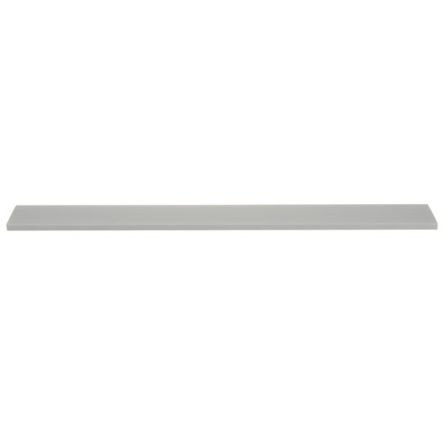

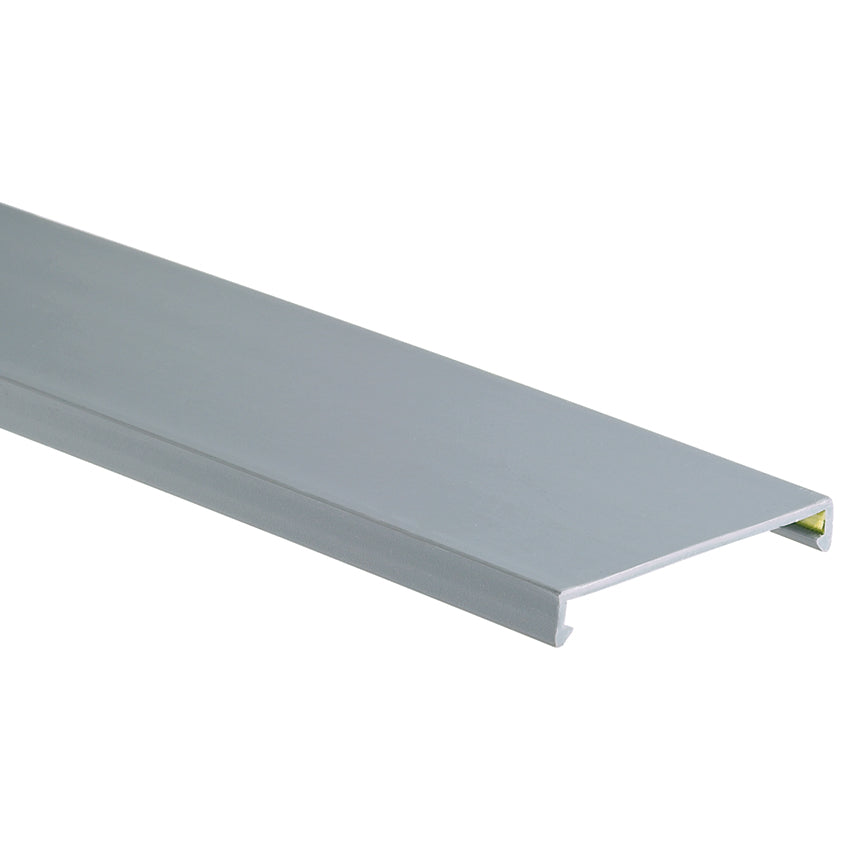

Panduit C3LG6 | Panduct Flush Duct Cover
Our flush wiring duct cover creates a sleek, professional finish while securely fastening to wiring ducts, preventing accidental movement.
Covers duct to protect wires, improve aesthetics and provides greater wire capacity.
Panduit Panduct Wiring Duct Cover, Series: C Series, 6 ft Length, 3.39 in Width, 0.37 in Height, 0.065 in Thickness, Snap-On Mount, For Use With: Type F, G, D, FS and MC Wiring Duct, Lead-Free PVC, Light Gray
Panduit - C3LG6 - Features
- Cover with non-slip liner to prevent cover slide, flush cover design
- Designed for easy install and removal
- Non-slip cover design incorporates integral high friction lining to inhibit cover movement
- Cover flush with base provides greater wire capacity and improves aesthetics
- Easy cover removal makes changes to wiring quick and easy
- Available in various colors
Specifications
Specifications
Panduit - C3LG6 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | C3LG6 |
| Components | Covers |
| Material | Plastic |
| Type | Cable Routing / Wiring Duct |
| UNSPSC Code | 39131712 |
| Note | Base and Cover Sold Separately. |
| Product Type | Flushed Duct Cover |
| Sub Brand | Panduct |
| Application | Cover for Wiring Duct |
| Color | Light Gray |
| For Use With | Type G, Type F, Type D and Type FS Duct Base |
| Material | PVC |
| Material Properties | Lead-Free |
| Standards Met | UL Recognized; Flammability Ratings: UL94 V-0; CSA Certified; CE Compliant; RoHS Compliant |
| Compatible Duct Width (In.) | 3 |
| Compatible Duct Width (mm) | 76.2 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.25 |
| Overall Width (mm) | 82.6 |
| Overall Height (In.) | 0.37 |
| Overall Height (mm) | 9.4 |
| Mount Method | Snap-On |
| Wiring Duct Style | Flush Cover |
| Part Features | Cover with non-slip liner to prevent cover slide, flush cover design. Designed for easy install and removal. PVC Lead-free material |
| UPC | 07498323120 |
Panduit - C3LG6 - Videos
| Panduit C3LG6 Video 1 | Click to View |
|---|---|
| Panduit C3LG6 Video 2 | Click to View |
