Brand: Panduit
|
SKU:
10083248
Panduit C3WH6-F | Flushed Duct Cover | UPC - 07498300463
Regular price
$23.72
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit C3WH6-F | Flushed Duct Cover | UPC - 07498300463
Regular price
$23.72
Unit price
Description
Description

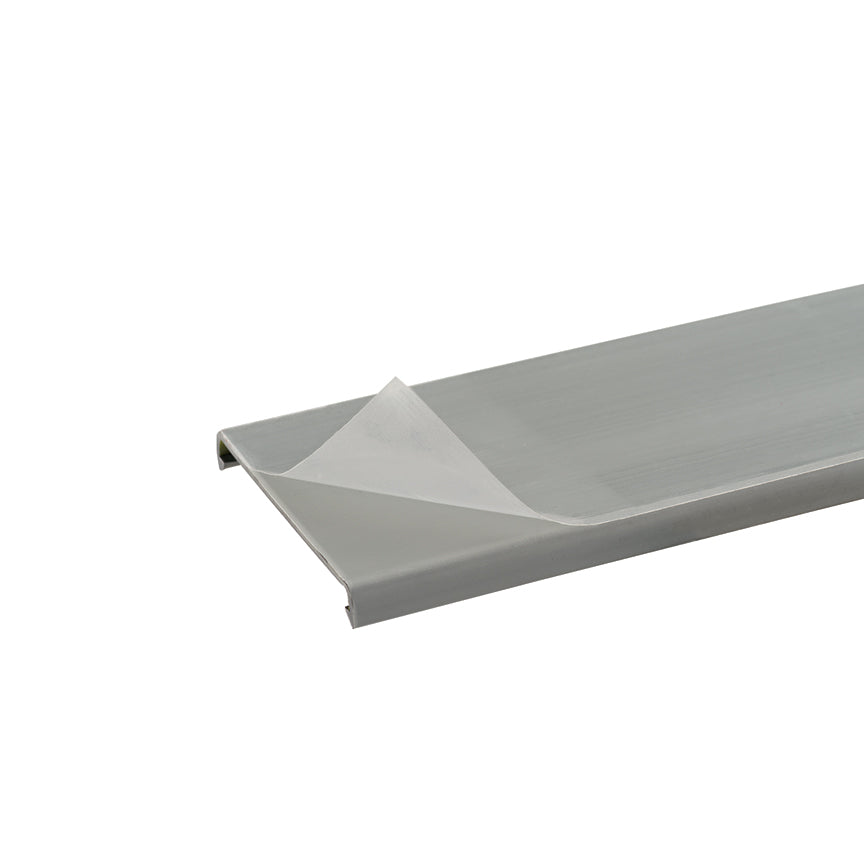

Panduit Panduct Wiring Duct Cover, Series: C Series, 6 ft Length, 3-1/4 in Width, 0.37 in Height, 0.065 in Thickness, Snap-On Mount, For Use With: Type F, G, D, FS and MC Wiring Duct, Lead-Free PVC, White
Features + Benefits
- High-performance multi-polymer film
- Acrylic-based adhesive
- Writing surface
- Clear material
Panduit Panduit C3WH6-F | Flushed Duct Cover | UPC - 07498300463 Key Specs
| Application | Cover for Wiring Duct with protective film to protect the surface during storage, handling, andinstallation. |
| Note | Base and Cover Sold Separately. |
| Product Type | Flushed Duct Cover |
| Sub Brand | Panduct |
| Color | White |
| For Use With | Type G, Type F, Type D and Type FS Duct Base |
| Material | PVC |
| Standards Met | UL Recognized; CE Compliant; CSA Certified; RoHS Compliant; Flammability Rating of UL94V-0 after protective film is removed |
| Compatible Duct Width (In.) | 3 |
| Compatible Duct Width (mm) | 76.2 |
| Overall Height (In.) | 0.37 |
| Overall Height (mm) | 9.4 |
| Overall Length (ft.) | 6 |
| Overall Length (m) | 1.8 |
| Overall Width (In.) | 3.25 |
| Overall Width (mm) | 82.6 |
| Part Features | Cover with non-slip liner to prevent cover slide, flush cover design. Designed for easy install and removal. PVC Lead-free material |
Panduit Panduit C3WH6-F | Flushed Duct Cover | UPC - 07498300463 Data Sheets
| Part Drawings | Duct Types "S", "D", "E", "F", "FS" and "G" Part Drawing 34518-17 | Download and View |
| Installation Documents | Installation Instructions/Best Practices - Technical Reference | Download and View |
| Specification Sheets | Type C Wiring Duct Cover with Protective Film | Download and View |
Panduit Panduit C3WH6-F | Flushed Duct Cover | UPC - 07498300463 Environmental Information
| Panduit's RoHS Statement | Download and View |
