Panduit CB175-38-L | Pan-Lug CB175-38-L Mech Lug,1hole,floating ton...
Description
Description

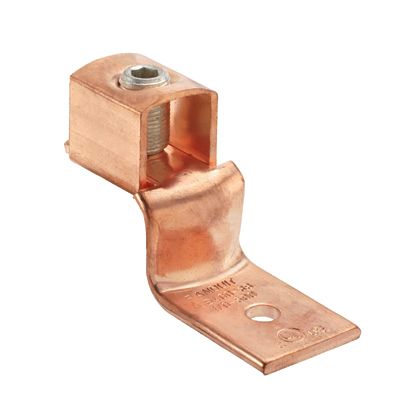

The CB175-38-L Copper Mechanical Lug is made from high strength electrolytic copper to provide premium electrical and mechanical performance, Wide wire range-taking capability minimizes inventory, Internal pressure bar and V-bottom collar provide uniform clamping force on conductor to assure positive contact between conductor and connector, plated steel set screw provides high strength and durable electrical contact between conductor and connector, cULus Listed for use up to 600 Volts.
Specifications
Specifications
Panduit - CB175-38-L - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - CB175-38-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CB175-38-L |
| Item Description | Pan-Lug CB175-38-L Mech Lug,1hole,floating tongue,3/8"stud,PK50 |
| Application | Copper Mechanical Lug |
| Product Type | Mechanical Lug |
| Base Material | Copper |
| Minimum Copper Conductor Size (AWG STR) | 4 |
| Maximum Copper Conductor Size (AWG STR) | 3/0 |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.53 |
| Number of Holes | 1 |
| Number of Ports | 1 |
| Tongue Type | Offset Floating Tongue |
| Tongue Length (In.) | 1.18 |
| Tongue Length (mm) | 23.9 |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
| Tongue Width (In.) | 0.75 |
| Tongue Width (mm) | 19.1 |
| Overall Height (In.) | 1 |
| Overall Height (mm) | 25.7 |
| Overall Length (In.) | 2.2 |
| Overall Length (mm) | 55.9 |
| Overall Width (In.) | 0.75 |
| Overall Width (mm) | 19.05 |
| Barrel Type | Single Barrel |
| Barrel Length (In.) | 0.72 |
| Barrel Length (mm) | 18.288 |
| Insulation Material | Non-Insulated |
| Standards Met | cULus Listed for use up to 600V & Temperature Rated to 90°C |
| CSA Temperature Rating (°C) | 90 |
| UL Temperature Rating (°C) | 90 |
| Maximum Voltage (V) | 600 |
| Amperage (A) | 175 |
| Hex Size (In.) | 3/16 |
| Hex Size (mm) | 4.8 |
| Sub Brand | Pan-Lug |
Brand Name - CB175-38-L - Package Information
| UPC | 61305687837 |
|---|---|
| Standard Package Quantity | 50 |
| Standard Package Volume (cf) | 0.0190 |
| Standard Ctn. Quantity | 200 |
| Standard Ctn. Volume (cf) | 0.0761 |
