Brand: Panduit
|
SKU:
249860

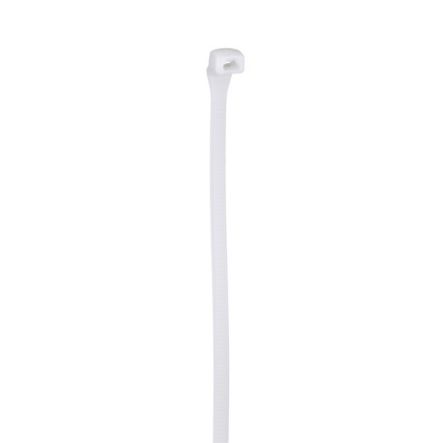

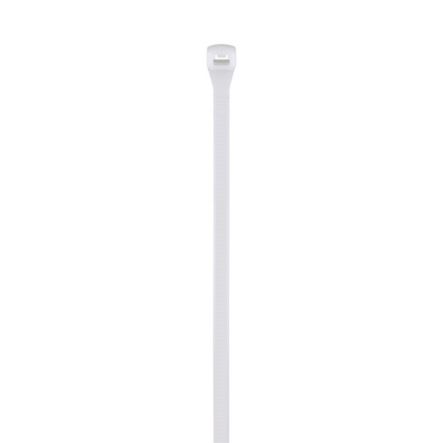

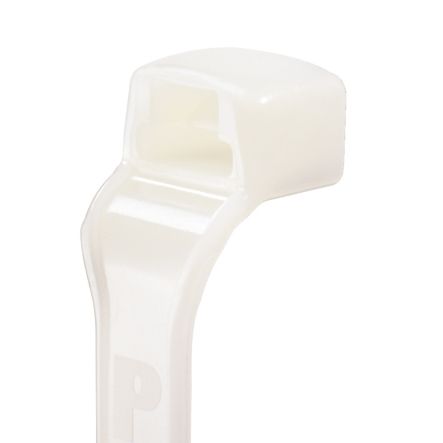

Panduit CBR1M-M Cable Tie, Contour-Ty, Parallel Entry, 4.1";L, 1"; Maximum Bundle Diameter, Miniature Cross Section, Nylon, Natural, Pack of 1000
Regular price
$58.74
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CBR1M-M Cable Tie, Contour-Ty, Parallel Entry, 4.1";L,...
Regular price
$58.74
Unit price
Description
Description
Panduit CBR1M-M | Contour-Ty CBR1M-M Contour Cable Tie, PA6.6, 4.1"L, 18lb, PK1000
Panduit CBR1M-M Contour-Ty Cable Ties are designed to provide consistent strength in high-vibration environments. A low-profile head and parallel entry design, the curved tip enters easily and stays snug and snag-free. Miniature cross section, 4.1" (104mm) length. Appropriate for Indoor use. Made of Nylon 6.6, are natural in color and come in packages of 1000.
Panduit - CBR1M-M - Features
- For indoor use
- Unique design prevents wire and cable damage
- Low profile head avoids snags and reduces overall bundle size
- Outside teeth and smooth round edges protect cable jacket - ideal for high vibration applications
- Parallel-entry limits exposurto sharp edges and protects workers’; arms/hands
- Fully enclosed head for consistent strength
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - CBR1M-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - CBR1M-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CBR1M-M |
| Item Description | Contour-Ty CBR1M-M Contour Cable Tie, PA6.6, 4.1"L, 18lb, PK1000 |
| Product Type | Cable Tie |
| Sub Brand | Contour-Ty |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 4.1 |
| Overall Length (mm) | 104.1 |
| Body Width (In.) | 0.098 |
| Body Width (mm) | 2.5 |
| Body Thickness (In.) | 0.038 |
| Body Thickness (mm) | 1 |
| Maximum Bundle Diameter (In.) | 1 |
| Maximum Bundle Diameter (mm) | 25.4 |
| Minimum Bundle Diameter (In.) | 0.07 |
| Minimum Bundle Diameter (mm) | 1.8 |
| Minimum Loop Tensile Strength (N) | 80 |
| Minimum Loop Tensile Strength (lb) | 18 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | SAE-AS23190A, SAE-AS33671, RoHS Compliant |
| Military Cross Reference Number | MS3367-30-9 |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Part Features | Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength |
Panduit - CBR1M-M - Package Information
| UPC | 07498383911 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.0534 |
| Standard. Ctn. Quantity | 50000 |
| Standard. Ctn. Volume (cf) | 2.6700 |
Panduit - CBR1M-M - Videos
| Video 1 | Click to View |
|---|
