Brand: Panduit
|
SKU:
249866

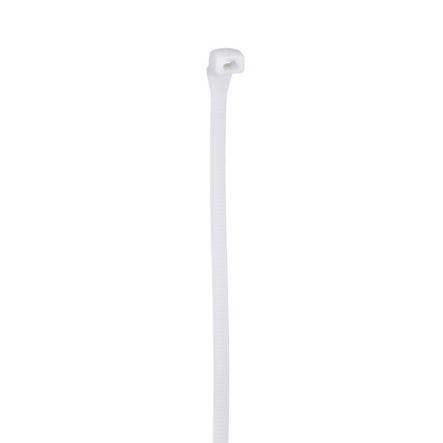

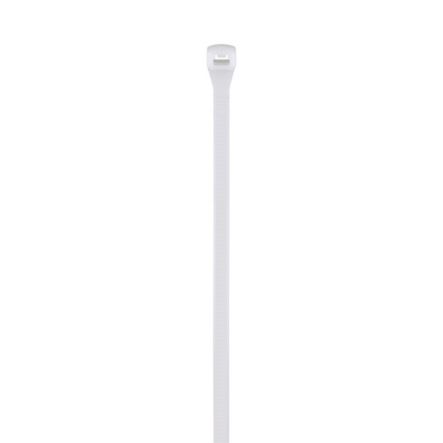

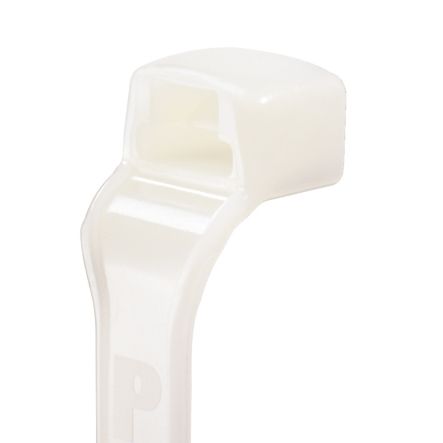

Panduit CBR4I-M | Contour-Ty Cbr4I-M Cable Tie
Regular price
$401.79
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CBR4I-M | Contour-Ty Cbr4I-M Cable Tie
Regular price
$401.79
Unit price
Description
Description
Panduit CBR4I-M | Contour-Ty Cbr4I-M Cable Tie
Panduit Contour-Ty Cable Ties are designed to provide consistent strength in high-vibration environments. Plus, with a low-profile head and parallel entry design, the tip enters easy and stays snug and snag-free. And with Nylon 6.6 material, it's ideal for indoor applications. Intermediate cross section, 13.6in, Tensile Strength: 178, Natural, 1000pc.
Panduit - CBR4I-M - Features
- For indoor use
- Unique design prevents wire and cable damage
- Low profile head avoids snags and reduces overall bundle size
- Outside teeth and smooth round edges protect cable jacket - ideal for high vibration applications
- Parallel-entry limits exposurto sharp edges and protects workers’; arms/hands
- Fully enclosed head for consistent strength
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - CBR4I-M - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - CBR4I-M - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CBR4I-M |
| Item Description | Contour-Ty Cbr4I-M Cable Tie |
| Product Type | Cable Tie |
| Sub Brand | Contour-Ty |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 13.6 |
| Overall Length (mm) | 345.4 |
| Body Width (In.) | 0.14 |
| Body Width (mm) | 3.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Bundle Diameter (In.) | 0.07 |
| Minimum Bundle Diameter (mm) | 1.8 |
| Minimum Loop Tensile Strength (N) | 178 |
| Minimum Loop Tensile Strength (lb) | 40 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | SAE-AS23190A, SAE-AS33671, RoHS Compliant |
| Military Cross Reference Number | MS3367-35-9 |
| For Use With | GTS-E, GS2B-E, PTS, PPTS, STS2 |
| Application | General |
| Part Features | Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength |
Panduit - CBR4I-M - Package Information
| UPC | 07498383904 |
|---|---|
| Standard Package Quantity | 1000 |
| Standard Package Volume (cf) | 0.2164 |
| Standard Ctn. Quantity | 10000 |
| Standard Ctn. Volume (cf) | 2.1638 |
