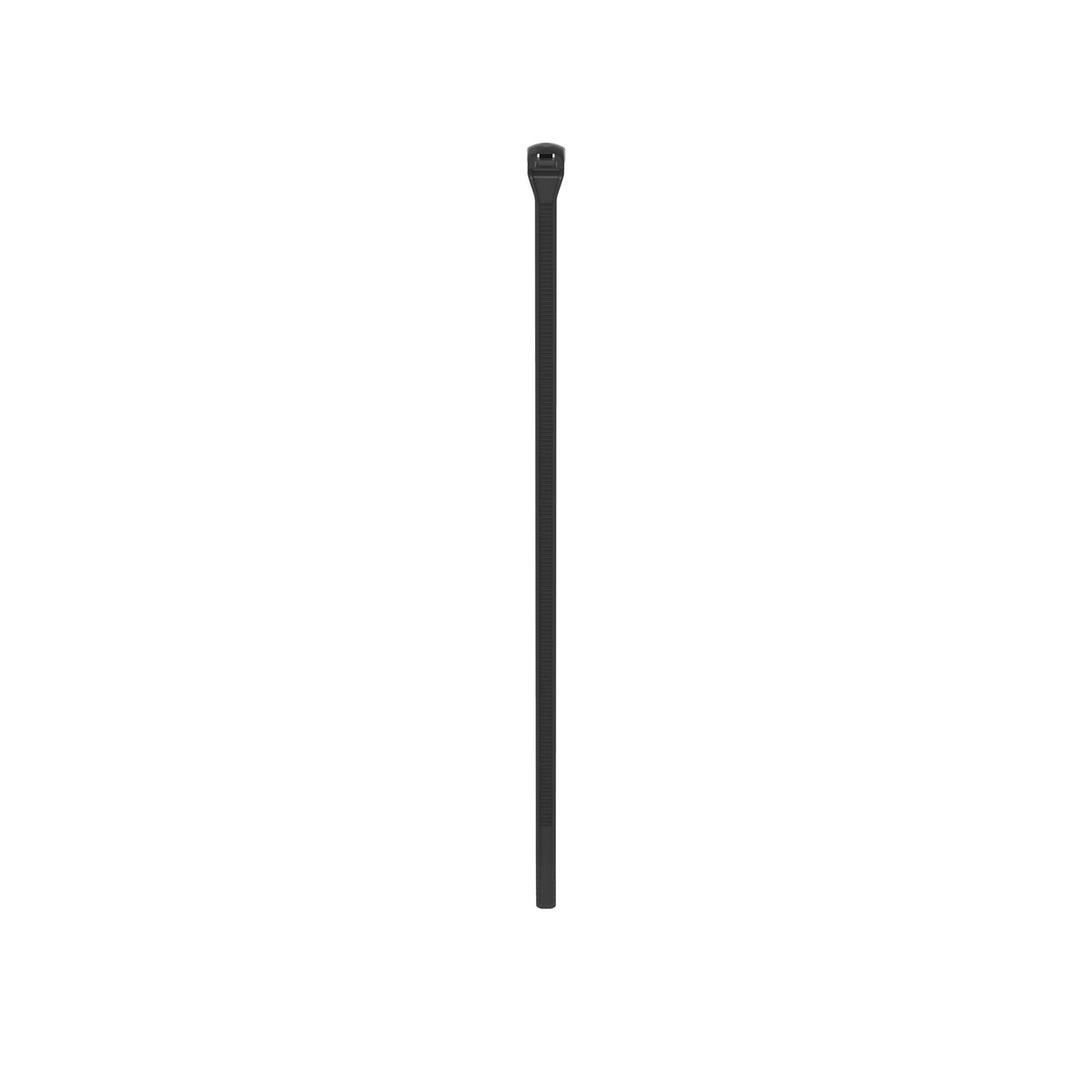

Panduit CBR4S-M0 | Contour-Ty® Cable Tie
Description
Description
Contour-Ty cable ties provide a superior bundling solution for a wide variety of applications. the low profile head and the parallel entry design along with outside teeth on tie body make it the ideal tie for use in high vibration applications. the product line includes a variety of materials for indoor or outdoor use, as well as several sizes and colors to accommodate a wide range of bundling applications.
Panduit Contour-Ty Cable Tie, Standard, Series: CBR, 14 in Length, 0.19 in Width, 0.05 in Thickness, 4 in Bundle Dia, Locking, 50 lb Tensile, -76 to 185 deg F, Nylon 6.6, Black
Keep your cables snug and snag-free in high-vibration places with our cable tie. It’s made with a low-profile head, curved tip, and heat-resistant nylon.
Panduit CBR4S-M0 Contour-Ty Cable Ties are designed to provide consistent strength in high-vibration environments. A low-profile head and parallel entry design, the curved tip enters easily and stays snug and snag-free. Standard cross section, 14.0’ (3 56mm) length. Appropriate for Indoor or Outdoor use. Made of Weather-resistant Nylon 6.6 with high resistance to ultraviolet light, are black in color and come in packages of 1000.
Panduit - CBR4S-M0 - Features
- 100% performance tested assures that patch cords and pigtails are standard compliant
- Low profile head reduces overall bundle size and avoids snags in spaces with limited access
- Outside teeth provide cable protection, ideal for high vibration applications
- Smooth round edges prevent damage to cable bundles or finished product
- Fully enclosed head provides consistent strength
- Parallel entry design, results in a lower profile on cable bundles, limits exposure to sharp edges and protects workers arms or hands
- Curved tip and aggressive grip easy to pickup from flat surfaces, allows faster initial threading
- Weather-resistant material has greater resistance to damage caused by ultraviolet light
Specifications
Specifications
Panduit - CBR4S-M0 - Specifications
| Type | Cables Ties And Accessories |
|---|---|
| UNSPSC Code | 39121703 |
| Technical Information | SAE-AS23190A, SAE-AS33671, RoHS Complaint |
| Material Description | Nylon 6.6 (UV-Resistant, Weather-Resistant) |
| Product Type | Cable Tie |
| Sub Brand | Contour-Ty® |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Resistance Properties | UV-Resistant, Weather-Resistant |
| Overall Length (In.) | 14 |
| Overall Length (mm) | 356 |
| Body Width (In.) | 0.19 |
| Body Width (mm) | 4.8 |
| Body Thickness (In.) | 0.052 |
| Body Thickness (mm) | 1.3 |
| Maximum Bundle Diameter (In.) | 4 |
| Maximum Bundle Diameter (mm) | 101.6 |
| Minimum Bundle Diameter (In.) | 0.28 |
| Minimum Bundle Diameter (mm) | 7.1 |
| Minimum Loop Tensile Strength (N) | 222 |
| Minimum Loop Tensile Strength (lb) | 50 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| UPC | 07498383416 |
Panduit - CBR4S-M0 - Package Information
| UPC | 07498383416 |
|---|---|
| Standard Packaging Quantity | 1000 |
| Standard Packaging Volume (cf) | 0.3606 |
| Standard Ctn. Quantity | 5000 |
| Standard Ctn. Volume (cf) | 1.8029 |
Panduit - CBR4S-M0 - Videos
| Panduit CBR4S-M0 Videos | Click to View |
|---|
