Brand: Panduit
|
SKU:
249875

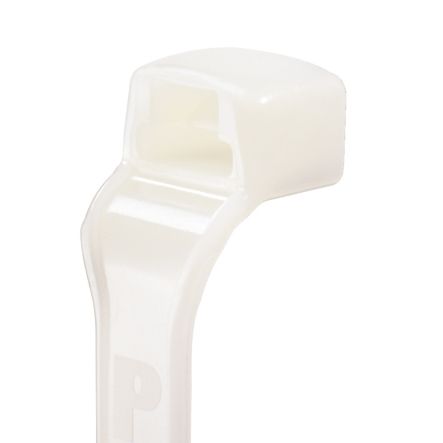

Panduit CBR6LH-C | Contour-Ty CBR6LH-C Contour Cable Tie, PA6.6, 20.9"L, 120lb, PK100
Regular price
$108.58
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CBR6LH-C | Contour-Ty CBR6LH-C Contour Cable Tie, PA6.6, 20...
Regular price
$108.58
Unit price
Description
Description
Panduit CBR6LH-C | Contour-Ty CBR6LH-C Contour Cable Tie, PA6.6, 20.9"L, 120lb, PK100
Panduit Contour-Ty Cable Ties are designed to provide consistent strength in high-vibration environments. Plus, with a low-profile head and parallel entry design, the tip enters easy and stays snug and snag-free. And with Nylon 6.6 material, it's ideal for indoor applications. Light-heavy cross section, 20.9in, Tensile Strength: 534, Natural, 100pc.
Panduit - CBR6LH-C - Features
- For indoor use
- Unique design prevents wire and cable damage
- Low profile head avoids snags and reduces overall bundle size
- Outside teeth and smooth round edges protect cable jacket - ideal for high vibration applications
- Parallel-entry limits exposurto sharp edges and protects workers’; arms/hands
- Fully enclosed head for consistent strength
- Curved tip is easy to pick up from flat surfaces and allows faster initial threading to speed installation
Specifications
Specifications
Panduit - CBR6LH-C - Product Categories
- Wire Routing, Management & Protection
- Cable Ties & Wire Ties
Panduit - CBR6LH-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CBR6LH-C |
| Item Description | Contour-Ty CBR6LH-C Contour Cable Tie, PA6.6, 20.9"L, 120lb, PK100 |
| Product Type | Cable Tie |
| Sub Brand | Contour-Ty |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Overall Length (In.) | 20.9 |
| Overall Length (mm) | 530.9 |
| Body Width (In.) | 0.3 |
| Body Width (mm) | 7.8 |
| Body Thickness (In.) | 0.07 |
| Body Thickness (mm) | 1.8 |
| Maximum Bundle Diameter (In.) | 6 |
| Maximum Bundle Diameter (mm) | 152.4 |
| Minimum Bundle Diameter (In.) | 0.32 |
| Minimum Bundle Diameter (mm) | 8 |
| Minimum Loop Tensile Strength (N) | 534 |
| Minimum Loop Tensile Strength (lb) | 120 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Minimum Installation Temperature (°C) | -20 |
| Minimum Installation Temperature (°F) | -4 |
| Standards Met | SAE-AS23190A, SAE-AS33671, RoHS Compliant |
| Military Cross Reference Number | MS3367-41-9 |
| For Use With | GTH-E, GS4H-E, GS4EH-E, PTH, STH2, ST3EH |
| Application | General |
| Part Features | Low profile head avoids snags and reduces overall bundle size, Outside teeth and smooth round edges protect cable jacket — ideal for high vibration applications, Fully enclosed head for consistent strength |
Panduit - CBR6LH-C - Package Information
| UPC | 07498383908 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.1286 |
| Standard. Ctn. Quantity | 2000 |
| Standard. Ctn. Volume (cf) | 2.5715 |
Panduit - CBR6LH-C - Videos
| Video 1 | Click to View |
|---|
