Brand: Panduit
|
SKU:
234759

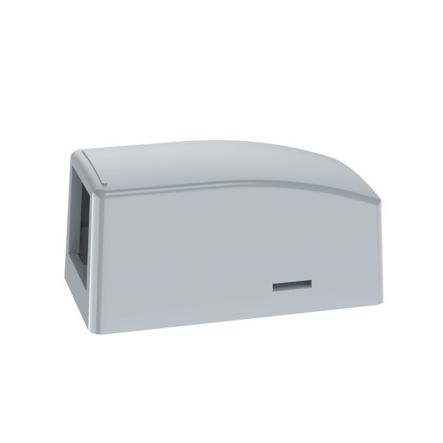

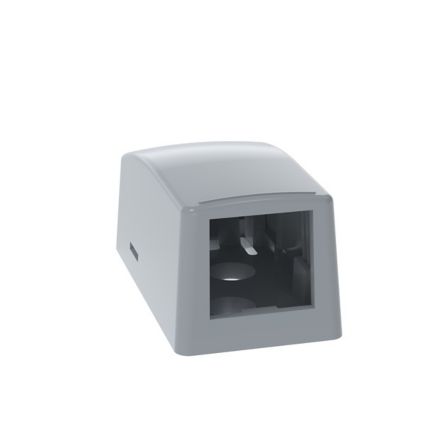

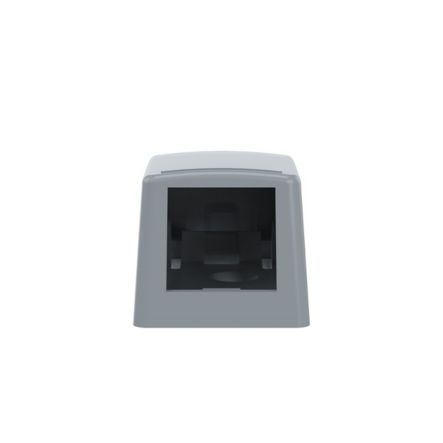

Panduit CBX1IG-A | Surface Mount Box, 1 Port, International Gray
Regular price
$8.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CBX1IG-A | Surface Mount Box, 1 Port, International Gray
Regular price
$8.59
Unit price
Description
Description
Panduit CBX1IG-A | Mini-Com, Surface Mount Boxes, Low Profile, 1 port, International Gray
The Mini-Com Surface Mount Box is plenum rated and accepts one Mini-Com Module. The box offers a variety of mounting options using adhesive tape or screws. The box can be identified with an adhesive label and is international gray.
Panduit - CBX1IG-A - Features
- Accept Mini-Com(TM) Modules for STP and UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Mount easily with supplied mounting screws, adhesive tape or optional magnet (CBM-X)
- Cable entry from side and rear knockouts and from opening in center of base
- CBXJ2 and CBX2 include built-in removable blank to add a second module
- Optional adhesive labels available
Specifications
Specifications
Panduit - CBX1IG-A - Product Categories
- Copper Systems
- Surface Mount Boxes
Panduit - CBX1IG-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CBX1IG-A |
| Item Description | Mini-Com, Surface Mount Boxes, Low Profile, 1 port, International Gray |
| Product Type | Low Profile |
| Number of Ports | 1 |
| Module Type | Mini-Com |
| Color | International Gray |
| Identification Type | Adhesive Label |
| Includes | 1 Adhesive Strips |
| Overall Length (In.) | 1.89 |
| Overall Length (mm) | 48.1 |
| Overall Width (In.) | 1.03 |
| Overall Width (mm) | 26.3 |
| Overall Height (In.) | 0.92 |
| Overall Height (mm) | 23.2 |
| Sub Brand | Pan-Net |
| Raceway Opening | LD3/LDPH3 |
| Material | ABS |
| Standards Met | UL 1863; UL 2043; RoHS Compliant |
Panduit - CBX1IG-A - Package Information
| UPC | 07498375375 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0050 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.0501 |
