Brand: Panduit
|
SKU:
234760

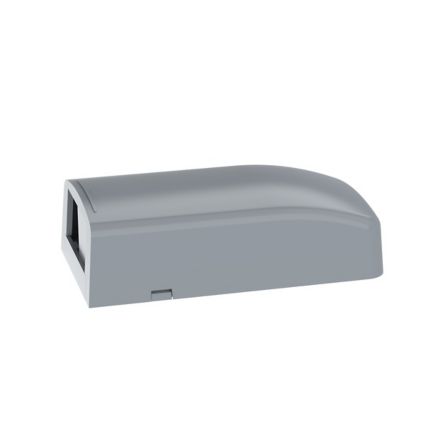

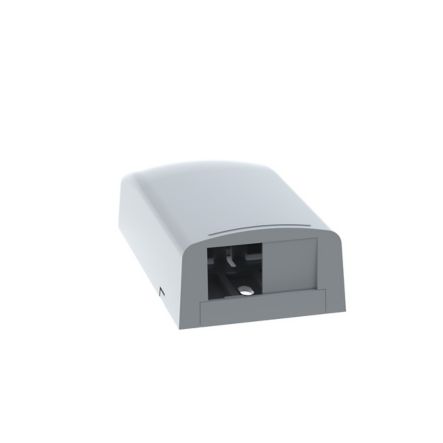

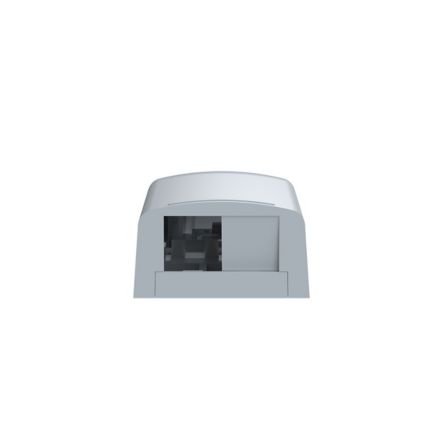

Panduit CBX2IG-AY | Surface mount box accepts one or two Mini-Com Modules; includes built-in removable blank to add a second module. Dimensions: 1.06";H x 1.95";W x 3.65";L (26.92mm x 49.53mm x 92.71mm)
Regular price
$10.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CBX2IG-AY | Surface mount box accepts one or two Mini-Com M...
Regular price
$10.81
Unit price
Description
Description
Panduit CBX2IG-AY | Mini-Com, Surface Mount Boxes, Elongated, 2 port, International Gray
The Mini-Com Surface Mount Box is plenum rated and accepts two Mini-Com Modules. The box offers a variety of mounting options using adhesive tape, screws, or optional magnet. The box can be identified with an adhesive label and is international gray.
Panduit - CBX2IG-AY - Features
- Accept Mini-Com(TM) Modules for STP and UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Mount easily with supplied mounting screws, adhesive tape or optional magnet (CBM-X)
- Cable entry from side and rear knockouts and from opening in center of base
- CBXJ2 and CBX2 include built-in removable blank to add a second module
- Optional adhesive labels available
Specifications
Specifications
Panduit - CBX2IG-AY - Product Categories
- Copper Systems
- Surface Mount Boxes
Panduit - CBX2IG-AY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CBX2IG-AY |
| Item Description | Mini-Com, Surface Mount Boxes, Elongated, 2 port, International Gray |
| Product Type | Elongated |
| Number of Ports | 2 |
| Module Type | Mini-Com |
| Color | International Gray |
| Identification Type | Adhesive Label |
| Includes | (1) Box Boase, (2) Box Cover, (3) PLT1.5I-C PAN-TY, (4) 2-Mounting Screw, (5) Strip of 3" X .75" Foam Tape for Mounting, (6) ID Label Kit |
| Overall Length (In.) | 3.65 |
| Overall Length (mm) | 92.7 |
| Overall Width (In.) | 1.95 |
| Overall Width (mm) | 49.5 |
| Overall Height (In.) | 1.06 |
| Overall Height (mm) | 27 |
| Sub Brand | Pan-Net |
| Raceway Opening | LD3/LDP3 or LD5/LDP5 |
| Material | ABS |
| Standards Met | UL 1863; UL 2043; RoHS Compliant |
Panduit - CBX2IG-AY - Package Information
| UPC | 07498303201 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1750 |
