Brand: Panduit
|
SKU:
190998

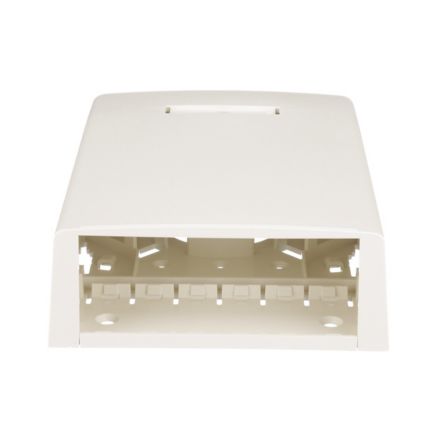

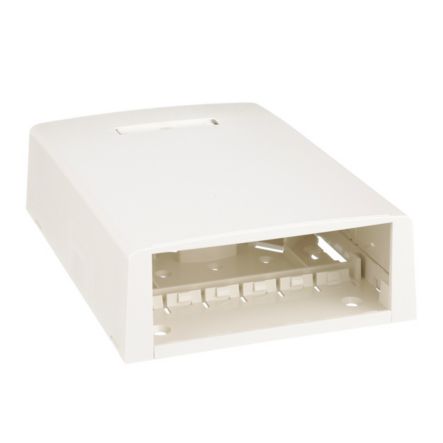

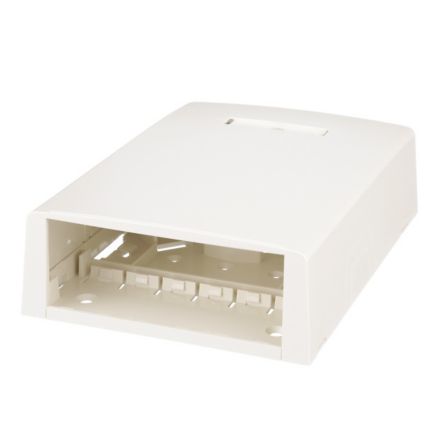

Panduit CBXF12IW-AY | Mini-Com, Surface Mount Boxes, With Fiber Spool, 12 port, Off White
Regular price
$37.86
Unit price
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CBXF12IW-AY | Mini-Com, Surface Mount Boxes, With Fiber Spo...
Regular price
$37.86
Unit price
Brand: Panduit
|
SKU:
190998
Regular price
$37.86
Unit price
Description
Description
Panduit CBXF12IW-AY | Mini-Com, Surface Mount Boxes, With Fiber Spool, 12 port, Off White
The Mini-Com Multimedia Surface Mount Box accepts twelve Mini-Com Modules. A built-in fiber spool in the base protects and secures cable slack in place. The box offers a variety of mounting options using adhesive tape or screws. The box includes a bridge, a label pocket for easy identification and is off white.
Panduit - CBXF12IW-AY - Features
- Accept Mini-Com(TM) Modules for STP and UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Mount easily with supplied mounting screws or adhesive tape
- Cable tie slots for improved cable management
- Tamper resistant screw for added security
- Unique built-in fiber spool design secures cable in place and stores up to 78.8 feet (24 meters) of buffered fiber optic cable
- Cable entry from side and rear knockouts and from opening in bottom of base
- Optional adhesive labels available
- Combination label/label cover for custom outlet identification
Specifications
Specifications
Panduit - CBXF12IW-AY - Product Categories
- Copper Systems
- Surface Mount Boxes
Panduit - CBXF12IW-AY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CBXF12IW-AY |
| Item Description | Mini-Com, Surface Mount Boxes, With Fiber Spool, 12 port, Off White |
| Product Type | With Fiber Spool |
| Number of Ports | 12 |
| Module Type | Mini-Com |
| Color | Off White |
| Identification Type | Label Pocket |
| Includes | (1) Box Base, (2) Box Cover, (3) Bridge, (4) 2- PLT1.5I-C PAN-TY, (5) Label/ Label Cover, (6) 2-Mounting Screw, (7) Cover Screw (Used To Secure Cover To Base), (8) 2-Strip Of 1.00" X .75" Foam Tape For Mounting, (9) 1-Strip Of 3.00" X .75" Foam Tape For Mounting |
| Overall Length (In.) | 6.7 |
| Overall Length (mm) | 170.1 |
| Overall Width (In.) | 4.73 |
| Overall Width (mm) | 120 |
| Overall Height (In.) | 1.81 |
| Overall Height (mm) | 46.1 |
| Sub Brand | Pan-Net |
| Raceway Opening | LD3/LDPH3, LD5/LDPH5, LD10/LDPH10 |
| Material | ABS |
| Standards Met | RoHS Compliant |
Panduit - CBXF12IW-AY - Package Information
| UPC | 07498303227 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0700 |
| Standard. Ctn. Quantity | 10 |
| Standard. Ctn. Volume (cf) | 0.7000 |
