Panduit CBXQ2EI-A | Mini-Com Surface Mount Box, 2 Port, Ei
Regular price
$9.45
Unit price
Brand: Panduit
|
SKU:
910889
Regular price
$9.45
Unit price
Description
Description

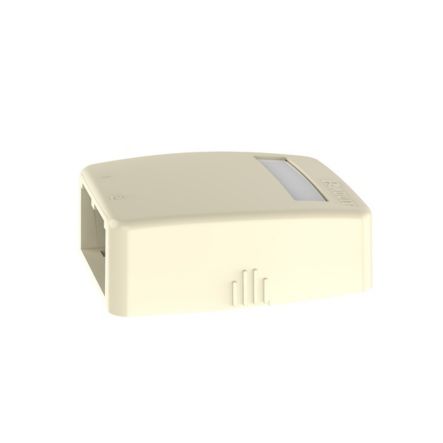

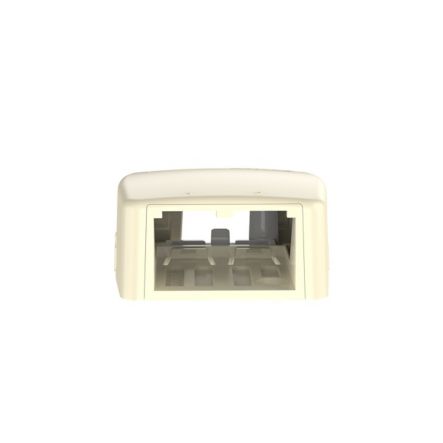

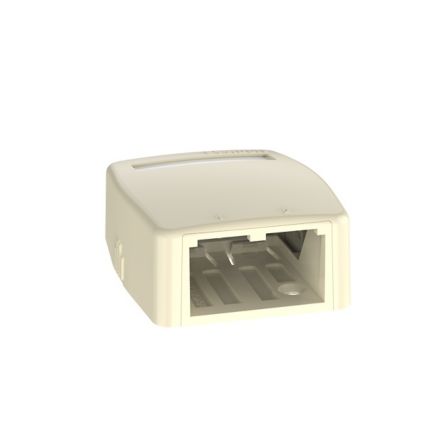

Panduit CBXQ2EI-A | Mini-Com Surface Mount Box, 2 Port, Ei
The Mini-Com Surface Mount Box is plenum rated and accepts two Mini-Com Modules. Cover has a quick release mechanism that allows easy access to the modules; cover can be secured with a screw. The box offers a variety of mounting options using adhesive tape, screws, or optional magnet. The box includes a label pocket for easy identification and is electric ivory.
Panduit - CBXQ2EI-A - Features
- Mini-Com Surface Mount Boxes offer a variety of mounting options, allowing Mini-Com Modules to be mounted on a variety of surfaces, such as standard walls, metal surfaces, office furniture, etc. Surface mount boxes include breakouts compatible with Pan duit’;s raceway system to conceal and allow cable to run into the box providing a point of connection for voice, video and data applications.
- Quick release: cover Can be removed by hand, does not require tool
- Modular: Accepts most Mini-ComModules, for easy moves, adds, and changes
- Low profile design: Smaller profile offers a less conspicuous look
- Raceway breakouts: Compatible with specific aceway, conceals cable entering the box
- Cover screw: Boxes with label pocket provide a screw that secures the cover to the base
- Labels and label covers: Select boxes include a label pocket to meet TIA/EIA-606B labeling standards
- Magnet pockets: Magnetcan be used with magnet pocket for optional mounting (CBX1 -A does not include a magnet pocket); CBM-X for use with standard boxes
- Shuttered feature: Achieved by installing jack modules with spring shuttered door
Specifications
Specifications
Panduit - CBXQ2EI-A - Product Categories
- Copper Systems
- Surface Mount Boxes
Panduit - CBXQ2EI-A - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CBXQ2EI-A |
| Item Description | Mini-Com Surface Mount Box, 2 Port, Ei |
| Product Type | Quick Release |
| Number of Ports | 2 |
| Module Type | Mini-Com |
| Color | Electric Ivory |
| Identification Type | Label Pocket |
| Includes | (1) Box Cover, (2) Box Base, (3) PLT1M PAN-TY, (4) Label and Label Cover, (5) Screw (Used to Secure Cover to Base), (6) Strip of 1.00" X .75" Foam Tape for Mounting |
| Overall Length (In.) | 2.6 |
| Overall Length (mm) | 66.04 |
| Overall Width (In.) | 2.1 |
| Overall Width (mm) | 53.46 |
| Overall Height (In.) | 0.98 |
| Overall Height (mm) | 24.89 |
| Sub Brand | Pan-Net |
| Raceway Opening | LD3/LDPH3 |
| Material | ABS |
| Standards Met | UL 1863; UL 2043; RoHS Compliant |
Panduit - CBXQ2EI-A - Package Information
| UPC | 61305616941 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0106 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1057 |
