Brand: Panduit
|
SKU:
699220

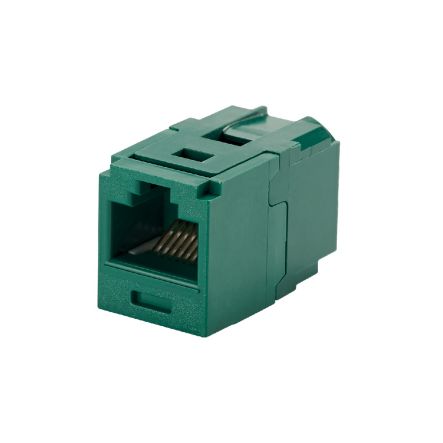

Panduit CC688GR | Mini-Com Utp Rj45 Cat 6 Coupler Module, Green
Regular price
$31.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CC688GR | Mini-Com Utp Rj45 Cat 6 Coupler Module, Green
Regular price
$31.65
Unit price
Description
Description
Panduit CC688GR | Mini-Com Utp Rj45 Cat 6 Coupler Module, Green
Panduit CC688GR Mini-com Coupler Module, Category 6, UTP, Green
The Mini-Com Cat 6 UTP RJ45 Coupler Module is designed and 100% factory tested to exceed industry standard performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is Green.
Specifications
Specifications
Panduit - CC688GR - Product Categories
- Copper Systems
- Jack Modules
Panduit - CC688GR - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CC688GR |
| Item Description | Mini-Com Utp Rj45 Cat 6 Coupler Module, Green |
| Product Type | Coupler Module |
| Performance Level | Category 6 |
| Connector Type | Coupler Module |
| Termination Style | Coupler |
| Body Material | Polycarbonate |
| Contact Material | Plated Phosphor Bronze |
| Module Type | Mini-Com |
| Wiring Scheme | T568A/T568B |
| Shield Type | Unshielded (UTP) |
| Sub Brand | Pan-Net |
| Maximum Operating Temperature (°C) | 75 |
| Maximum Operating Temperature (°F) | 167 |
| Minimum Operating Temperature (°C) | -10 |
| Minimum Operating Temperature (°F) | 14 |
| Maximum Storage Temperature (°C) | 75 |
| Maximum Storage Temperature (°F) | 167 |
| Minimum Storage Temperature (°C) | -40 |
| Minimum Storage Temperature (°F) | -40 |
| Resistance Properties | Heat-Resistant |
| Color | Green |
| Standards Met | Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with up to 2 couplers per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant. |
| Overall Depth (In.) | 1.09 |
| Overall Depth (mm) | 27.7 |
| Overall Height (In.) | 0.71 |
| Overall Height (mm) | 18 |
| Overall Length (In.) | 1.09 |
| Overall Length (mm) | 27.7 |
| Overall Width (In.) | 0.62 |
| Overall Width (mm) | 15.7 |
Panduit - CC688GR - Package Information
| UPC | 07498394541 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0032 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1604 |
