Brand: Panduit
|
SKU:
522479

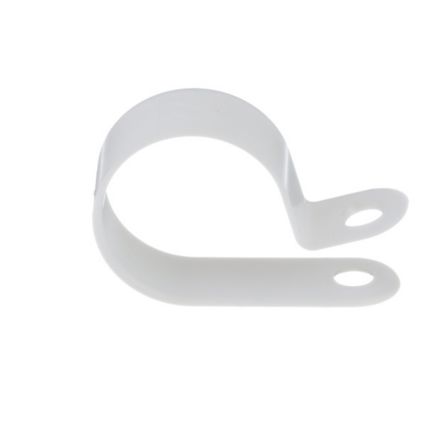

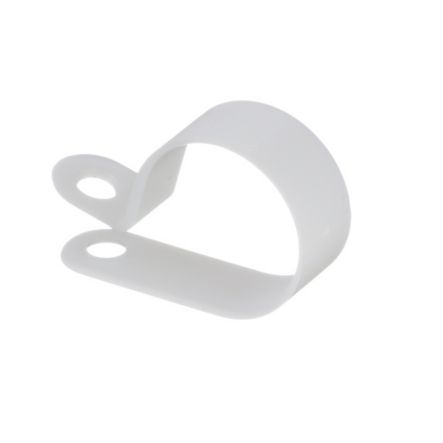

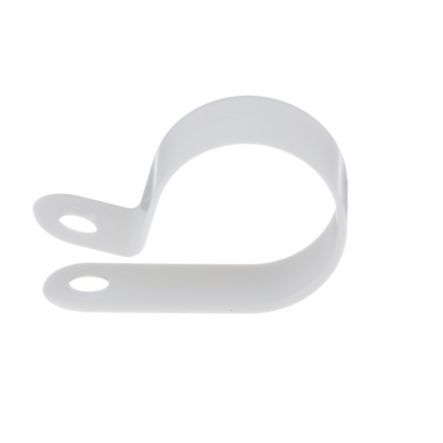

Panduit CCH100-S10-C Fixed Diameter Clamp, 1"; (25.4mm) Bundle, #10 screw (M5), white, pack of 100
Regular price
$62.73
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CCH100-S10-C Fixed Diameter Clamp, 1"; (25.4mm) Bundle...
Regular price
$62.73
Unit price
Description
Description
Panduit CCH100-S10-C | CCH100-S10-C Cable Clamp
Fixed diameter cable clamp, heavy duty, #10 screw (M5), 1" (25.4mm) bundle, white, standard package.
Fixed Diameter Clamp. 1 Inch (25.4 mm) Bundle Diameter. No. 10 (M5) Screw. Durable nylon cable clamp. Fully rounded inside edges minimize abrasion to wire bundles. Secure using secondary mechanical fastener (not included). Material is Nylon 6.6. Color is Natural.
Specifications
Specifications
Panduit - CCH100-S10-C - Product Categories
- Wire Routing, Management & Protection
- Cable Clamps & Clips & Conduit Clamps & Clips
Panduit - CCH100-S10-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CCH100-S10-C |
| Item Description | CCH100-S10-C Cable Clamp |
| Application | For securing wires and cables via fixed diameter clamping |
| Note | Not available in Japan |
| Product Type | Cable Clamp |
| Color | Natural |
| Environment | Indoor |
| Finish/Coating | None |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 1 |
| Maximum Bundle Diameter (mm) | 25.4 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | #10 (M5) Screw |
| Mounting Hole Diameter (In.) | 0.203 |
| Mounting Hole Diameter (mm) | 5.1 |
| Overall Height (In.) | 1.1 |
| Overall Height (mm) | 28 |
| Overall Length (In.) | 1.45 |
| Overall Length (mm) | 37.1 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Standards Met | UL Recognized E136577, RoHS Compliant |
| Maximum Flange Thickness (In.) | 0.05 |
| Maximum Flange Thickness (mm) | 1.3 |
Panduit - CCH100-S10-C - Package Information
| UPC | 07498360018 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0668 |
| Standard. Ctn. Quantity | 500 |
| Standard. Ctn. Volume (cf) | 0.3338 |
