Brand: Panduit
|
SKU:
CCH112-S10-C

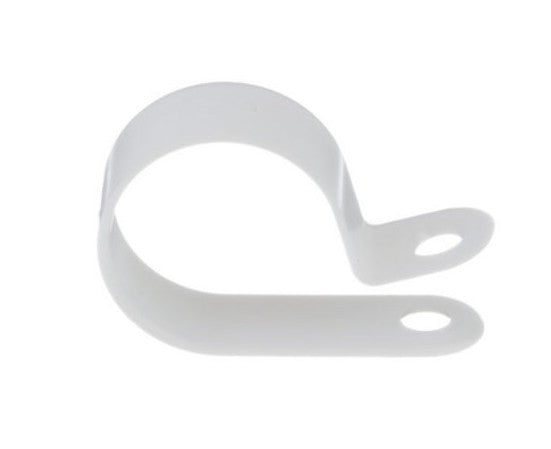

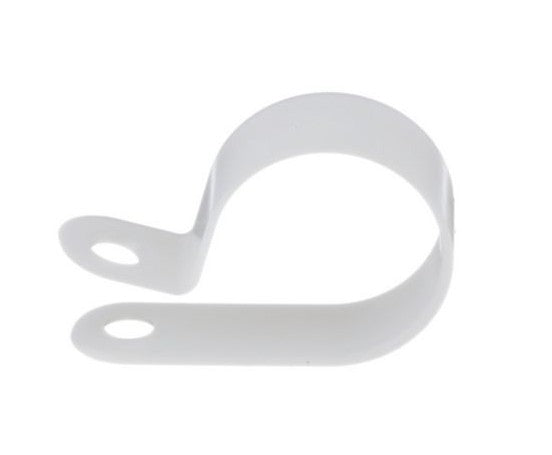

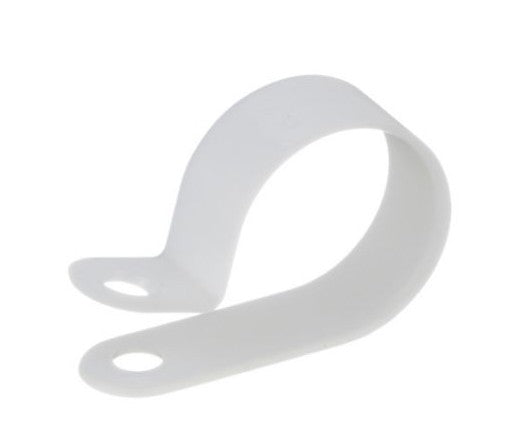

Panduit CCH112-S10-C | Fixed Diameter Clamp, 1.12" Bundle Diameter, Pack of 100
Regular price
$57.81
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CCH112-S10-C | Fixed Diameter Clamp, 1.12" Bundle Diam...
Regular price
$57.81
Unit price
Description
Description
Panduit CCH112-S10-C | Fixed Diameter Clamp, 1.12" Bundle Diameter, Pack of 100
For demanding environments where durability is essential, our fixed diameter cable clamp are heavy duty, providing a strong and reliable hold for your cables.
Specifications
Specifications
Panduit - CCH112-S10-C - Specifications
| Note | Not available in Japan |
|---|---|
| Product Type | Cable Clamp |
| Application | For securing wires and cables via fixed diameter clamping |
| Color | Natural |
| Environment | Indoor |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 1.13 |
| Maximum Bundle Diameter (mm) | 28.4 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Diameter (In.) | 0.203 |
| Mounting Hole Diameter (mm) | 5.1 |
| Overall Length (In.) | 1.58 |
| Overall Length (mm) | 40.1 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Overall Height (In.) | 1.22 |
| Overall Height (mm) | 31 |
Panduit - CCH112-S10-C - Package Includes
| UPC | 07498360064 |
|---|---|
| Std. Pkg. Qty. | 100 |
| Std. Pkg. Volume (cf) | 0.1159 |
| Std. Ctn. Qty. | 500 |
| Std. Ctn. Volume (cf) | 0.5793 |
Panduit - CCH112-S10-C - Videos
| Panduit CCH112-S10-C Video | Click to View |
|---|
