Panduit CCH25-S10-C0 | Cable Clamp
Description
Description
For demanding environments where durability is essential, our fixed diameter cable clamp are heavy duty, providing a strong and reliable hold for your cables.

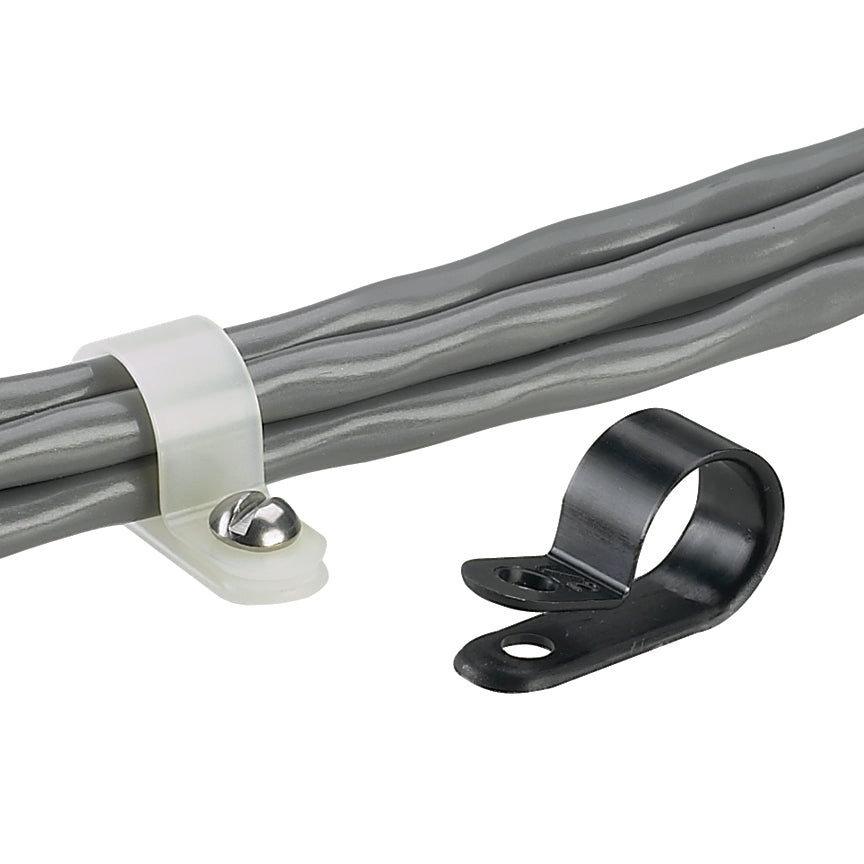

Heavy Duty Fixed Diameter Cable Clamp
Panduit is a global leader in comprehensive physical infrastructure solutions. Issues such as convergence, interoperability, scalability and continuity need to be addressed to reduce risk across the IT, facilities and manufacturing physical infrastructure. Our holistic approach enables business continuity through robust, leading edge systems that optimize design and deployment of the physical infrastructure - delivering maximum reliability, availability, security, integration and safety.
Panduit Cable Clamp, Fixed Diameter Heavy Duty, 1/4 in Conduit, 0.2 in Outside Dia, Threaded Mount, #10 (M5) Screw, 0.46 in Bundle Offset, 1/4 in Dia Bundle, Black Color, Nylon 6.6, 1/4 in H, -76 to 185 deg F
Panduit - CCH25-S10-C0 - Features
- Easy hand installation with low insertion force and economical assembly for a wide variety of applications
- Used where metal cushion clamps are typically used and eliminates the need for secondary fasteners
- 1-piece design significantly reduces installation time and provides the lowest installed cost
- Prevents rotation of wire bundles and ensures secure grip on hoses with integrated ribs
- Designed to withstand years of use in a variety of environments
- Weather-resistant nylon 6.6 material
- Durable nylon cable clamps
Specifications
Specifications
Panduit - CCH25-S10-C0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CCH25-S10-C0 |
| UNSPSC Code | 31162900 |
| Note | Not available in Japan |
| Product Type | Cable Clamp |
| Application | For securing wires and cables via fixed diameter clamping |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 0.25 |
| Maximum Bundle Diameter (mm) | 6.4 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Diameter (In.) | 0.203 |
| Mounting Hole Diameter (mm) | 5.1 |
| Overall Length (In.) | 0.635 |
| Overall Length (mm) | 16.15 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Overall Height (In.) | 0.35 |
| Overall Height (mm) | 8.9 |
| UPC | 07498355147 |
Panduit - CCH25-S10-C0 - Videos
| Panduit CCH25-S10-C0 Video 1 | Click to View |
|---|
