Brand: Panduit
|
SKU:
9774697

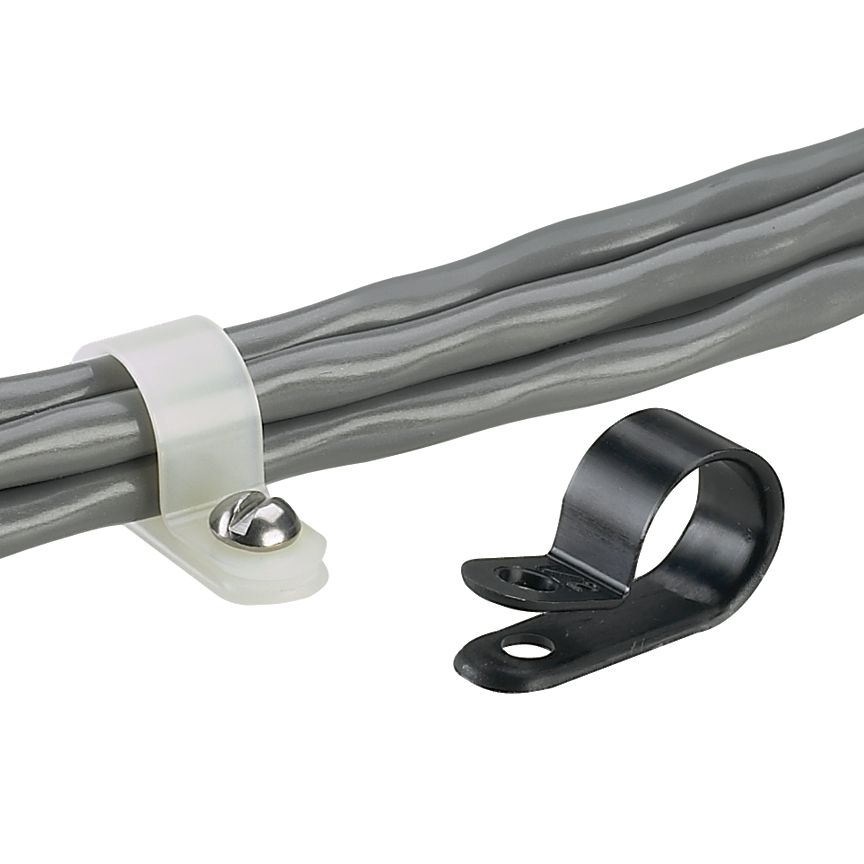

Panduit CCH38-S10-M0 | Cable Clamp | UPC - 07498359847
Regular price
$245.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CCH38-S10-M0 | Cable Clamp | UPC - 07498359847
Regular price
$245.63
Unit price
Description
Description
Panduit Cable Clamp, Fixed Diameter Heavy Duty, 0.38 in Conduit, 0.2 in OD, Threaded Mounting, Specifications: 0.53 in Bundle Offset, 0.38 in Dia Bundle, Black Color, Nylon 6.6, Black, 13.5 mm L x 12.7 mm W x 9.5 mm H Dimensions, -76 to 185 deg F
Features + Benefits
- Easy hand installation with low insertion force and economical assembly for a wide variety of applications
- Used where metal cushion clamps are typically used and eliminates the need for secondary fasteners
- 1-piece design significantly reduces installation time and provides the lowest installed cost
- Prevents rotation of wire bundles and ensures secure grip on hoses with integrated ribs
- Designed to withstand years of use in a variety of environments
- Weather-resistant nylon 6.6 material
Panduit CCH38-S10-M0 Key Specs
| Note | Not available in Japan |
| Product Type | Cable Clamp |
| Color | Black |
| Environment | Outdoor |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 0.38 |
| Maximum Bundle Diameter (mm) | 9.6 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | #10 (M5) Screw |
| Mounting Hole Diameter (In.) | 0.2 |
| Mounting Hole Diameter (mm) | 5.1 |
| Overall Height (In.) | 0.38 |
| Overall Height (mm) | 9.6 |
| Overall Length (In.) | 0.53 |
| Overall Length (mm) | 13.5 |
| Overall Width (In.) | 0.5 |
| Overall Width (mm) | 12.7 |
| Resistance Properties | Flame-Resistant and Weather Resistant |
| Standards Met | UL Recognized E136577, RoHS Compliant |
| Maximum Flange Thickness (In.) | 0.05 |
| Maximum Flange Thickness (mm) | 1.3 |
Panduit CCH38-S10-M0 Data Sheets
| Selection Guides | Selection Guide - WW-WASG03 Electrical Wire Sizes-WEB 7-7-11 | Download and View |
| Part Drawings | Part Drawing - PDF - CCH_02 | Download and View |
