Brand: Panduit
|
SKU:
CCS12-S8-C

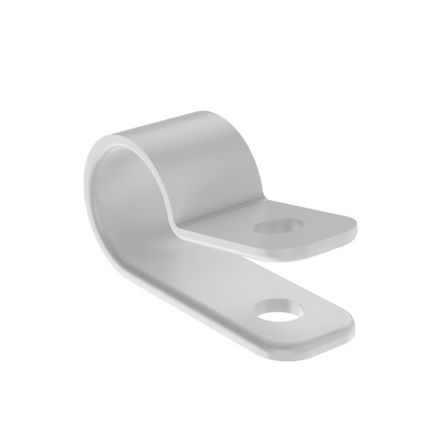

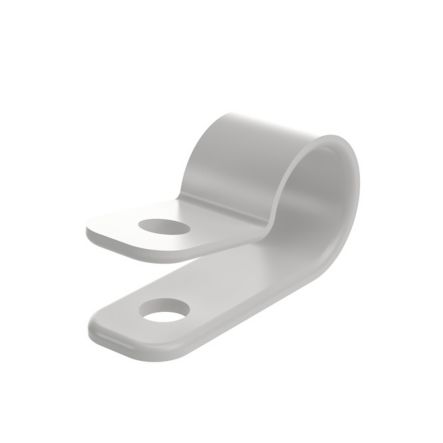

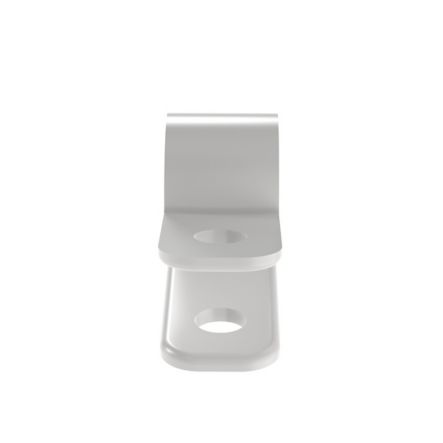

Panduit CCS12-S8-C | Fixed Diameter Clamp, .12"; (3.2mm) Maximum Bundle Diameter, #8 Screw (M4), White, Pack of 100
Regular price
$27.06
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CCS12-S8-C | Fixed Diameter Clamp, .12"; (3.2mm) Maxim...
Regular price
$27.06
Unit price
Description
Description
Panduit CCS12-S8-C | CCS12-S8-C Cable Clamp
The fixed diameter cable clamp uses a #8 (M4) screw and has a maximum bundle diameter of .12" (3.2mm). It is white and comes in packages of 100.
Panduit - CCS12-S8-C - Features
- Fixed Diameter Cable Clamp
- Durable nylon cable clamps
Specifications
Specifications
Panduit - CCS12-S8-C - Product Categories
- Wire Routing, Management & Protection
- Cable Clamps & Clips & Conduit Clamps & Clips
Panduit - CCS12-S8-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CCS12-S8-C |
| Item Description | CCS12-S8-C Cable Clamp |
| Application | For securing wires and cables via fixed diameter clamping |
| Note | Not available in Japan |
| Product Type | Cable Clamp |
| Color | Natural |
| Environment | Indoor |
| Finish/Coating | None |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 0.12 |
| Maximum Bundle Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | #8(M4) Screw |
| Mounting Hole Diameter (In.) | 0.167 |
| Mounting Hole Diameter (mm) | 4.2 |
| Overall Height (In.) | 0.22 |
| Overall Height (mm) | 5.7 |
| Overall Length (In.) | 0.44 |
| Overall Length (mm) | 11.25 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Standards Met | UL Recognized E136577, RoHS Compliant |
| Maximum Flange Thickness (In.) | 0.05 |
| Maximum Flange Thickness (mm) | 1.3 |
Panduit - CCS12-S8-C - Package Information
| UPC | 07498359990 |
|---|---|
| Standard Pkg. Qty. | 100 |
| Standard Package Volume (cf) | 0.0266 |
| Standard Ctn. Qty. | 500 |
| Standard Ctn. Volume (cf) | 0.1329 |
Panduit - CCS12-S8-C - Videos
| Video 1 | Click to View |
|---|
