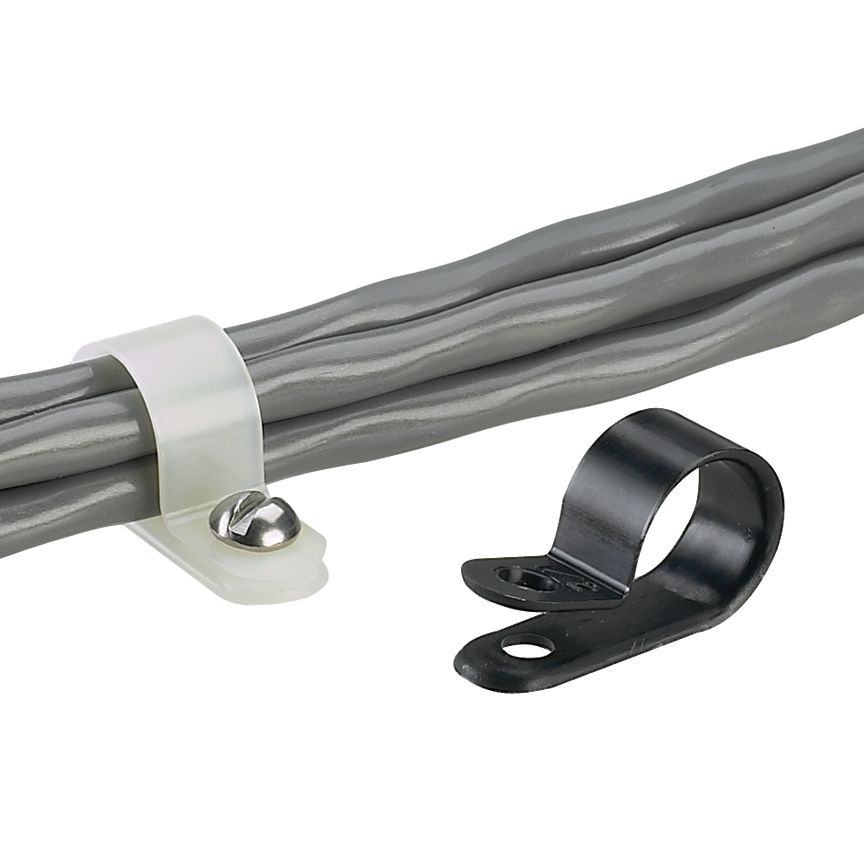

Panduit CCS12-S8-C0 | Fixed Diameter Cable Clamp
Description
Description
Panduit is a global leader in comprehensive physical infrastructure solutions. Issues such as convergence, interoperability, scalability and continuity need to be addressed to reduce risk across the it, facilities and manufacturing physical infrastructure. Our holistic approach enables business continuity through robust, leading edge systems that optimize design and deployment of the physical infrastructure delivering maximum reliability, availability, security, integration and safety.
Panduit Cable Clamp, Fixed Diameter Weather-Resistant, 0.12 in Conduit, 0.17 in OD, Threaded Mounting, Specifications: #8 (M4) Screw, 0.33 in Bundle Offset, 0.12 in Maximum Bundle Diameter, Black Color, Nylon 6.6, Black, 8.4 mm L x 9.4 mm W x 3.1 mm H Dimensions, -76 to 185 deg F
For fixed diameters, secure your cables quickly and easily with our cable clamp, perfect for keeping your wiring organized and tidy.
Fixed diameter cable clamp, #8 screw (M4), .12" (3.2mm) bundle, black, standard package.
Panduit - CCS12-S8-C0 - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 24 in connector variant
- 12 fibers
- Easy hand installation with low insertion force and economical assembly for a wide variety of applications
- Used where metal cushion clamps are typically used and eliminates the need for secondary fasteners
- 1-piece design significantly reduces installation time and provides the lowest installed cost
- Prevents rotation of wire bundles and ensures secure grip on hoses with integrated ribs
- Designed to withstand years of use in a variety of environments
Specifications
Specifications
Panduit - CCS12-S8-C0 - Specifications
| UNSPSC Code | 43223300 |
|---|---|
| Technical Information | UL Recognized E136577, RoHS Compliant |
| Note | Not available in Japan |
| Product Type | Cable Clamp |
| Application | For securing wires and cables via fixed diameter clamping |
| Color | Black |
| Environment | Indoor/Outdoor |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 0.12 |
| Maximum Bundle Diameter (mm) | 3 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | Screw-On |
| Mounting Hole Diameter (In.) | 0.167 |
| Mounting Hole Diameter (mm) | 4.2 |
| Screw Size | #8 |
| Overall Length (In.) | 0.44 |
| Overall Length (mm) | 11.3 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Overall Height (In.) | 0.22 |
| UPC | 07498354886 |
Panduit - CCS12-S8-C0 - Package Information
| UPC | 07498354886 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0370 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1850 |
Panduit - CCS12-S8-C0 - Videos
| Panduit CCS12-S8-C0 Videos | Click to View |
|---|
