Panduit CCS50-S8-C | CCS50-S8-C Cable Clamp
Regular price
$1.46
Unit price
Brand: Panduit
|
SKU:
262603-EA
Regular price
$1.46
Unit price
Description
Description

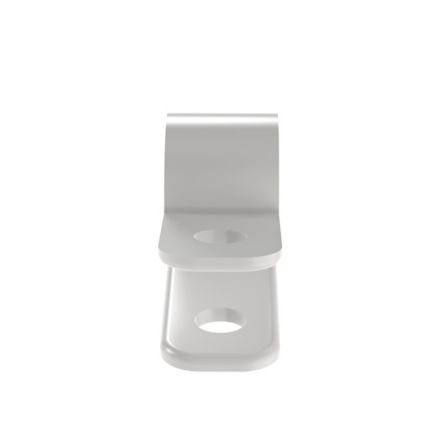

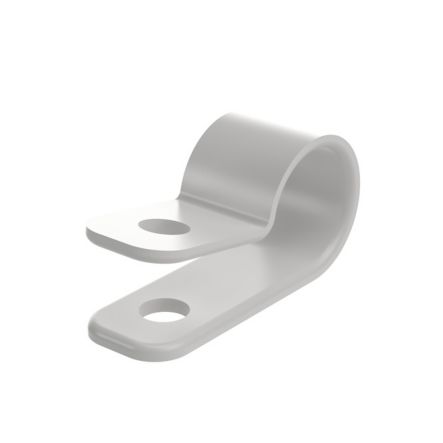

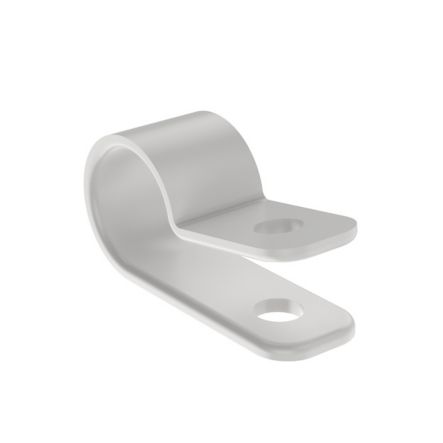

Panduit CCS50-S8-C | CCS50-S8-C Cable Clamp
Fixed diameter cable clamp, #8 screw (M4), .50" (12.7mm) bundle, white, standard package.
Panduit CCS50-S8-C - STRAP - 3/8" NYLON STRAP
Specifications
Specifications
Panduit - CCS50-S8-C - Product Categories
- Wire Routing, Management & Protection
- Cable Clamps & Clips & Conduit Clamps & Clips
Panduit - CCS50-S8-C - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CCS50-S8-C |
| Item Description | CCS50-S8-C Cable Clamp |
| Application | For securing wires and cables via fixed diameter clamping |
| Note | Not available in Japan |
| Product Type | Cable Clamp |
| Color | Natural |
| Environment | Indoor |
| Finish/Coating | None |
| Material | Nylon 6.6 |
| Maximum Bundle Diameter (In.) | 0.5 |
| Maximum Bundle Diameter (mm) | 12.7 |
| Maximum Operating Temperature (°C) | 85 |
| Maximum Operating Temperature (°F) | 185 |
| Minimum Operating Temperature (°C) | -60 |
| Minimum Operating Temperature (°F) | -76 |
| Mount Method | #8(M4) Screw |
| Mounting Hole Diameter (In.) | 0.167 |
| Mounting Hole Diameter (mm) | 4.2 |
| Overall Height (In.) | 0.6 |
| Overall Height (mm) | 15.3 |
| Overall Length (In.) | 0.9 |
| Overall Length (mm) | 22.85 |
| Overall Width (In.) | 0.37 |
| Overall Width (mm) | 9.4 |
| Standards Met | UL Recognized E136577, RoHS Compliant |
| Maximum Flange Thickness (In.) | 0.05 |
| Maximum Flange Thickness (mm) | 1.3 |
Panduit - CCS50-S8-C - Package Information
| UPC | 07498359996 |
|---|---|
| Standard Package Quantity | 100 |
| Standard Package Volume (cf) | 0.0266 |
| Standard Ctn. Quantity | 500 |
| Standard Ctn. Volume (cf) | 0.1329 |
Panduit - CCS50-S8-C - Videos
| Video 1 | Click to View |
|---|
