Panduit CCSSQD2226-X | Cable Cleat,QD Clamp Type,316L SS,Quad,22-26...
Description
Description

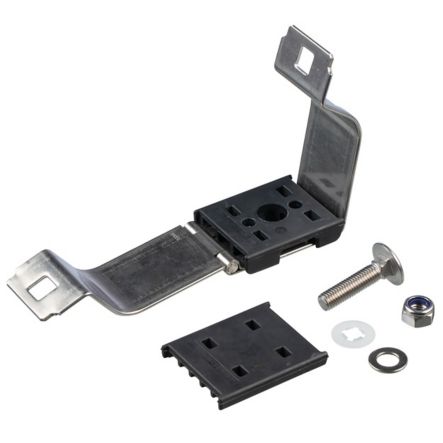

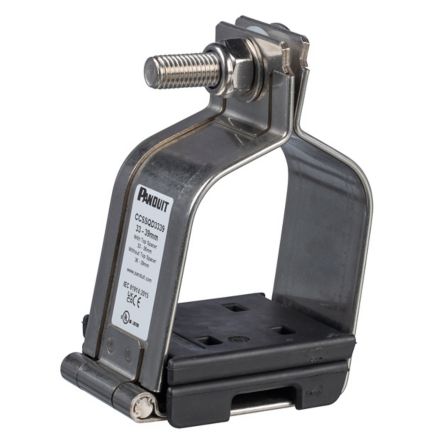

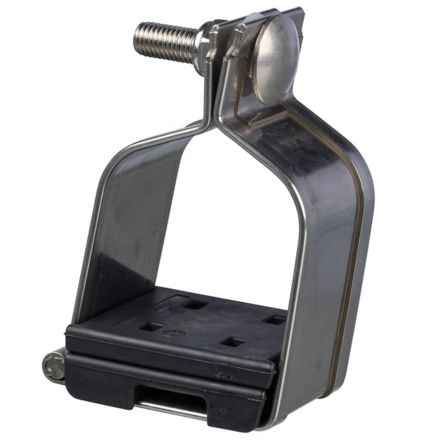

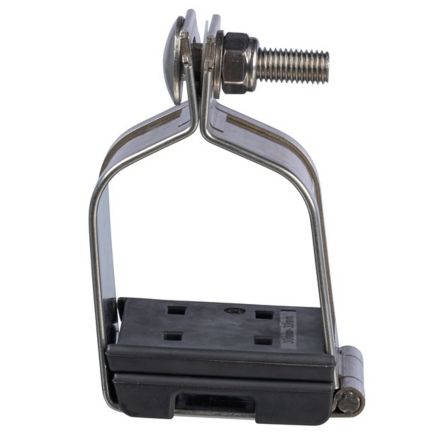

The CCSSQD2226-X Stainless Steel Quadrafoil Cable Cleat offers protection against extreme environments and high short circuit current faults. The cable cleat is certified to IEC 61914, tested up to 169kA peak fault current, and retains cables in the event of a short circuit fault. Compatible with cable diameter of 22-26mm and installs using a separately sold mounting bracket or direct to the cable tray rung via fixing hole and user-supplied M8 bolt. Features 316L SS and removable spacer.
Panduit CCSSQD2226-X | Cable Cleat,Qd Clamp Type,316L Ss,Quad,22-26Mm Od,Pk10
Panduit - CCSSQD2226-X - Features
- The CCSSQD2226-X Stainless Steel Quadrafoil Cable Cleat offers protection against extreme environments and high short circuit current faults. The cable cleat is certified to IEC 61914, tested up to 169kA peak fault current, and retains cables in the ev ent of a short circuit fault. Compatible with cable diameter of 22-26mm and installs using a separately sold mounting bracket or direct to the cable tray rung via fixing hole and user-supplied M8 bolt. Features 316L SS and removable spacer.
- Technical Information: IEC 61914
Specifications
Specifications
Panduit - CCSSQD2226-X - Product Categories
- Wire Routing, Management & Protection
- Cable Bundling Straps & Tools
Panduit - CCSSQD2226-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CCSSQD2226-X |
| Item Description | Cable Cleat,QD Clamp Type,316L SS,Quad,22-26mm OD,PK10 |
| Application | Short-Circuit Protection |
| Product Type | Stainless Steel Cable Cleat |
| Color | Natural |
| Environment | Harsh/Indoor/Outdoor |
| For Use With | Cables in a Quad Configuration w/a Cable Diameter of 22-26mm |
| Material | 316 Stainless Steel |
| Maximum Installation Temperature (°C) | 60 |
| Maximum Installation Temperature (°F) | 140 |
| Minimum Installation Temperature (°C) | -40 |
| Minimum Installation Temperature (°F) | -40 |
| Maximum Operating Temperature (°C) | 60 |
| Maximum Operating Temperature (°F) | 160 |
| Minimum Operating Temperature (°C) | -40 |
| Minimum Operating Temperature (°F) | -40 |
| Resistance Properties | Flame-Resistant |
| Standards Met | IEC 61914 |
Panduit - CCSSQD2226-X - Package Information
| UPC | 61305683066 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.2693 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
