Brand: Panduit
|
SKU:
1026507

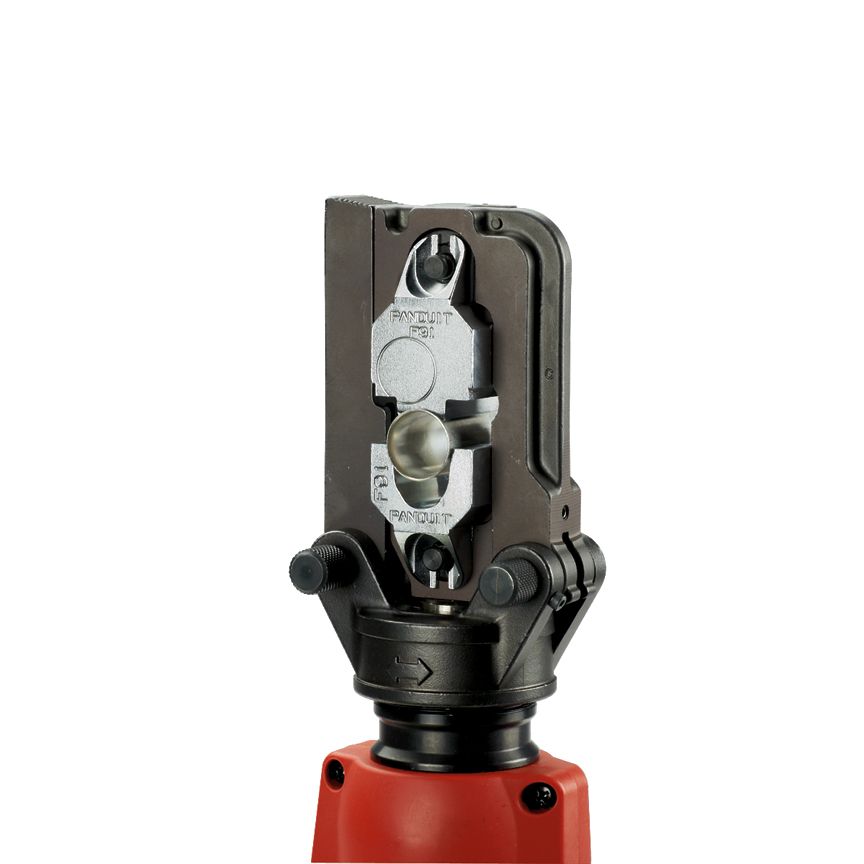

Panduit CD-2001-F92 | Ferrule Crimp Die | UPC - 07498358714
Regular price
$765.29
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CD-2001-F92 | Ferrule Crimp Die | UPC - 07498358714
Regular price
$765.29
Unit price
Description
Description
Die insert used with CT-2001 or CT-3001 (sold separately) to crimp Panduit 300 kcmil (150mm2) ferrules and ferrules with sleeves (F92 and FSD92 series).
Panduit CD-2001-F92 Key Specs
| Compatible Connector | F92 and FSD92 Series Ferrules |
| Copper Conductor Size (kcmil) | 300 |
| Flex Conductor Size (kcmil) | 300 |
| For Use With | Die Insert Used with CT-2001 or CT-3001 (Sold Separately) to Crimp Panduit 300 kcmil (150mm2) Ferrules and Ferrules with Sleeves (F92 and FSD92 Series) ** Excludes Blackfin Tools (CT-3001/ST and CT-3001/CCP) |
| Application | These crimp dies are used to crimp ferrules to improve the quality and the installation of flex cable in a variety of mechanical connectors, which are found on circuit breakers, contactors, power distribution blocks and other devices. |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Product Type | Ferrule Crimp Die |
| Part Features | Die life: 50,000 cycles Material: 4140 Steel/RC 32-35 Mounting style: Snap-in Plating: Chrome Weight approximately: 0.65 lb. per die set |
| Wire Range (mm²) | 150.0 |
Panduit CD-2001-F92 Data Sheets
| Part Drawings | CD-2001-F92 - Ferrule Crimp Die Insert | Download and View |
| Installation Documents | CD-2001-FXX Installation Instructions | Download and View |
| Catalog Cut Sheets | Tool Solutions Large Ferrule Crimping Dies | Download and View |
