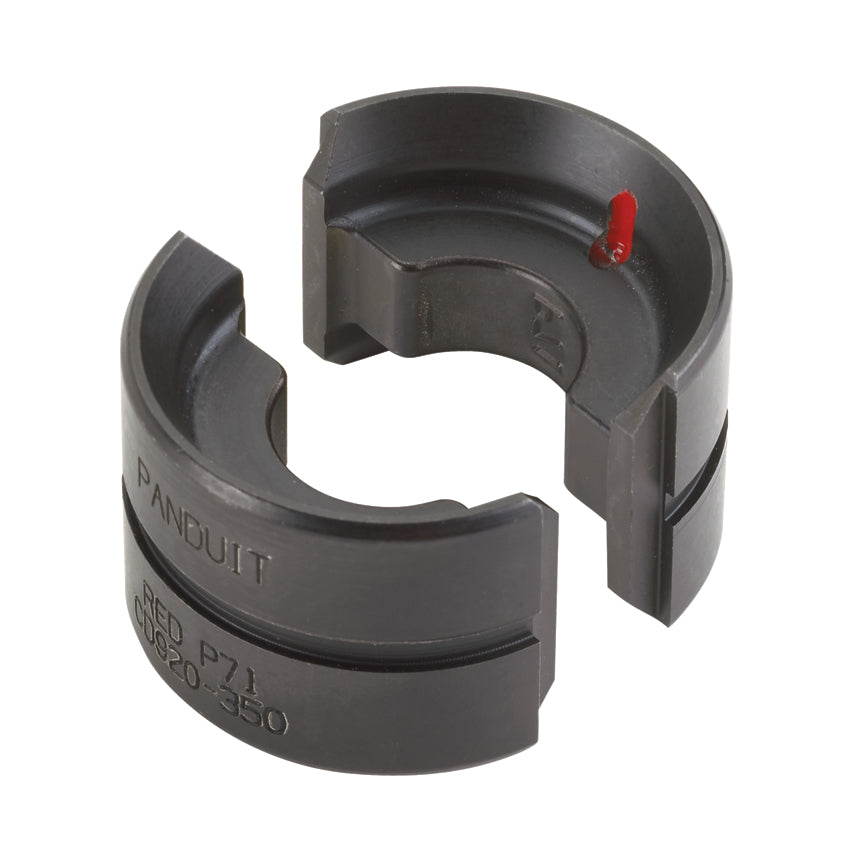

Panduit CD-920-1/0 | Pan-Lug CD-920 Crimp Dies, 1/0, Black Oxide, S...
Description
Description
Ensure superior electrical and mechanical connections on large-gauge copper lugs and splices for heavy-duty power applications with our crimp die set.
Crimp Die for CT-920, CT-2920, CT-930, CT-930CH, CT-2930, CT-2931, CT-940CH and CT-2940 Tools, Die Color Code and Die Index Number for Copper Connectors is Pink P42, Die Color Code and Die Index Number for Aluminum Connectors is Pink P42, Crimping dies and connectors are color-coded for easy matching, Embosses die index number on connector barrels for post crimp inspection, Part number permanently marked on crimping die for easy identification, Provides circumferential crimp results in terminations with premium electrical and mechanical performance.
The CD-920-1/0 Crimp Die provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimping die for easy identification. Crimp die designed for use with Panduit CT-920, CT-920CH, CT-930, CT-930CH, and CT-2920 tools.
Panduit - CD-920-1/0 - Features
- Crimping dies and connectors are color-coded for easy matching
- Embosses die index number on connector barrels for post crimp inspection
- Part number permanently marked on crimping die for easy identification
- Provides circumferential crimp results in terminations with premium electrical and mechanical performance
- Used in Panduit crimping tools
Specifications
Specifications
Panduit - CD-920-1/0 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CD-920-1/0 |
| Copper Type | Crimp |
| Type | Copper |
| UNSPSC Code | 27112820 |
| Product Type | Crimp Die |
| Sub Brand | Pan-Lug |
| Application | Crimp dies for Panduit Power Connectors and Splices. |
| Color Code | Pink |
| Aluminum Conductor Size (AWG) | 2 |
| Copper Conductor Size (AWG) | 1/0 |
| Flex Conductor Size (AWG) | 1 |
| Panduit Die Index Number | P42 |
| For Use With | Crimp die for use with Panduit CT-920, CT-2920, CT-930, CT-2930/L, CT-2930/LE, CT-2931 and CT-2931/E crimp tools and CT-930/CH and CT-930LPCH crimp heads, can also be used with Panduit CT-2940/L and CT-2940/LE crimp tools and CT-940CH crimp head with CD-940-DA die adapter sold separately. |
| Connection Type | Crimp |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Finish/Coating | Black Oxide |
| Part Features | Color coded to connector,premium crimp,embosses die number |
| UPC | 07498391443 |
Panduit - CD-920-1/0 - Videos
| Panduit CD-920-1/0 Video 1 | Click to View |
|---|---|
| Panduit CD-920-1/0 Video 2 | Click to View |
