Brand: Panduit
|
SKU:
CD-920-1

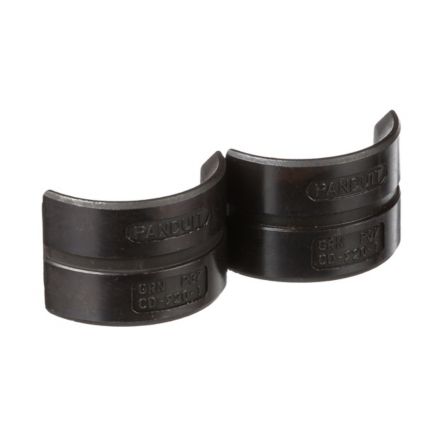

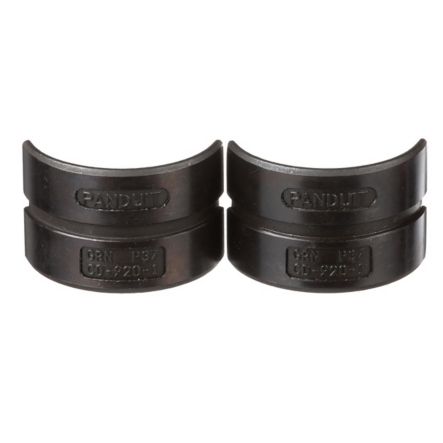

Panduit CD-920-1 | Pan-Lug CD-920-1 CD-920 Crimp Dies, 1, Black Oxide, Steel, PK1
Regular price
$301.34
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CD-920-1 | Pan-Lug CD-920-1 CD-920 Crimp Dies, 1, Black Oxi...
Regular price
$301.34
Unit price
Description
Description
Panduit CD-920-1 | Pan-Lug CD-920-1 CD-920 Crimp Dies, 1, Black Oxide, Steel, PK1
The CD-920-1 Crimp Die provides circumferential crimp results in terminations with premium electrical and mechanical performance with Panduit copper compression lugs and splices. Crimping dies and connectors are color-coded for easy matching while the part number is permanently marked on the crimping die for easy identification. Crimp die designed for use with Panduit CT-920, CT-920CH, CT-930, CT-930CH, and CT-2920 tools.
Panduit - CD-920-1 - Features
- Crimp Die for CT-920, CT-2920, CT-930, CT-930CH, CT-2930, CT-2931, CT-940CH and CT-2940 Tools, Die Color Code and Die Index Number for Copper Connectors is Green P37, Die Color Code and Die Index Number for Aluminum Connectors is Green P37, Crimping dies and connectors are color-coded for easy matching, Embosses die index number on connector barrels for post crimp inspection, Part number permanently marked on crimping die for easy identification, Provides circumferential crimp results in terminations with premium electrical and mechanical performance.
- Crimping dies and connectors are color-coded for easy matching
- Embosses die index number on connector barrels for post crimp inspection
- Part number permanently marked on crimping die for easy identification
- Provides circumferential crimp results in terminations with premium electrical and mechanical performance
- Used in Panduit crimping tools
Specifications
Specifications
Panduit - CD-920-1 - Product Categories
- Wire Termination
- Crimping Tools, Pumps & Accessories
Panduit - CD-920-1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CD-920-1 |
| Item Description | Pan-Lug CD-920-1 CD-920 Crimp Dies, 1, Black Oxide, Steel, PK1 |
| Aluminum Conductor Size (AWG) | 4 |
| Copper Conductor Size (AWG) | 1 |
| Metric Class 2r Copper Conductor Size (mm²) | 50 |
| Panduit Die Index Number | P37 |
| Color Code | Green |
| For Use With | Crimp die for use with Panduit CT-920, CT-2920, CT-930, CT-2930/L, CT-2930/LE, CT-2931 and CT-2931/E crimp tools and CT-930/CH and CT-930LPCH crimp heads, can also be used with Panduit CT-2940/L and CT-2940/LE crimp tools and CT-940CH crimp head with CD-940-DA die adapter sold separately. |
| Connection Type | Crimp |
| Sub Brand | Pan-Lug |
| Application | Crimp dies for Panduit Power Connectors and Splices. |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Finish/Coating | Black Oxide |
| Product Type | Crimp Dies |
| Part Features | Color coded to connector,premium crimp,embosses die number |
Panduit - CD-920-1 - Package Information
| UPC | 07498391442 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0087 |
| Standard. Ctn. Quantity | 0 |
| Standard. Ctn. Volume (cf) | 0.0000 |
Panduit - CD-920-1 - Videos
| Video 1 | Click to View |
|---|
