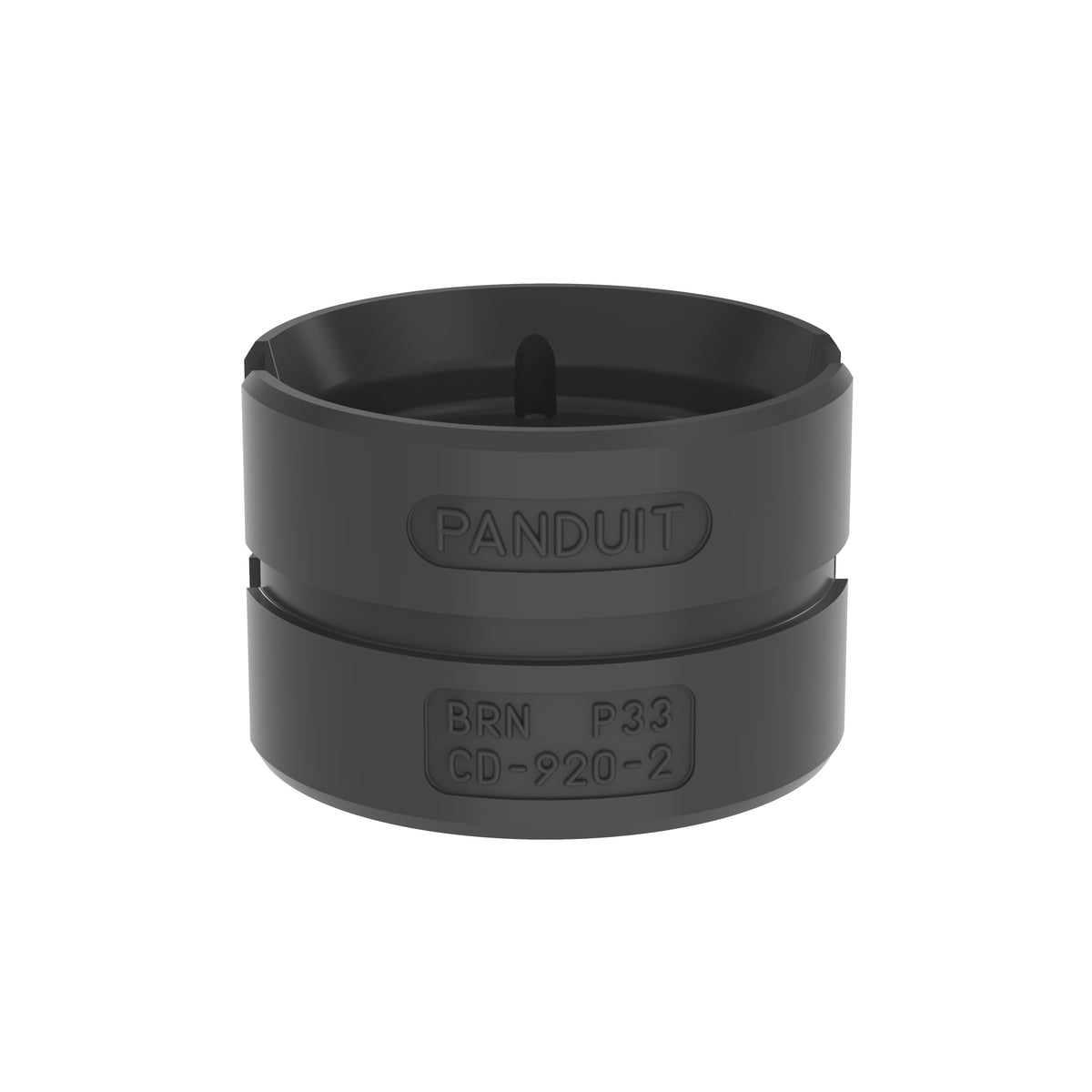

Panduit CD-920-2 | CD-920 Crimp Dies | UPC - 07498391441
Regular price
$301.34
Unit price
Brand: Panduit
|
SKU:
CD-920-2
Regular price
$301.34
Unit price
Description
Description
Panduit Crimping Die, Series: CD-920, 2 AWG Cable, Steel
Features + Benefits
- Embosses die index number on connector barrels to provide post crimp inspection
- Color coded to provide easy matching to color coding marked on connectors
- Color coded to connector, premium crimp, embosses die number
- Part number permanently marked on crimping die for easy identification
- Provide circumferential crimp results in terminations with premium electrical and mechanical performance
Panduit CD-920-2 | CD-920 Crimp Dies | UPC - 07498391441 Key Specs
| Copper Conductor Size (AWG) | 2 |
| Flex Conductor Size (AWG) | 2 |
| Panduit Die Index Number | P33 |
| Color Code | Brown |
| For Use With | Crimp die for use with Panduit CT-920, CT-2920, CT-930, CT-2930/L, CT-2930/LE, CT-2931 and CT-2931/E crimp tools and CT-930/CH and CT-930LPCH crimp heads, can also be used with Panduit CT-2940/L and CT-2940/LE crimp tools and CT-940CH crimp head with CD-940-DA die adapter sold separately. |
| Connection Type | Crimp |
| Sub Brand | Pan-Lug |
| Application | Crimp dies for Panduit Power Connectors and Splices. |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Finish/Coating | Black Oxide |
| Product Type | CD-920 Crimp Dies |
| Part Features | Color coded to connector,premium crimp,embosses die number |
Panduit CD-920-2 | CD-920 Crimp Dies | UPC - 07498391441 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - CD-920-8 Product Page | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - CD-920-8 Product Page 1 | Download and View |
| Installation Documents | Crimp Dies for C-920 and C-940: PCTP27416B01-CD920CD940--REV003--ENG | Download and View |
Panduit CD-920-2 | CD-920 Crimp Dies | UPC - 07498391441 Environmental Information
| Panduit's RoHS Statement | Download and View |
