Brand: Panduit
|
SKU:
CD-920-750
Panduit CD-920-750 | CD-920 Crimp Dies | UPC - 07498391456
Regular price
$307.39
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CD-920-750 | CD-920 Crimp Dies | UPC - 07498391456
Regular price
$307.39
Unit price
Description
Description

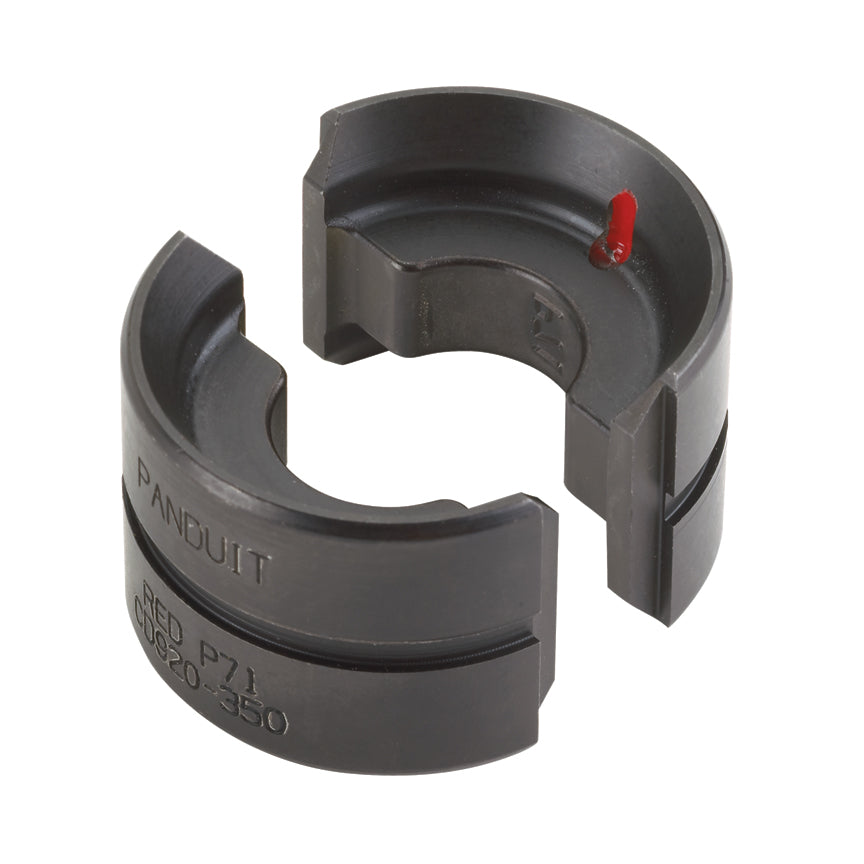

Panduit Crimping Die, Series: CD-920, 750 kcmil Cable, Steel
Features + Benefits
- Embosses die index number on connector barrels to provide post crimp inspection
- Color coded to provide easy matching to color coding marked on connectors
- Color coded to connector, premium crimp, embosses die number
- Part number permanently marked on crimping die for easy identification
- Provide circumferential crimp results in terminations with premium electrical and mechanical performance
Panduit CD-920-750 | CD-920 Crimp Dies | UPC - 07498391456 Key Specs
| Metric Class 2r Conductor Size for Copper Lugs, Splices(mm²) | 400 |
| Aluminum Conductor Size (kcmil) | 600 |
| Copper Conductor Size (kcmil) | 750 |
| Panduit Die Index Number | P106 |
| Color Code | Black |
| Flex Conductor Size (kcmil) | 646 |
| For Use With | Crimp die for use with Panduit CT-920, CT-2920, CT-930, CT-2930/L, CT-2930/LE, CT-2931 and CT-2931/E crimp tools and CT-930/CH crimp head, can also be used with Panduit CT-2940/L and CT-2940/LE crimp tools and CT-940CH crimp head with CD-940-DA die adapter sold separately. |
| Connection Type | Crimp |
| Sub Brand | Pan-Lug |
| Application | Crimp dies for Panduit Power Connectors and Splices. |
| Crimp Profile | Circumferential |
| Base Material | Steel |
| Finish/Coating | Black Oxide |
| Product Type | CD-920 Crimp Dies |
| Part Features | Color coded to connector,premium crimp,embosses die number |
Panduit CD-920-750 | CD-920 Crimp Dies | UPC - 07498391456 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - CD-920-8 Product Page | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - CD-920-8 Product Page 1 | Download and View |
| Installation Documents | Crimp Dies for C-920 and C-940: PCTP27416B01-CD920CD940--REV003--ENG | Download and View |
Panduit CD-920-750 | CD-920 Crimp Dies | UPC - 07498391456 Environmental Information
| Panduit's RoHS Statement | Download and View |
