Brand: Panduit
|
SKU:
699327

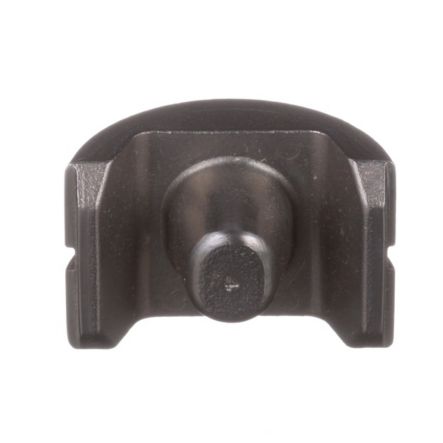

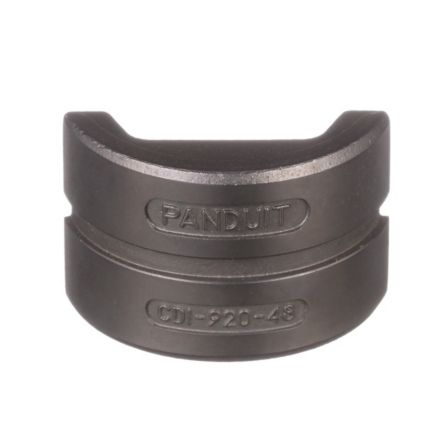

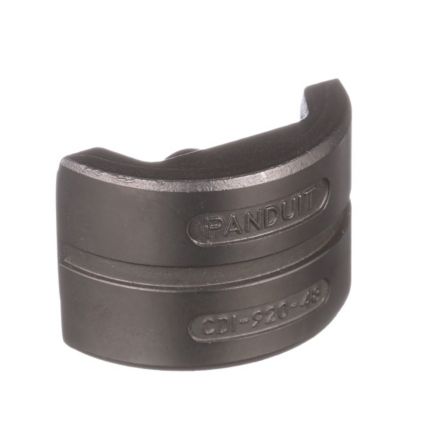

Panduit CDI-920-48 | Pan-Lug Indenter Die,CDI-920-48,Metric Flex,EA
Regular price
$199.63
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CDI-920-48 | Pan-Lug Indenter Die,CDI-920-48,Metric Flex,EA
Regular price
$199.63
Unit price
Description
Description
Panduit CDI-920-48 | Pan-Lug Indenter Die,CDI-920-48,Metric Flex,EA
Indenter crimping die used with Panduit CD-920-250NEST, CD-920-400NEST, CD-920-500NEST dies and specified tools for terminating Panduit metric copper compression lugs and splices used with 70mm2 through 185mm Class 5f and Class 6f flexible strand metric conductor.
Panduit CDI-920-48 | DIE | INDENT DIE,USED W/ PANDUIT
Specifications
Specifications
Panduit - CDI-920-48 - Product Categories
- Wire Termination
- Crimping Tools, Pumps & Accessories
Panduit - CDI-920-48 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CDI-920-48 |
| Item Description | Pan-Lug Indenter Die,CDI-920-48,Metric Flex,EA |
| Compatible Connector | Panduit Copper Compression Metric Lugs and Splices |
| For Use With | CT-920, CT-920/CV, CT-920CH, CT-920CH/CV, CT-920CH/CCP, CT-930, CT-930CH, CT-940CH*, CT-940CH/BJO*, CT-2920, CT-2920/CCP, CT-2920/CCPINT,CT-2920/CCPUK, CT-2920/CCPAUS, CT-2920/CCPTO, CT-2920/CCPBT, CT-2930, CT-2930/L, CT2930/LE, CT-2931, CT-2931/ST, CT-2931/STINT, CT-2931/STUK,CT-2931/STAUS, CT-2931/TO, CT-2931/STBT, CT-2931/STCV, CT-2931/STCVINT, CT-2931/STCVUK, CT-2931/STCVAUS, CT-2931/CVTO, CT-2940*, CT-2940/L*,CT-2940/LE*, CT-2940/ST*, CT-2940/STINT*, CT-2940/STUK*, CT-2940/STAUS*, CT-2940/TO*, CT-2940/STBT* |
| Sub Brand | Pan-Lug |
| Crimp Profile | Indenter |
| Base Material | Steel |
| Finish/Coating | Black Oxide |
| Product Type | CDI-920 Indenter Crimp Die |
| Part Features | Nest and Indenter die termination |
Panduit - CDI-920-48 - Package Information
| UPC | 07498349042 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0087 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
