Panduit CEFXIG-X | Power Rated Fittings | UPC - 07498364937

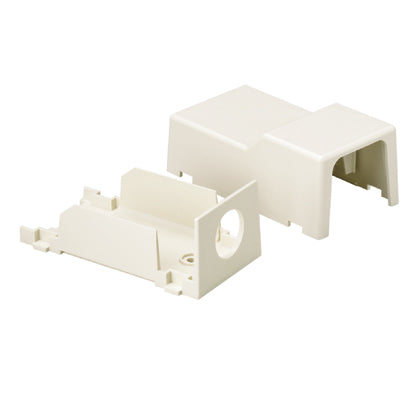

Conduit entrance end fitting. This power rated two-piece fitting is designed to accommodate the entrance of 1/2" conduit or align with knockouts on surface mount electrical boxes. For use with LD3/LDPH3 and has breakouts available to work with LD5/LDPH5 and LD10/LDPH10. Cover and base snap together – no hardware is required. International Gray.

---

Panduit Power Rated Fittings Key Specs

Product Type	Power Rated Fittings
Sub Brand	Pan-Way
Color	International Gray
Fitting Type	Entrance End/Conduit
For Use With	LD3, LDPH3, LD5, LDPH5, LD10, LDPH10
Material	ABS
Mount Method	Snap-On
Raceway Type	Non-Metallic Surface
Standards Met	Ul94V-0, Ft4, Meets TIA/EIA Standards, UL5A Listed, UL Compliant.
Overall Height (In.)	4
Overall Height (mm)	101.6
Overall Length (In.)	1.55
Overall Length (mm)	39.3
Overall Width (In.)	2.11
Overall Width (mm)	53.7
Application	Surface Raceway Products Provide Maximum Flexibility for Routing, Protecting, and Concealing High-Performance Copper, Voice, Video, Fiber Optic, and Electrical Wiring within any Enterprise Environment to Provide an Innovative and Satisfying Office Environ
