Panduit CF10WH-X | Surface Raceway, LD10 Coupler Fitting, White
Regular price
$3.00
Unit price
Brand: Panduit
|
SKU:
143217-EA
Regular price
$3.00
Unit price
Description
Description

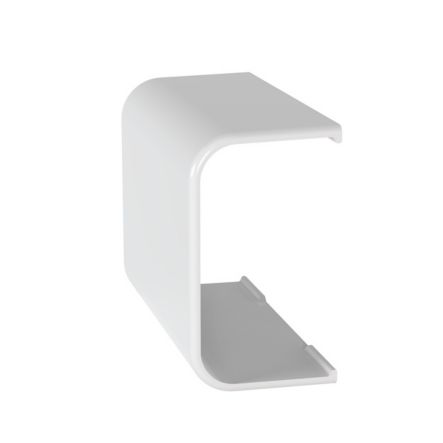

Panduit CF10WH-X | Surface Raceway, LD10 Coupler Fitting, White
The coupler fitting is used to efficiently manage cable placement. It is designed to be used with LD10 Surface Raceway and is a 2 inch length. It meets TIA/EIA Standards, is UL5A Listed, and is UL Compliant. It features a snap-on installation, is made of ABS plastic and is White.
Panduit CF10WH-X - COUPLER - RACEWAY NONMETALLIC SINGLE
Specifications
Specifications
Panduit - CF10WH-X - Product Categories
- Wire Routing, Management & Protection
- Single Channel Raceway
Panduit - CF10WH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CF10WH-X |
| Item Description | Surface Raceway, LD10 Coupler Fitting, White |
| Product Type | Low Voltage Fittings |
| Sub Brand | Pan-Way |
| Color | White |
| Fitting Type | Coupler |
| For Use With | LD10 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Low Voltage |
| Standards Met | Ul94V-0, Ft4, Meets TIA/EIA Standards, UL Compliant. |
| Overall Height (In.) | 0.91 |
| Overall Height (mm) | 23.2 |
| Overall Length (In.) | 2 |
| Overall Length (mm) | 50.8 |
| Overall Width (In.) | 1.6 |
| Overall Width (mm) | 40.6 |
| Application | Surface Raceway Products Provide Maximum Flexibility for Routing, Protecting, and Concealing High-Performance Copper, Voice, Video, Fiber Optic, and Electrical Wiring within any Enterprise Environment to Provide an Innovative and Satisfying Office Environ |
Panduit - CF10WH-X - Package Information
| UPC | 07498358605 |
|---|---|
| Standard Package Quantity | 10 |
| Standard Package Volume (cf) | 0.0370 |
| Standard Ctn. Quantity | 50 |
| Standard Ctn. Volume (cf) | 0.1851 |
Panduit - CF10WH-X - Videos
| Video 1 | Click to View |
|---|
