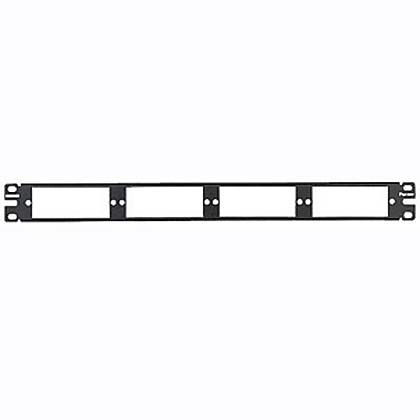

Panduit CFAPPBL1 | Opticom Fiber Patch Panel, Flat, Black, 1 RU
Description
Description
Our fiber patch panel offers options for flexible cable management and seamless integration with various cassettes and fiber optic accessories.
Fiber Adapter Patch Panel 1 Rack Unit for use with FMT1, Mounts to standard EIA 19 Inch rack rails, Standard version holds both QuickNet Fiber Optic Cassettes and Opticom Fiber Adapter Panels, Angled version holds Opticom Fiber Adapter Panels and matches Mini-Com Angled Patch Panel profile, Use with Opticom Rack Mount Fiber Trays to protect fibers and terminations.
The rack mount fiber tray and fiber adapter patch panels shall house, organize, manage and protect fiber optic cable, splices, and connectors. Available in both flat and angled versions, patch panels shall accommodate all Panduit pre-terminated MTP cassettes, fiber adapter panels (FAP), fiber mount panels (FMP), associated trunk cables, connectors, patch cords, and shall include integral cable management. Fiber trays shall be constructed of steel material. Steel cover shall be removable for cabling and connector access during installation. Enclosure shall have multiple knockouts for a variety of trunk cable entry points.
Panduit Opticom Fiber Adapter Panel, 1RU Flat, 4 Ports, Rack Mounting
Panduit - CFAPPBL1 - Features
- Works with all Panduit Opticom fiber optic cassettes and fiber adapter panels - Provides versatility and flexibility with a fully modular solution for a variety of pre-terminated installations, FAP and field termination and splicing installations
- Works with all Panduit LC, SC, ST, MT-RJ and MTP fiber adapter panels and cassettes
- Provides higher patch field density in fewer rack units saving valuable space - Modular design mounts up to four Opticom cassettes or FAP's per RU and up to three Opticom cassettes per RU for the angled fiber optic trays
- Angled design - Allows cable to flow to each side of the rack: patch cords can be routed directly into vertical cable managers
- Fiber optic splice module - Can fusion splice up to 96 fibers per RU in a single enclosure with one-to-one splice-to-patching ratio
- Side and rear cable entry - Provides installer with several options to route cable within the tray
- Patch panel mounting - Hardware provided to allow patch panel to be pre-assembled before mounting to rack
- Provides Versatility and Flexibility with a Fully Modular Solution for a Variety of Pre-Terminated Installations, Fop and Field Termination and Splicing Installations
- Works with All Panduit LC, SC, ST, MT-RJ and MTP Fiber Adapter Panels and Cassettes
- Angl
Specifications
Specifications
Panduit - CFAPPBL1 - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFAPPBL1 |
| UNSPSC Code | 43223328 |
| Overall Depth (In.) | 0.44 |
| Overall Depth (mm) | 11.2 |
| Overall Width (In.) | 19 |
| Overall Width (mm) | 482.6 |
| Overall Height (In.) | 1.72 |
| Overall Height (mm) | 43.7 |
| Number of Ports | 4 |
| Mount Method | DIN Rail |
| Standards Met | RoHS compliant |
| Product Type | Rear Loading Adapter Panel |
| Application | Provide a flexible and modular system for managing fiber termination, connections, and patching for all applications and offer the industry’s highest patch field density and fiber counts for all fiber |
| Color | Black |
| Sub Brand | Opticom |
| UPC | 07498378857 |
Panduit - CFAPPBL1 - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 9403.90.8041 |
