Panduit CFP86S2IWY | Pan-Net Faceplate
Regular price
$3.45
Unit price
Brand: Panduit
|
SKU:
9955710
Regular price
$3.45
Unit price
Description
Description

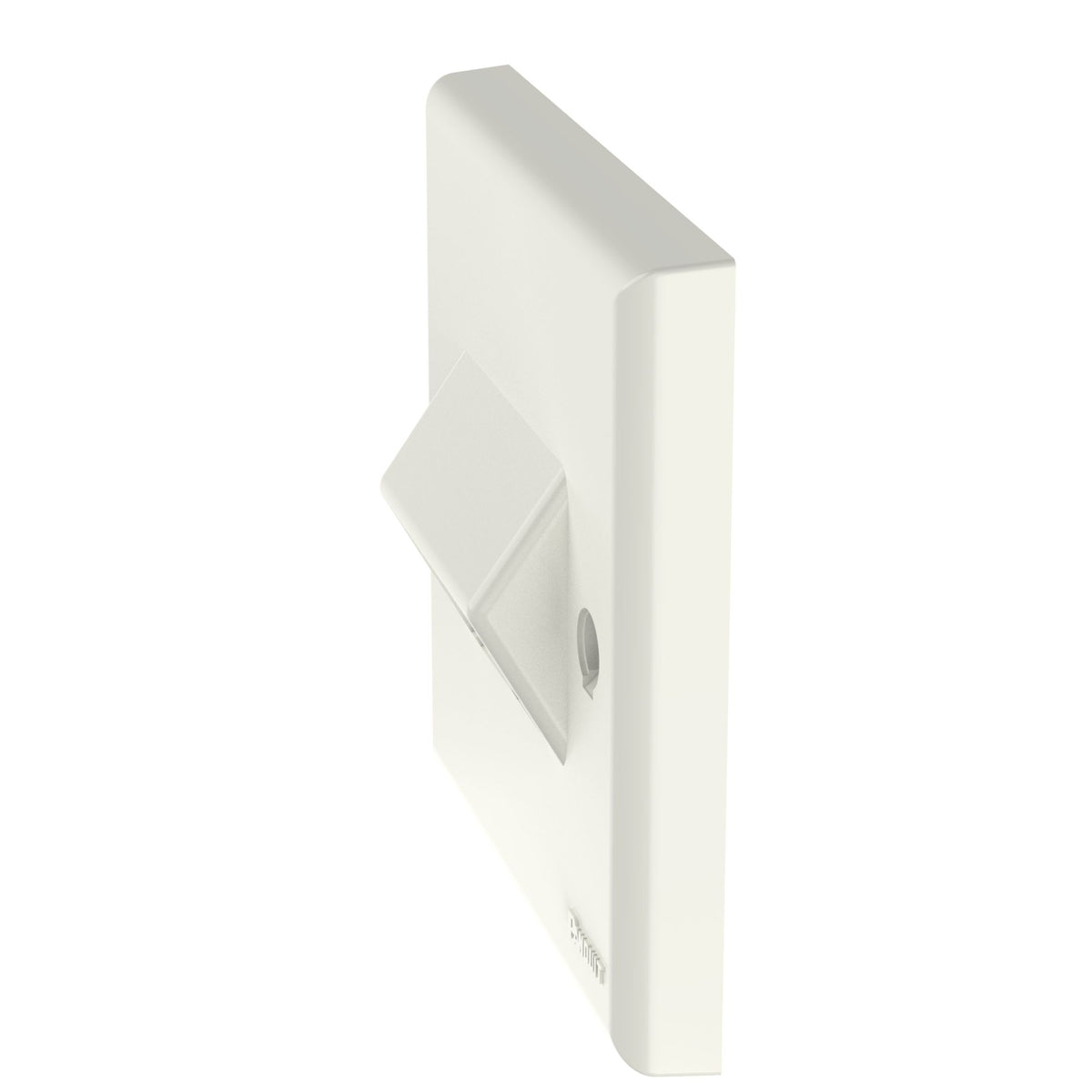

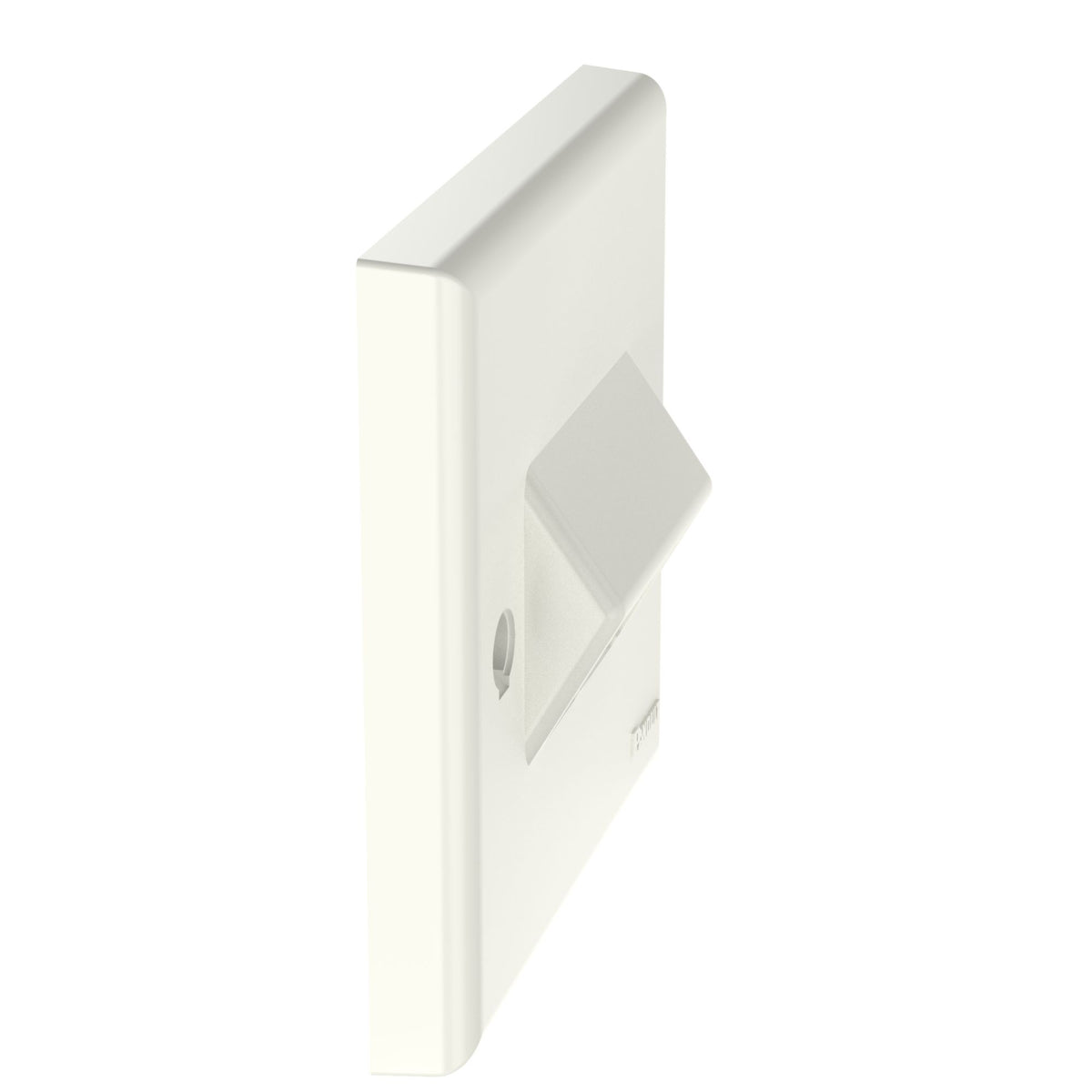

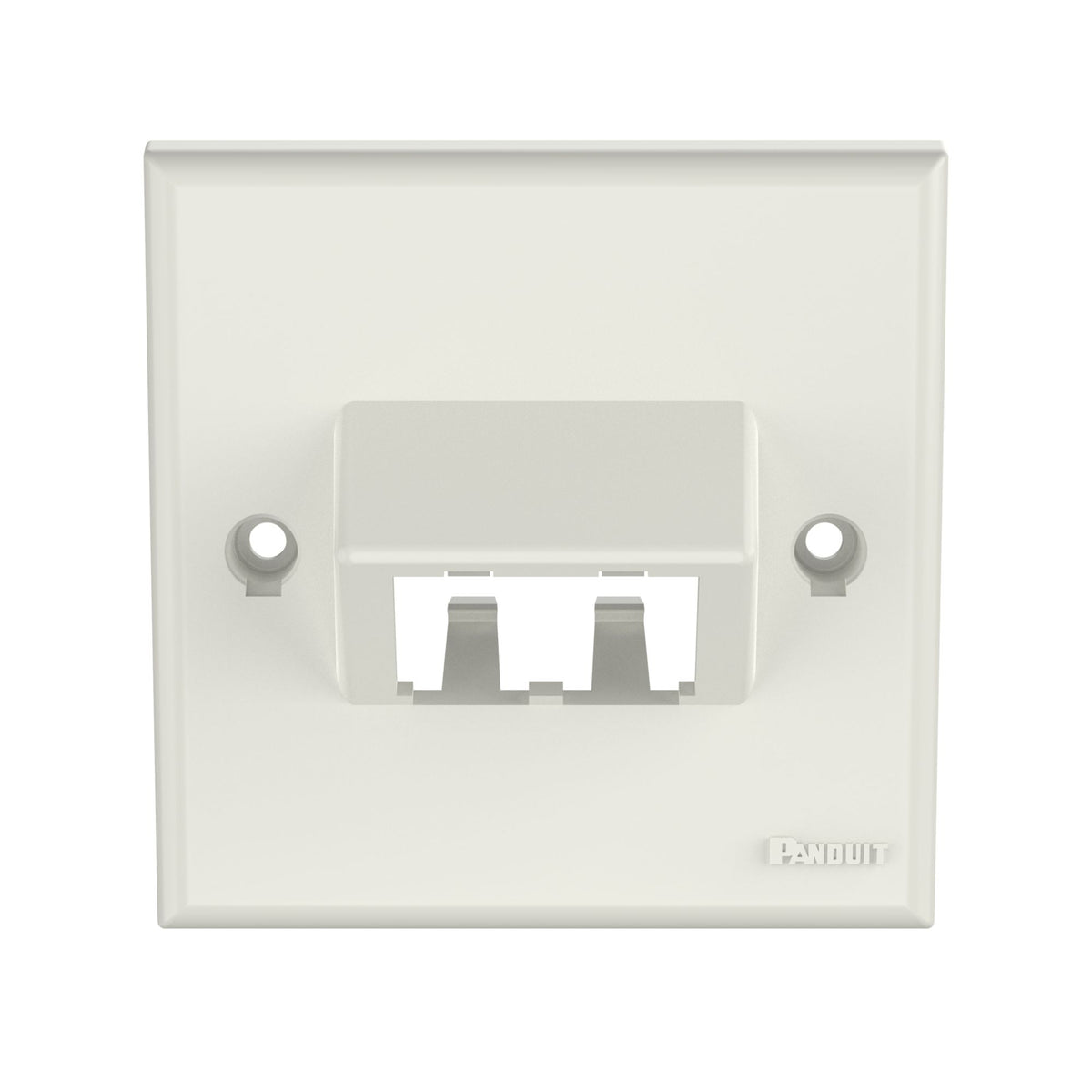

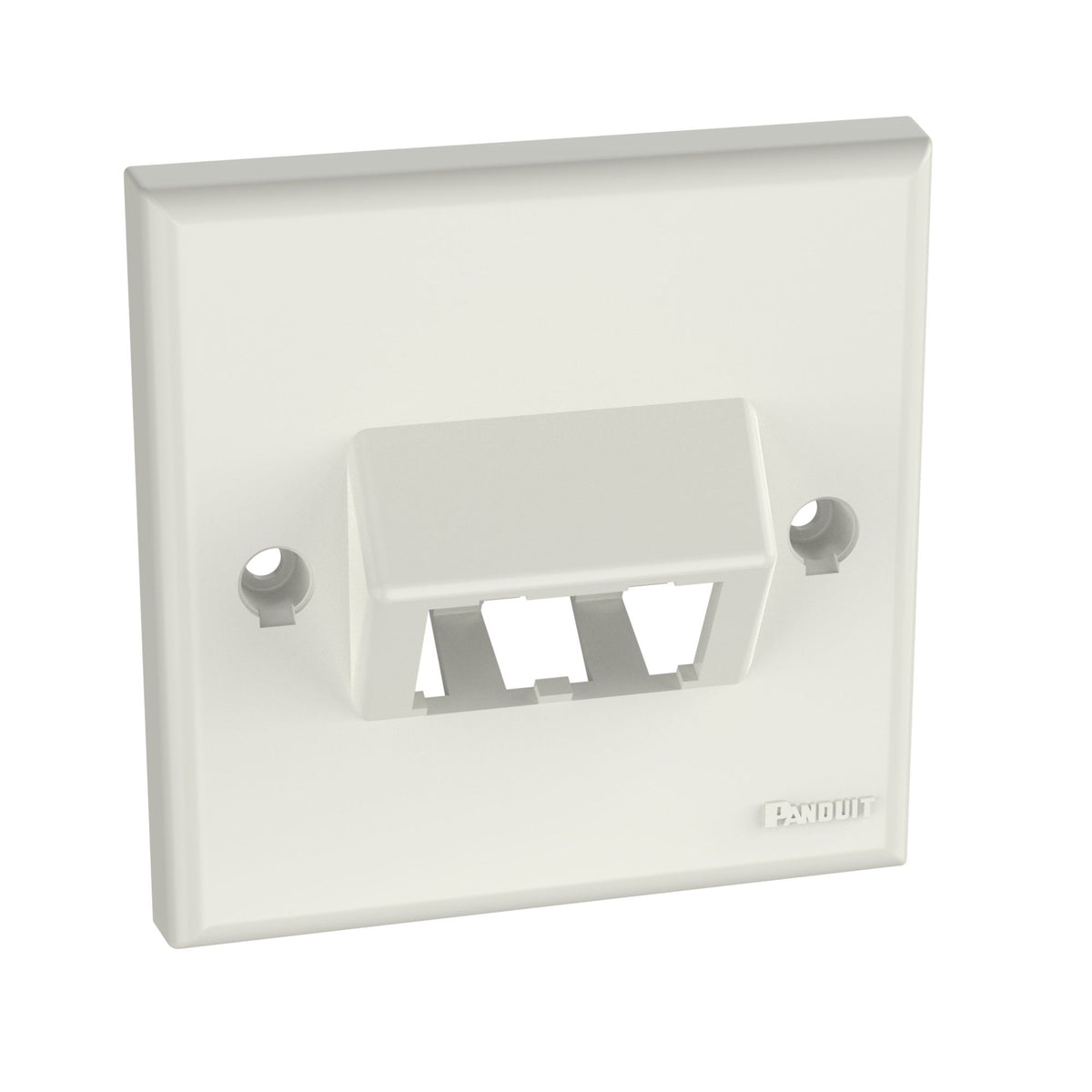

Panduit CFP86S2IWY | Pan-Net Faceplate
The Mini-Com 86mm x 86mm faceplate accepts two Mini-Com Modules. The faceplate has a sloped design to improve bend radius and screw covers to conceal the mounting screws. The faceplate can be identified with an adhesive label and is off white.
Panduit CFP86S2IWY Faceplate, 2 Port,86x86 Sloped, Off White
Specifications
Specifications
Panduit - CFP86S2IWY - Product Categories
- Copper Systems
- Faceplates & Adapters
Panduit - CFP86S2IWY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFP86S2IWY |
| Item Description | Pan-Net Faceplate |
| Product Type | Faceplate |
| Number of Ports | 2 |
| Region | APAC |
| Module Type | Mini-Com |
| Sub Brand | Pan-Net |
| Material | ABS |
| Color | Off White |
| Identification Type | Adhesive Label |
| Outlet Orientation | Sloped |
| Overall Width (In.) | 3.39 |
| Overall Width (mm) | 86.1 |
| Overall Depth (In.) | 1.08 |
| Overall Depth (mm) | 27.43 |
| Overall Height (In.) | 3.39 |
| Overall Height (mm) | 86.1 |
| Gang Opening Type | Single Gang |
| Standards Met | RoHS Compliant |
Panduit - CFP86S2IWY - Package Information
| UPC | 07498303291 |
|---|---|
| Standard Package Quantity | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1755 |
