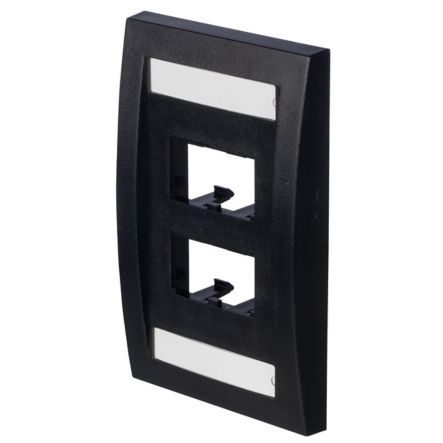

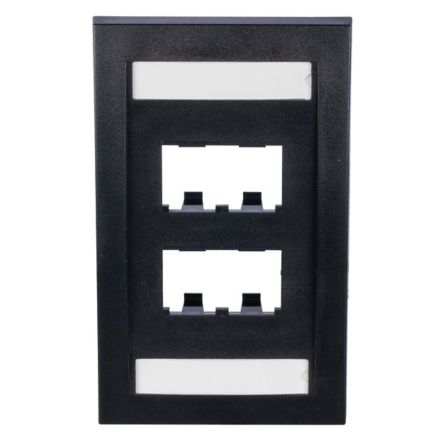

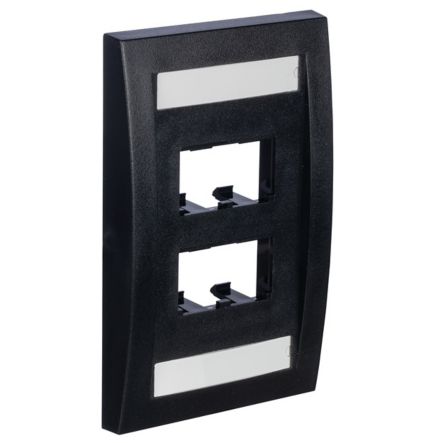

Panduit CFPE4BLY | Faceplate, 4 Port, Single Gang, Executive,Black
Regular price
$5.39
Unit price
Brand: Panduit
|
SKU:
174968
Regular price
$5.39
Unit price
Description
Description
Panduit CFPE4BLY | Mini-Com, Executive, Faceplate, 4 port, Black
The Mini-Com Executive Series Faceplate accepts four Mini-Com Modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a raised rail design on the outer edge of the frame, has a label pocket for easy identification, and is black.
Panduit - CFPE4BLY - Features
- Accept Mini-Com(TM) Modules for STP and UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Include label/label covers for easy port identification
- Raised rail design for aesthetic appeal
Specifications
Specifications
Panduit - CFPE4BLY - Product Categories
- Copper Systems
- Faceplates & Adapters
Panduit - CFPE4BLY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFPE4BLY |
| Item Description | Mini-Com, Executive, Faceplate, 4 port, Black |
| Product Type | Faceplate |
| Number of Ports | 4 |
| Module Type | Mini-Com |
| Sub Brand | Pan-Net |
| Material | ABS |
| Color | Black |
| Identification Type | Label Pocket |
| Outlet Orientation | Flat |
| Overall Width (In.) | 2.75 |
| Overall Width (mm) | 69.85 |
| Overall Depth (In.) | 0.83 |
| Overall Depth (mm) | 21.08 |
| Overall Height (In.) | 4.5 |
| Overall Height (mm) | 114.3 |
| Gang Opening Type | Single Gang |
| Mount Orientation | Vertical |
| Standards Met | RoHS Compliant |
Panduit - CFPE4BLY - Package Information
| UPC | 07498303336 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0185 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1850 |
