Brand: Panduit
|
SKU:
225983

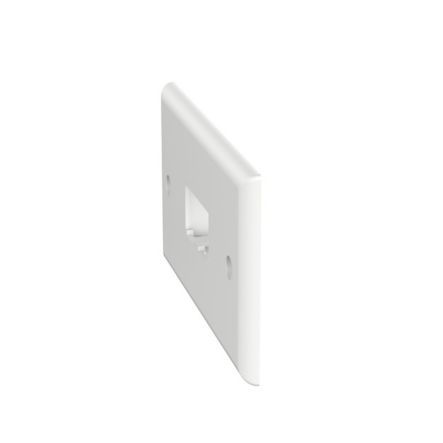

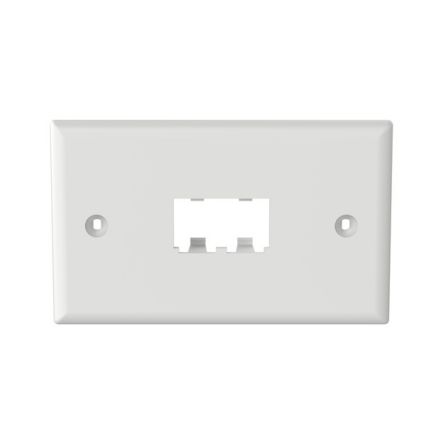

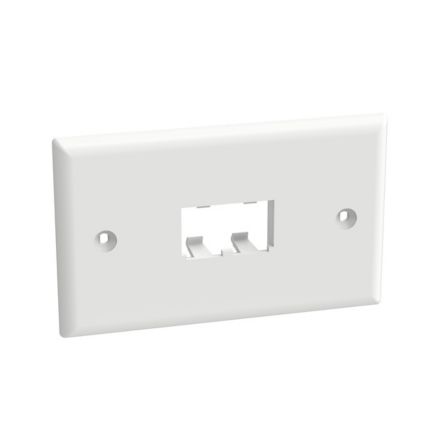

Panduit CFPH2WH | Faceplate, 2 Port, Single Gang, Horizontal, White
Regular price
$5.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CFPH2WH | Faceplate, 2 Port, Single Gang, Horizontal, White
Regular price
$5.44
Unit price
Description
Description
Panduit CFPH2WH | Mini-Com, Horizontal, Faceplate, 2 port,White
The Mini-Com Classic Series Faceplate accepts two Mini-Com Modules. The faceplate has horizontal orientation and mounts to a NEMA standard single gang opening. The faceplate can be identified with adhesive label and is white.
Panduit - CFPH2WH - Features
- Compliments modern office workspace
- Individual modules snap in and out
Specifications
Specifications
Panduit - CFPH2WH - Product Categories
- Copper Systems
- Faceplates & Adapters
Panduit - CFPH2WH - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFPH2WH |
| Item Description | Mini-Com, Horizontal, Faceplate, 2 port,White |
| Product Type | Faceplate |
| Number of Ports | 2 |
| Module Type | Mini-Com |
| Sub Brand | Pan-Net |
| Material | ABS |
| Color | White |
| Identification Type | Adhesive Label |
| Outlet Orientation | Flat |
| Overall Width (In.) | 4.5 |
| Overall Width (mm) | 114.3 |
| Overall Depth (In.) | 0.68 |
| Overall Depth (mm) | 17.27 |
| Overall Height (In.) | 2.75 |
| Overall Height (mm) | 69.85 |
| Gang Opening Type | Single Gang |
| Mount Orientation | Horizontal |
| Standards Met | RoHS Compliant |
Panduit - CFPH2WH - Package Information
| UPC | 07498368773 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0185 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1850 |
