Brand: Panduit
|
SKU:
251888

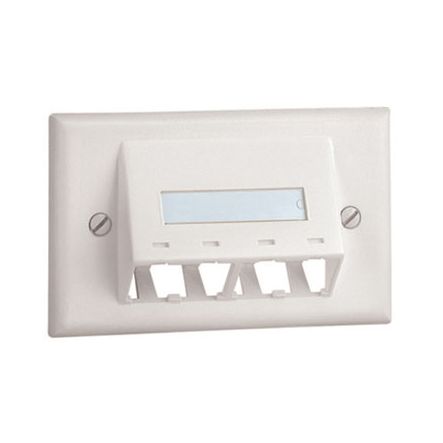

Panduit CFPHSL4IW | Faceplate, 4 Port, Classic, Sloped Horizontal, Off White
Regular price
$7.44
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CFPHSL4IW | Faceplate, 4 Port, Classic, Sloped Horizontal, ...
Regular price
$7.44
Unit price
Description
Description
Panduit CFPHSL4IW | Mini-Com, Horizontal, Classic, Sloped, Faceplate, 4 port, Off White
The Mini-Com Classic Series Faceplate accepts two Mini-Com Modules. The faceplate is sloped with horizontal orientation and mounts to a NEMA standard single gang opening. The faceplate includes a label pocket for easy identification and is off white.
Panduit - CFPHSL4IW - Features
- Compliments modern office workspace
- Individual modules snap in and out
- Specification Description
- 4-Port Faceplate
- Style: Sloped
- Color: Off White
- Number Of Ports: 4
- Faceplate Size: Single Gang
- Material: ABS
- Label Type: Label Pocket
- Mount Orientation: Horizontal
- Dimension: 2.75 Inch Height x 4.5 Inch Width x 1.07 Inch Depth (69.8 mm x 114.3 mm x 27.1 mm)
Specifications
Specifications
Panduit - CFPHSL4IW - Product Categories
- Copper Systems
- Faceplates & Adapters
Panduit - CFPHSL4IW - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFPHSL4IW |
| Item Description | Mini-Com, Horizontal, Classic, Sloped, Faceplate, 4 port, Off White |
| Product Type | Faceplate |
| Number of Ports | 4 |
| Module Type | Mini-Com |
| Sub Brand | Pan-Net |
| Material | ABS |
| Color | Off White |
| Identification Type | Label Pocket |
| Outlet Orientation | Sloped |
| Overall Width (In.) | 4.5 |
| Overall Width (mm) | 114.3 |
| Overall Depth (In.) | 1.07 |
| Overall Depth (mm) | 27.17 |
| Overall Height (In.) | 2.75 |
| Overall Height (mm) | 69.85 |
| Gang Opening Type | Single Gang |
| Mount Orientation | Horizontal |
| Standards Met | RoHS Compliant |
Panduit - CFPHSL4IW - Package Information
| UPC | 07498378381 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0185 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1850 |
