Panduit CFPL1IWY | Mini-Com® Classic Faceplate
Description
Description
Classic series faceplates shall be available in 1, 2, 3, 4, 6-port single gang for vertical applications and 2 and 4-port single gang for horizontal applications. Classic series faceplates shall accept all Mini-Com modules for UTP, STP, fiber-optic, audio/video applications. Faceplates shall be available in a flush or sloped design, available with or without labels. Sloped design shall increase wall depth to improve the bend radius control.
Panduit PanNet Mini-Com Faceplate, Flat, Series: Classic, 1 Gangs, 1 Ports, Mini-Com Module, Vertical Mounting, ABS, Off White, 4.5 in H x 2.75 in W x 0.68 in D Dimensions
Keep your workspace organized with data and media connections in various configurations with our classic faceplate.

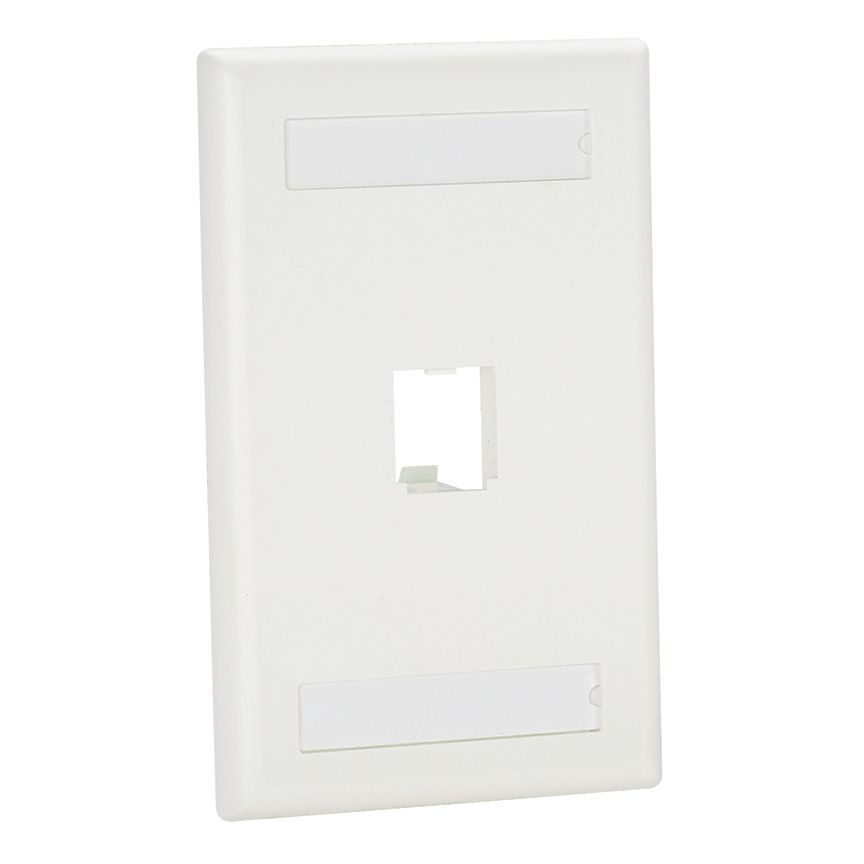

Mini Com Classic series single gang vertical faceplate accepts one Mini-Com Module, includes label and label cover. Off White
Panduit - CFPL1IWY - Features
- These small cables minimize waste, optimize cable management, speed deployment and improve flexibility and manageability
- Performance/construction - standard IL/standard fan out (singlemode)
- 24 in connector variant
- 12 fibers
- Modular accepts all Mini-Com modules which snap-in and out for easy moves, adds, changes
- Identification choice of adhesive labeling or dedicated label pocket for easy identification
- Various port densities provides design flexibility
- Sloped design allows proper bend radius control
- Icon slots provide data and voice identification on select faceplates
Specifications
Specifications
Panduit - CFPL1IWY - Specifications
| Color | White |
|---|---|
| Mounting | Flush Mount |
| Number Of Ports | 1 |
| UNSPSC Code | 43223300 |
| Technical Information | RoHS Compliant |
| Product Type | Faceplate |
| Number of Ports | 1 |
| Module Type | Mini-Com® |
| Sub Brand | Pan-Net® |
| Material | ABS |
| Color | Off White |
| Identification Type | Label Pocket |
| Outlet Orientation | Flat |
| Overall Depth (In.) | 0.68 |
| Overall Depth (mm) | 17.3 |
| Overall Width (In.) | 2.75 |
| Overall Width (mm) | 69.9 |
| Overall Height (In.) | 4.5 |
| Overall Height (mm) | 114.3 |
| Gang Opening Type | Single Gang |
| Mount Orientation | Vertical |
| Standards Met | RoHS Compliant |
| Part Features | Allows proper bend radius control, Provide data an voice identification on select faceplates and Provides design flexibility. |
| UPC | 61305623644 |
Panduit - CFPL1IWY - Package Information
| UPC | 61305623644 |
|---|---|
| Standard Packaging Quantity | 1 |
| Standard Packaging Volume (cf) | 0.0134 |
| Standard Ctn. Quantity | 10 |
| Standard Ctn. Volume (cf) | 0.1341 |
