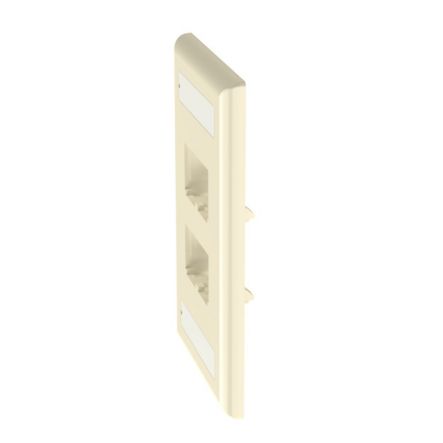

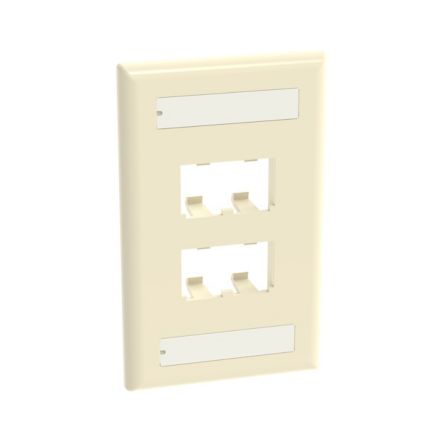

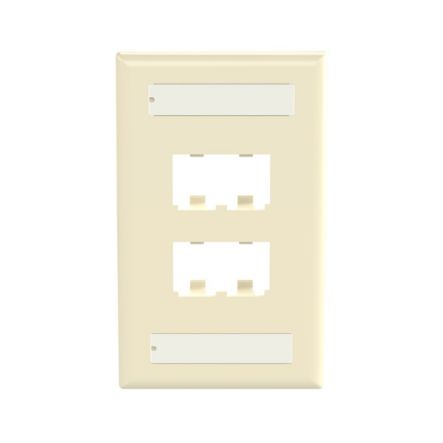

Panduit CFPL4EIY | Faceplate, 4 Port, Single Gang, Classic, Electri...
Regular price
$5.39
Unit price
Brand: Panduit
|
SKU:
224361
Regular price
$5.39
Unit price
Description
Description
Panduit CFPL4EIY | Mini-Com, Classic, Faceplate, 4 port, Electric Ivory
The Mini-Com Classic Series Faceplate accepts four Mini-Com Modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a label pocket for easy identification and is electric ivory.
Panduit - CFPL4EIY - Features
- Accept Mini-Com(TM) Modules for STP and UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Include label/label covers for easy port identification
- Replacement label/label covers available
Specifications
Specifications
Panduit - CFPL4EIY - Product Categories
- Copper Systems
- Faceplates & Adapters
Panduit - CFPL4EIY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFPL4EIY |
| Item Description | Mini-Com, Classic, Faceplate, 4 port, Electric Ivory |
| Product Type | Faceplate |
| Number of Ports | 4 |
| Module Type | Mini-Com |
| Sub Brand | Pan-Net |
| Material | ABS |
| Color | Electric Ivory |
| Identification Type | Label Pocket |
| Outlet Orientation | Flat |
| Overall Width (In.) | 2.75 |
| Overall Width (mm) | 69.85 |
| Overall Depth (In.) | 0.68 |
| Overall Depth (mm) | 17.27 |
| Overall Height (In.) | 4.5 |
| Overall Height (mm) | 114.3 |
| Gang Opening Type | Single Gang |
| Mount Orientation | Vertical |
| Standards Met | RoHS Compliant |
Panduit - CFPL4EIY - Package Information
| UPC | 07498303379 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1748 |
