Brand: Panduit
|
SKU:
330463

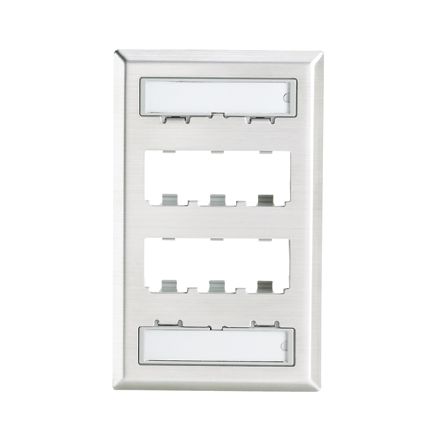

Panduit CFPL6SY | Faceplate, 6 Port, Single Gang, Classic, Stainless Steel
Regular price
$22.64
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CFPL6SY | Faceplate, 6 Port, Single Gang, Classic, Stainles...
Regular price
$22.64
Unit price
Description
Description
Panduit CFPL6SY | Mini-Com, Stainless Steel, Faceplate, with label 6 port
The Mini-Com Stainless Steel Faceplate accepts six Mini-Com Modules. The faceplate is single gang and mounts to a NEMA standard single gang opening. The faceplate includes a label pocket for easy identification and is made of impact resistant material to support installations in high traffic areas.
Panduit - CFPL6SY - Features
- Accept Mini-Com(TM) Modules for STP and UTP, fiber optic, and audio/video, which snap in and out for easy moves, adds, and changes
- Include label/label covers for easy port identification; replacement label/label covers available
- Impact resistant 304 stainless steel suitable for light industrial environments
Specifications
Specifications
Panduit - CFPL6SY - Product Categories
- Copper Systems
- Faceplates & Adapters
Panduit - CFPL6SY - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFPL6SY |
| Item Description | Mini-Com, Stainless Steel, Faceplate, with label 6 port |
| Note | Requires Minimum 1.9 wide in-wall box. |
| Product Type | Faceplate |
| Number of Ports | 6 |
| Module Type | Mini-Com |
| Sub Brand | Pan-Net |
| Material | Stainless Steel |
| Color | Metallic |
| Identification Type | Label Pocket |
| Outlet Orientation | Flat |
| Overall Width (In.) | 2.76 |
| Overall Width (mm) | 70.1 |
| Overall Depth (In.) | 0.76 |
| Overall Depth (mm) | 19.3 |
| Overall Height (In.) | 4.51 |
| Overall Height (mm) | 114.55 |
| Gang Opening Type | Single Gang |
| Mount Orientation | Vertical |
| Standards Met | RoHS Compliant |
Panduit - CFPL6SY - Package Information
| UPC | 07498303394 |
|---|---|
| Standard Pkg. Qty. | 1 |
| Standard Package Volume (cf) | 0.0175 |
| Standard Ctn. Qty. | 10 |
| Standard Ctn. Volume (cf) | 0.1755 |
