Brand: Panduit
|
SKU:
170164

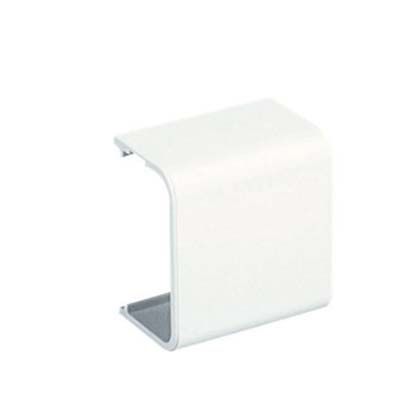

Panduit CFX10IG-X | Surface Raceway, LD10 / LDPH10 Coupler, Pwr Rated, Int. Gray
Regular price
$33.95
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit CFX10IG-X | Surface Raceway, LD10 / LDPH10 Coupler, Pwr Rat...
Regular price
$33.95
Unit price
Description
Description
Panduit CFX10IG-X | Surface Raceway, LD10 / LDPH10 Coupler, Pwr Rated,Int. Gray
Our power-rated coupler fitting provides a seamless connection between two power rated single channel raceway sections.
Coupler fitting for use with LD10, LDPH10, and LD2P10 raceway, International Gray, ABS, Length 1.24 in.
Panduit Pan-Way Coupler Fitting, Power Rated, For Use With: Pan-Way LD10, LDPH10 and LD2P10 Series Raceway, Snap-On Mount, ABS, International Gray, 31.5 mm L x 1.62 in W x 23.6 mm H
Panduit - CFX10IG-X - Features
- 1 in bend radius control fittings cables in the raceway will satisfy the minimum 1 in bend radius requirement, preventing the potential degradation of cable performance
- 1-piece hinged design cables can be laid into the raceway, speeding installation and preventing damage to cables
- Adhesive backing full length adhesive strip allows easy tool free installation and works well for temporary mounting
- Multi-channel fittings for LD2P10 are designed to maintain the TIA/EIA-568-B and 569-B required minimum bend radius for high performance copper and fiber optic cabling systems
Specifications
Specifications
Panduit - CFX10IG-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | CFX10IG-X |
| Color | Grey |
| Components | Fittings |
| Type | Non-Metallic |
| UNSPSC Code | 39131709 |
| Product Type | Power Rated Fitting |
| Sub Brand | Pan-Way |
| Color | International Gray |
| Fitting Type | Coupler |
| For Use With | LD10, LDPH10 |
| Material | ABS |
| Mount Method | Snap-On |
| Raceway Type | Power Rated |
| Standards Met | UL94V-0, FT4, Meets TIA/EIA Standards, UL Listed / Compliant. |
| Overall Length (In.) | 1.24 |
| Overall Length (mm) | 31.5 |
| Overall Width (In.) | 1.62 |
| Overall Width (mm) | 41.1 |
| Overall Height (In.) | 0.93 |
| Overall Height (mm) | 23.6 |
| Application | Surface Raceway Products Provide Maximum Flexibility for Routing, Protecting, and Concealing High-Performance Copper, Voice, Video, Fiber Optic, and Electrical Wiring within any Enterprise Environment to Provide an Innovative and Satisfying Office Environ |
| UPC | 07498353073 |
Panduit - CFX10IG-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 3923.29.0000 |
Panduit - CFX10IG-X - Videos
| Panduit CFX10IG-X Video 1 | Click to View |
|---|
